LNA

0.01~8GHz, Gain35dB, Noise figure2dB, P-1dB10dBm, SMA

  • DLNA8-0.01-8G-3281
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency0.01~8GHz
Gain35dB
Gain flatness±2dB
Noise figure23dB
VSWR2
P-1dB10dBm

Other parameters

ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12~15V
Working current300mA
Reverse isolation50dB
Operation Temp.-40~+70℃ Design assurance
DC powerPowered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture)

Typical test curve

FrequencyS11S22GAINP-1PSATNF
0.012.331.5337.4817.318.92.81
0.651.231.1538.6617.518.91.34
1.291.491.0438.11718.81.67
1.941.81.0637.6617.118.71.68
2.581.821.2337.3517.518.418.3
3.221.581.3937.2817.318.11.61
3.861.361.1937.5916.717.51.63
4.511.071.1339.331616.71.64
5.151.421.5339.8315.416.61.61
5.791.911.6338.5215.316.91.9
6.432.191.738.1415.617.61.69
7.071.891.4938.2615.918.11.97
7.721.81.7538.6515.918.21.91
8.361.431.7139.1715.117.82.34
923.662.0937.8315.417.32.66

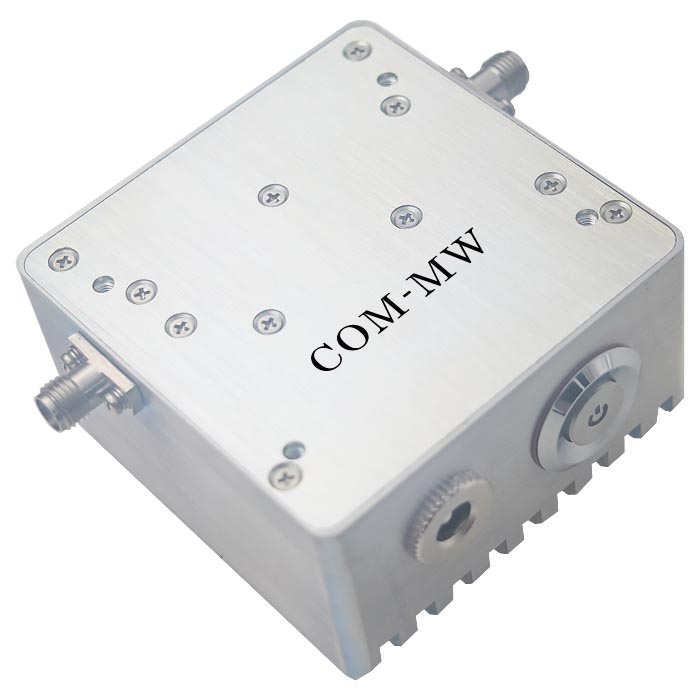

Reference picture

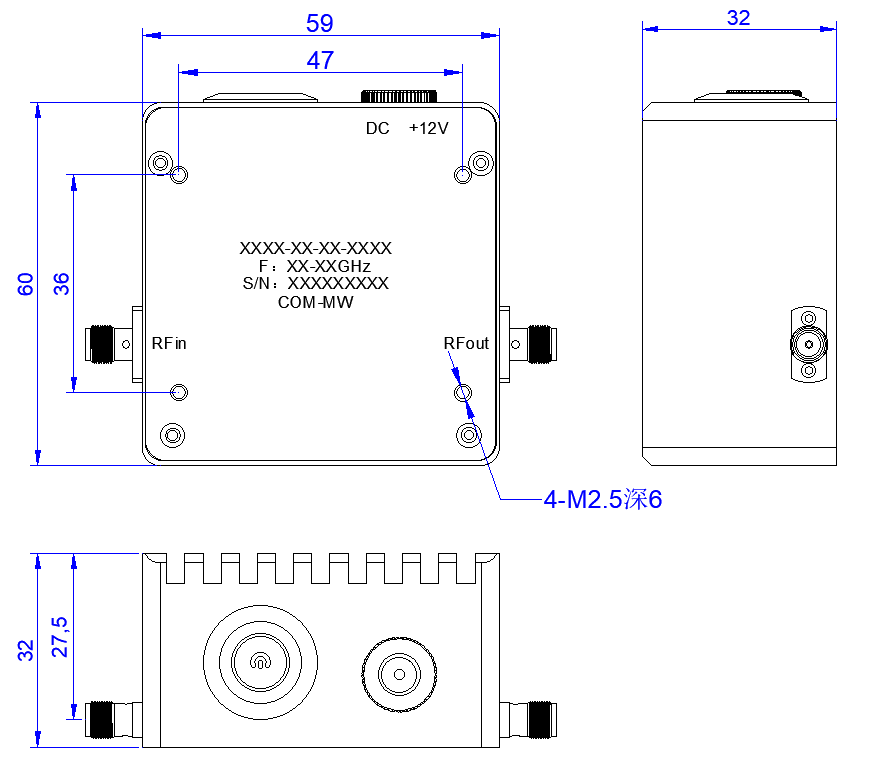

Configuration(mm)

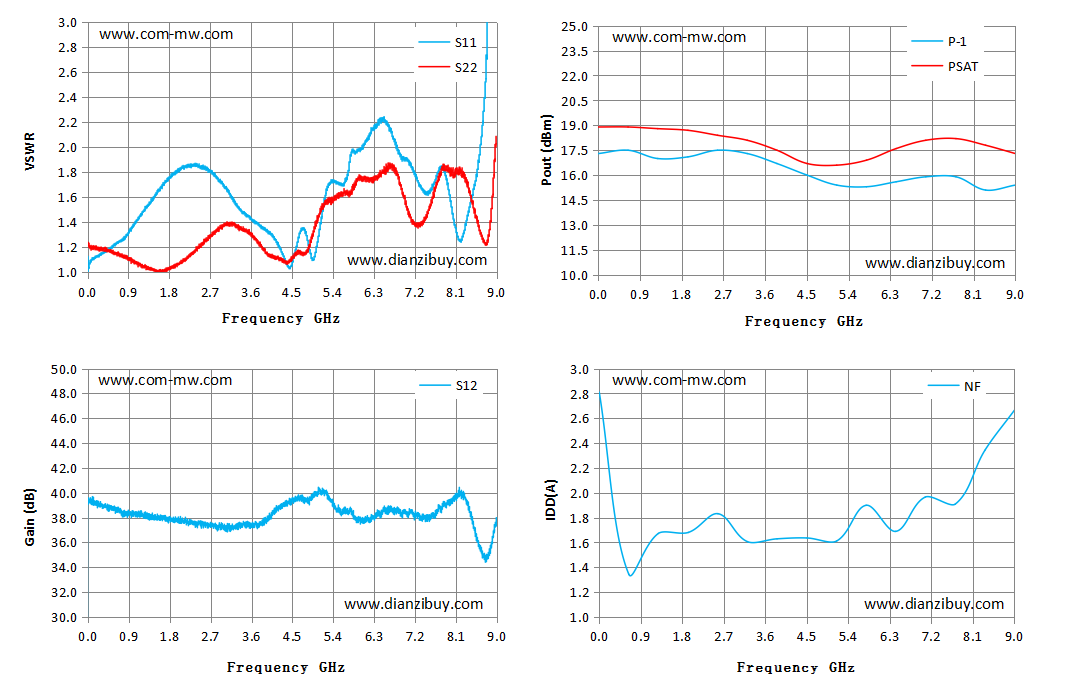

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.
