LNA
0.009~2000MHz, Gain30dB, Noise figure2.5dB@1Ghz, P-1dB10dBm, N, N
- DLNA8-0.009-2000-9666
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 2000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 2.5 | dB@1Ghz | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm | ||
| Clipping level | 16 | dBm |
Other parameters
| Input port | N -M or J |
| Output port | N -F or K |
| Connector material | Stainless steel |
| Power Capacity | 10W |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+60℃ Design assurance |
| ESD electrostatic protection | possess |
| Cooling teeth | possess |
| Other | Noise factor=Input Signal to Noise Ratio/Output Signal to Noise Ratio |
Typical test data
| Frequency | S11 | S22 | GAIN | NOISE | P-1 |
| GHz | VSWR | VSWR | dB | dB | dB |
| 0.01 | 1.23 | 1.23 | 34.35 | 2.22 | 16.1 |
| 0.16 | 1.62 | 1.33 | 37.36 | 0.86 | 16.03 |
| 0.31 | 1.55 | 1.44 | 37.44 | 1.02 | 16 |
| 0.47 | 1.46 | 1.56 | 37.51 | 0.96 | 16.05 |
| 0.63 | 1.38 | 1.62 | 37.48 | 0.76 | 16.22 |
| 0.79 | 1.36 | 1.56 | 37.30 | 0.97 | 16.15 |
| 0.94 | 1.37 | 1.45 | 37.04 | 1.16 | 16.14 |
| 1.10 | 1.36 | 1.34 | 36.76 | 1.09 | 15.93 |
| 1.26 | 1.31 | 1.27 | 36.57 | 1.09 | 16.04 |
| 1.41 | 1.23 | 1.27 | 36.39 | 1.07 | 16.1 |
| 1.57 | 1.16 | 1.32 | 36.29 | 1.23 | 15.88 |
| 1.73 | 1.20 | 1.38 | 36.14 | 1.28 | 15.65 |
| 1.89 | 1.35 | 1.44 | 36 | 1.36 | 15.41 |
| 2.04 | 1.53 | 1.47 | 35.83 | 1.41 | 14.71 |
| 2.2 | 1.71 | 1.45 | 35.66 | 1.48 | 14.22 |
Reference picture

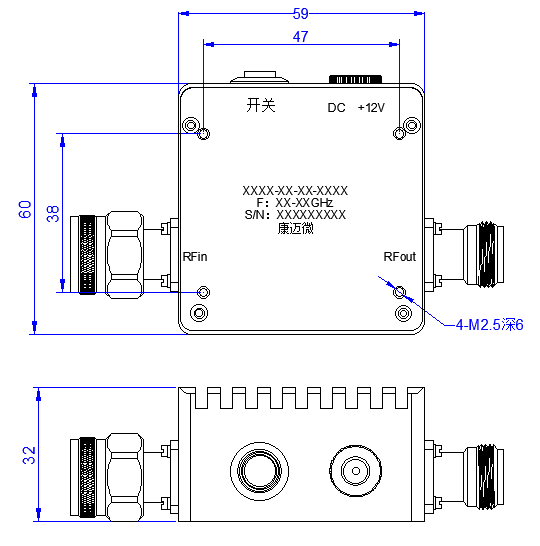

Configuration(mm)

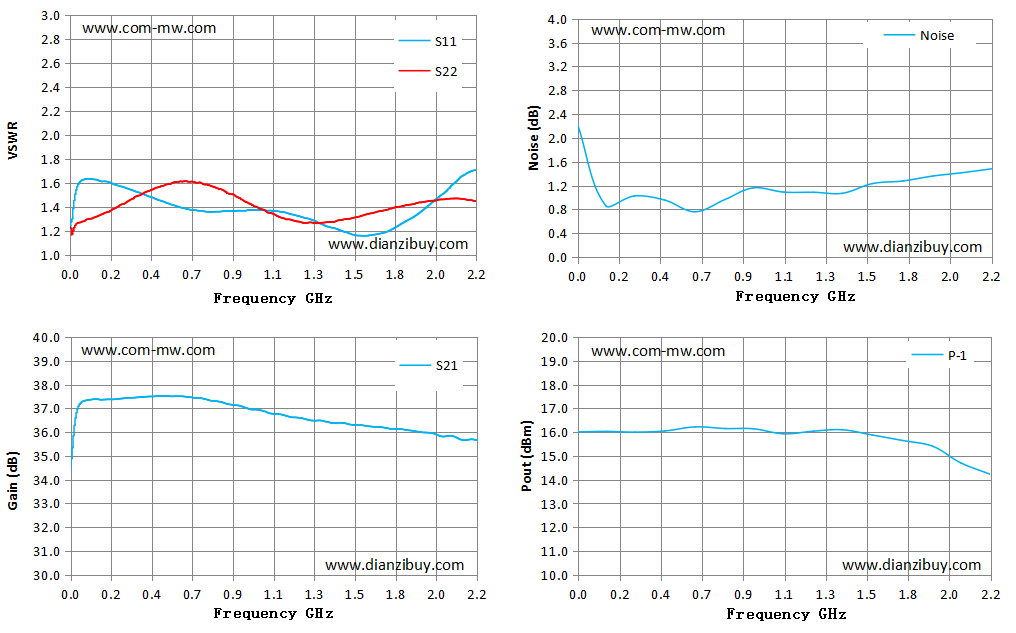

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
