Power amplifier
400~450MHz, Gain40dB, Psat40dBm, TNC, N
- DPA8-400-450-3989
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 450 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| VSWR | 2.5 | |||
| Psat | 40 | dBm |
Other parameters
| Input port | TNC-F |
| Output port | N -F |
| Connector material | Stainless steel |
| Surface | Black |
| Working voltage | +28V |
| Working current | 1900mA |
| Operation Temp. | -40~+60℃ Design assurance |
| Other | IP67 |

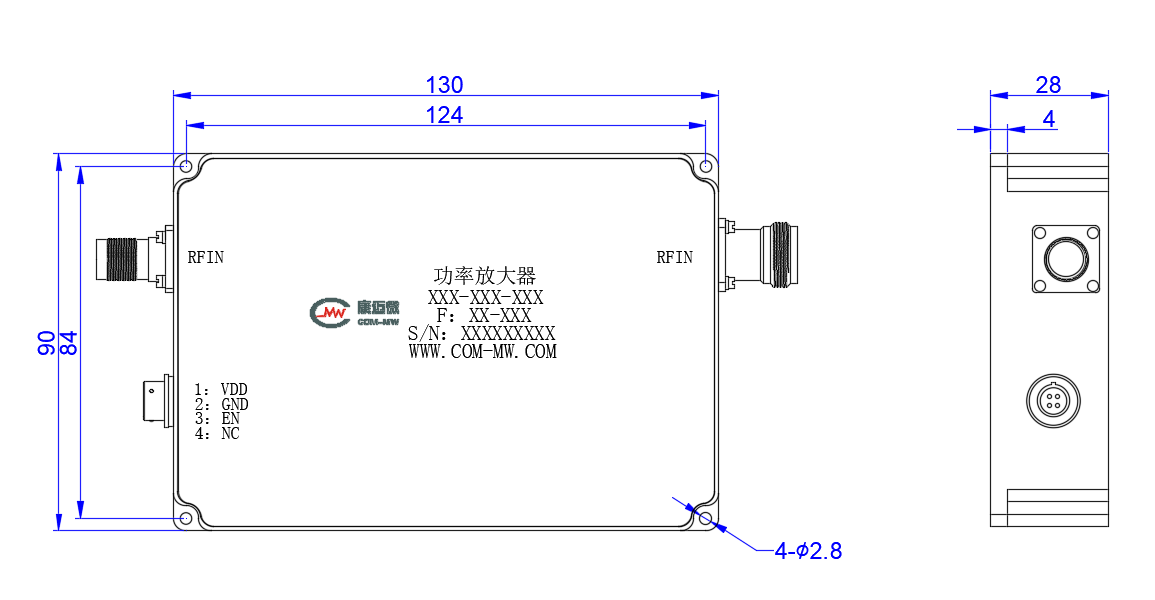

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
