LNA
30~1000MHz, Gain30dB, Noise figure1.4dB, P-1dB15dBm, SMA
- DLNA-30-1000-01
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 1000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 1.4 | 2 | dB | |
| VSWR | 2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | S21 P-1dB | 25 ℃ noise |
| 10 | 1.72 | 1.23 | 35.86 | 21 | 2.21 |
| 95 | 1.1 | 1.75 | 33.58 | 20.4 | 1.42 |
| 180 | 1.06 | 1.71 | 33.48 | 20.5 | 0.95 |
| 265 | 1.05 | 1.61 | 33.48 | 20.7 | 0.93 |
| 350 | 1.02 | 1.54 | 33.5 | 20.4 | 0.95 |
| 435 | 1.07 | 1.46 | 33.62 | 20.5 | 0.88 |
| 520 | 1.13 | 1.37 | 33.67 | 20.5 | 0.93 |
| 605 | 1.21 | 1.29 | 33.65 | 20.5 | 0.88 |
| 690 | 1.31 | 1.25 | 33.67 | 20.5 | 0.91 |
| 775 | 1.42 | 1.23 | 33.62 | 20.5 | 0.96 |
| 860 | 1.57 | 1.25 | 33.42 | 20.3 | 1.08 |
| 945 | 1.72 | 1.3 | 33.27 | 20.6 | 1.37 |
| 1030 | 1.76 | 1.34 | 32.86 | 20.7 | 1.22 |
| 1115 | 1.83 | 1.39 | 32.85 | 20.5 | 1.27 |
| 1200 | 1.93 | 1.42 | 32.6 | 20.4 | 1.25 |
Reference picture
Configuration(mm)

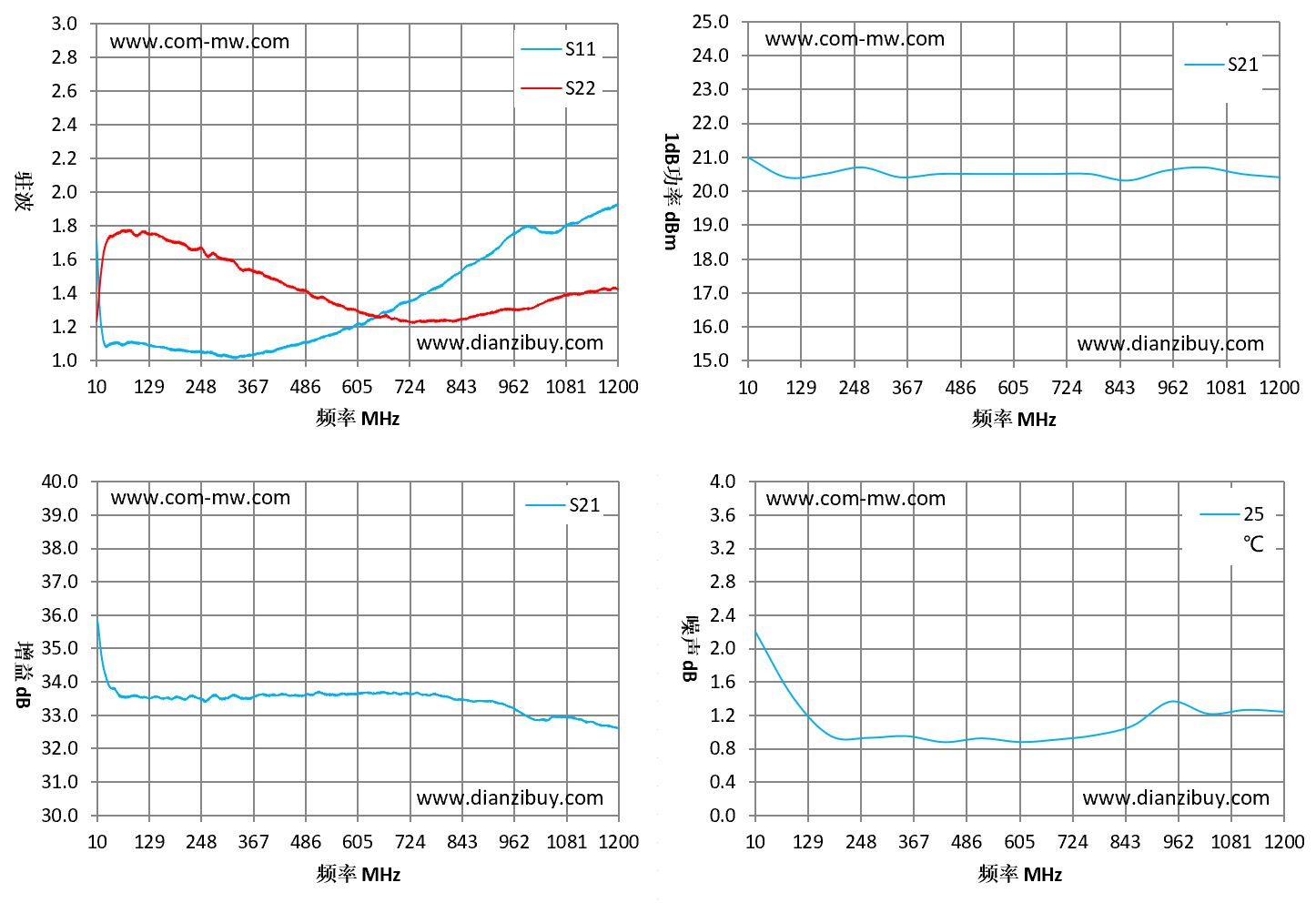

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
