LNA
0.01~1000MHz, Gain50dB, Noise figure2.5dB, P-1dB15dBm, SMA
- DLNA8-0.01-1000-2085
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units | |
| Frequency | 0.01 | ~ | 1000 | MHz | |
| Gain | 50 | dB | （51±1.5dB@100MHz） | ||
| Gain flatness | ±1 | dB | ±0.5@0.5- 800MHz | ||
| Noise figure | 2.5 | dB | 1.8dB@10-500MHz | ||
| VSWR | 2.5 | 300kHz - 1GHz | |||
| P-1dB | 15 | dBm | |||
| Max input power | -36 | dBm | |||
| Harmonic Rejection | -55 | dBc | Output 0dBm @200MHz | ||
| IP3 | 28 | dBm | 300MHz | ||
| Reverse isolation | 50 | dB | 20kHz - 1GHz |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Operation Temp. | -30~+70℃ Design assurance |
| Power supply method 1 | 220V power supply, standard AC interface, 12-15V/5W output |
| Power supply method 2 | 10 units, battery number 5 |
| Power supply method 3 | DC power supply, interface 2.5mm (inner aperture) |

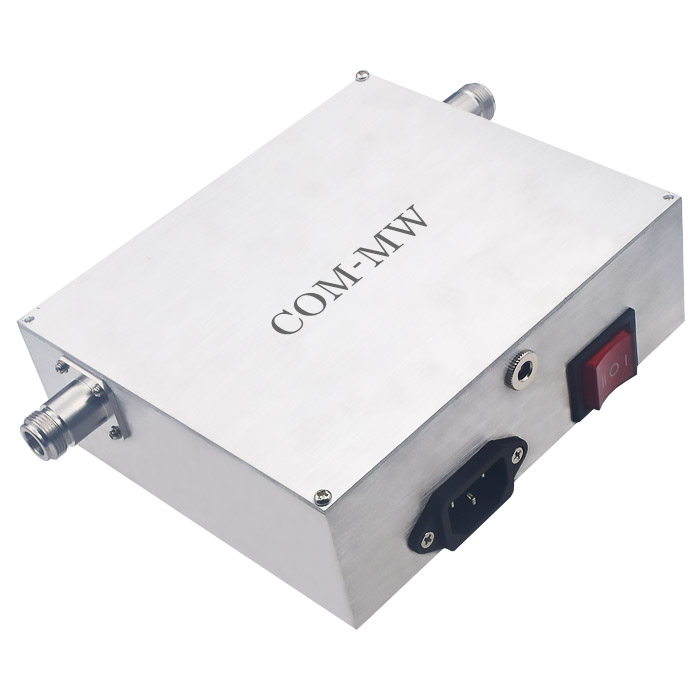

Reference picture

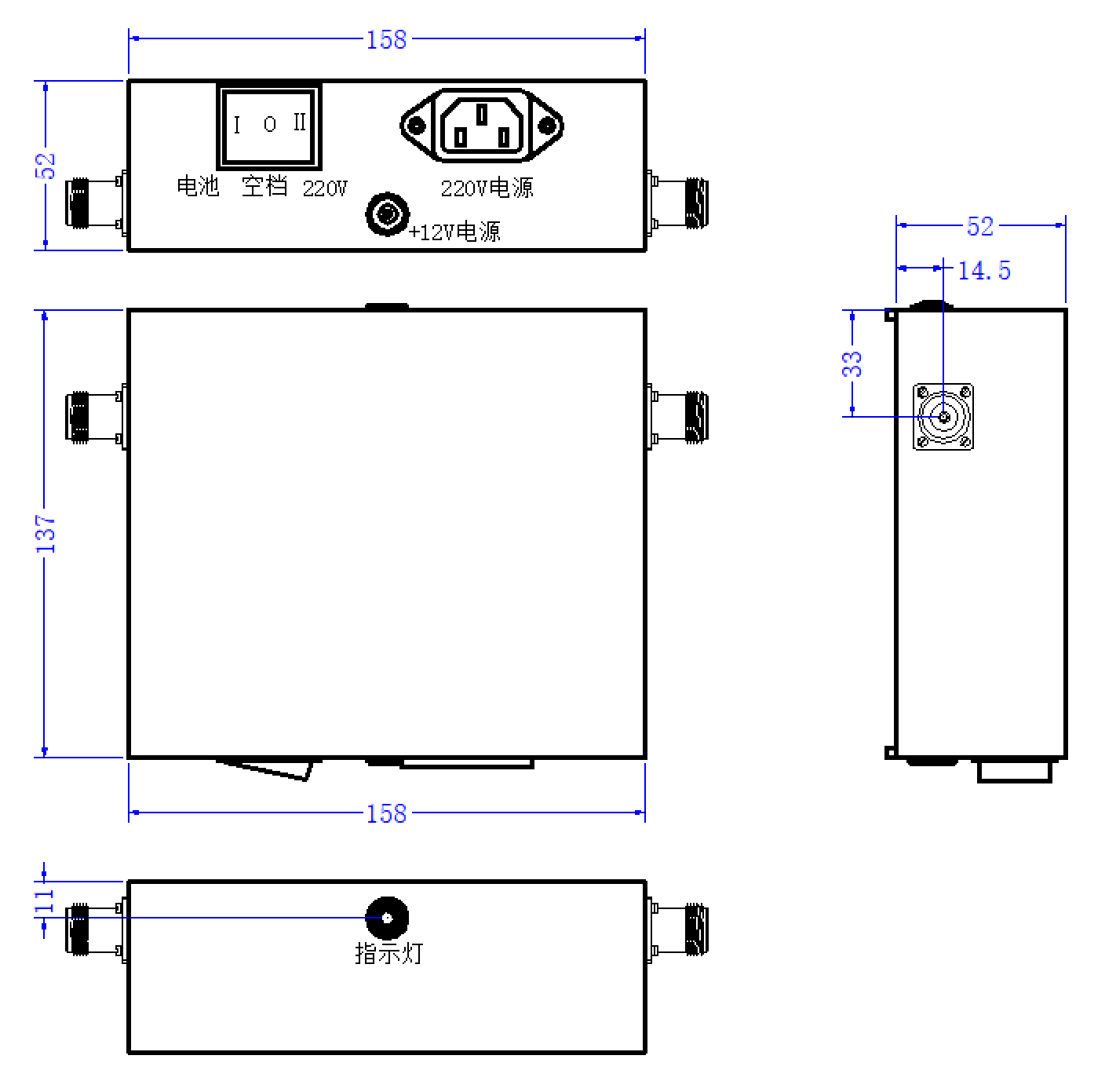

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
