LNA
10~6000MHz, Gain18, Noise figure4.3, SMA, Input limiting protection
- DLNA8-0.009-6000-2540
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 6000 | MHz |
| Gain | 18 | 20 | dB | |
| Gain flatness | ±2 | dB | ||
| Noise figure | 3.9 | 4.3 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 8 | dBm | ||
| Clipping level | 13 | dBm | ||
| Max input power | 10 | W |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Input limiting protection |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | Gain | Noise | P-1dB |
| 0.01 | 1.96 | 2.06 | 19.94 | 2.77 | 9.51 |
| 0.43 | 1.91 | 1.62 | 21.8 | 2.9 | 11.4 |
| 0.86 | 1.55 | 1.48 | 22.18 | 2.58 | 11.3 |
| 1.29 | 1.46 | 1.34 | 22.21 | 3.21 | 10.1 |
| 1.71 | 1.78 | 1.29 | 21.78 | 3.1 | 9.05 |
| 2.14 | 2.16 | 1.43 | 21.48 | 3.52 | 8.5 |
| 2.57 | 2.36 | 1.61 | 21.33 | 3.38 | 8.57 |
| 3 | 2.32 | 1.77 | 21.37 | 3.29 | 8.7 |
| 3.43 | 2.24 | 1.88 | 21.42 | 3.51 | 10.1 |
| 3.86 | 2.19 | 1.94 | 21.21 | 3.32 | 11.4 |
| 4.29 | 2.09 | 1.87 | 21.01 | 3.75 | 12 |
| 4.71 | 1.96 | 1.72 | 20.75 | 3.6 | 11.6 |
| 5.14 | 1.83 | 1.48 | 20.47 | 3.89 | 11 |
| 5.57 | 1.73 | 1.22 | 20.09 | 4.08 | 10.57 |
| 6 | 1.65 | 1.02 | 19.52 | 4.1 | 10 |
Reference picture
Configuration(mm)

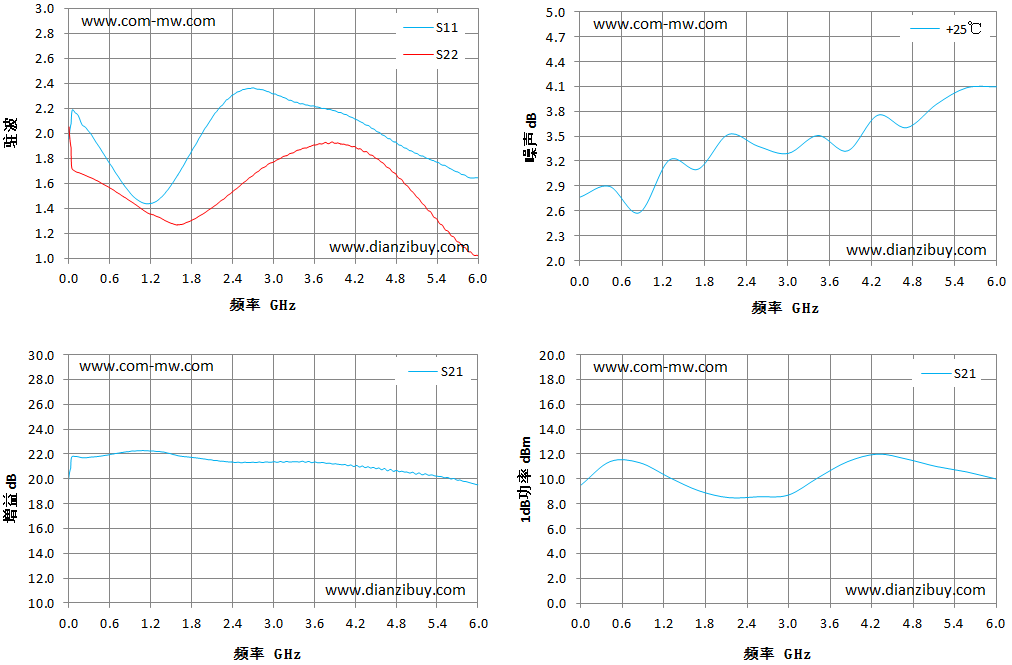

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
