Dipole antenna
Frequency20~100MHz, Gain-7dBi, Linear polarization, N
- ZOJ7-20-100-1399
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
An omnidirectional antenna, that is, it shows uniform radiation in 360° on the horizontal pattern, which is commonly referred to as non-directional, and appears as a beam with a certain width on the vertical pattern. In general, the smaller the lobe width, The greater the gain. This type of antenna has simple structure, small size, light weight and wide coverage.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20 | ~ | 100 | MHz |
| Gain | -7 | dBi | ||
| VSWR | 3.5 |
Other parameters
| Polarization | Linear polarization |
| Power | 100W Design assurance |
| Connector | N-K |
| Outline size | 3150*1000*100mm |
| Estimated weight | 3.5Kg |
| Surface | Grey |
| Work Temp. | -25~+55℃ Design assurance |

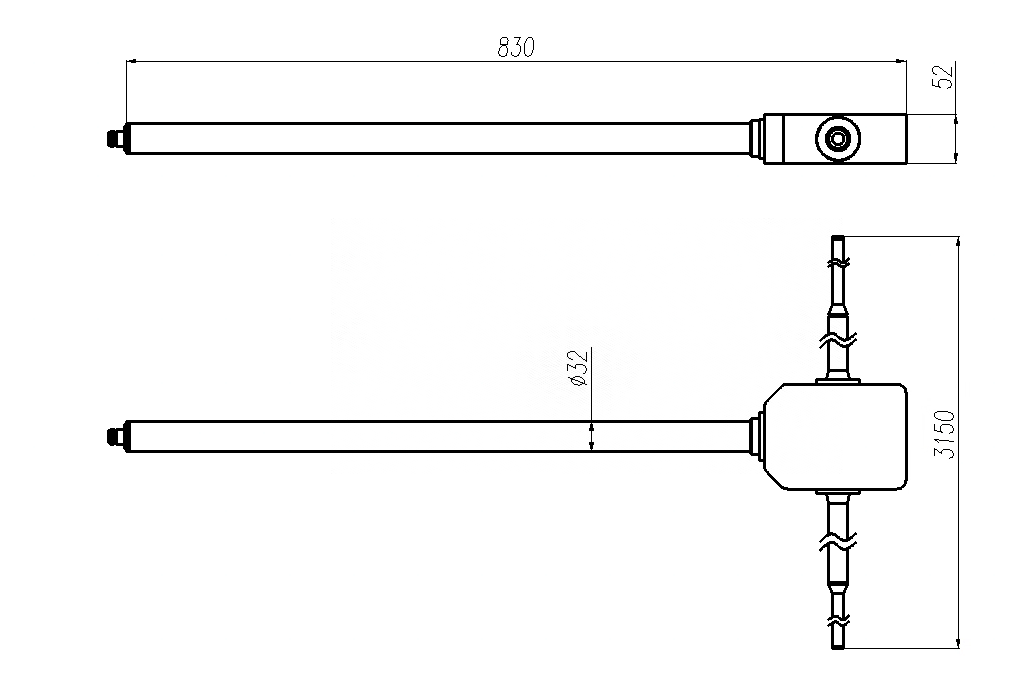

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

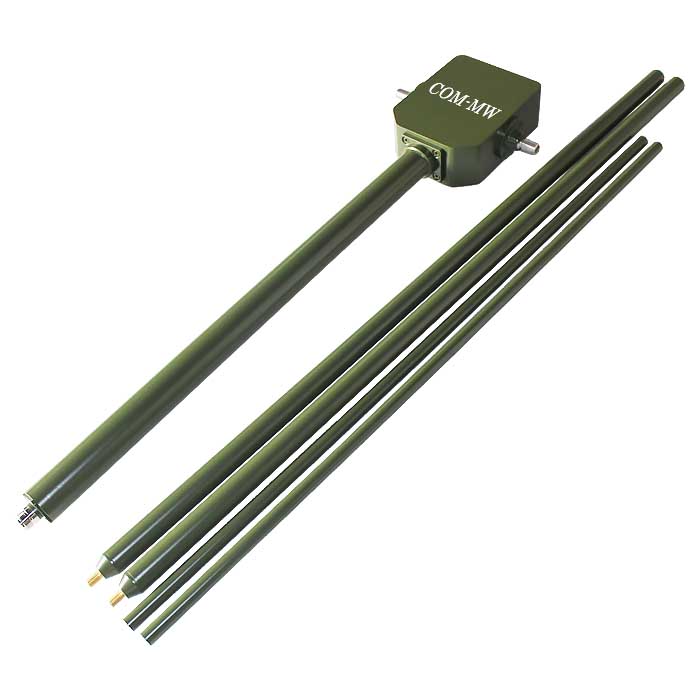

Reference picture
