LNA

0.1~18GHz, Gain25dB, Noise figure3dB, P-1dB25dBm, Psat27dBm, SMA

  • DLNA8-0.1-18G-2971
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency0.1~18GHz
Gain25dB
Gain flatness±3dB
Noise figure3dB
VSWR2.5
P-1dB25dBm
Psat27dBm
Max input power10dBm

Other parameters

ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current700mA
Operation Temp.-40~+65℃ Design assurance

Typical test data

FrequencyS11S22GAINNFP-1PSAT
GHzVSWRVSWRdBdBdBmdBm
0.12.141.8431.815.3726.229.8
1.451.351.429.052.4226.830
2.81.211.0630.72.1426.730.4
4.151.731.5130.782.1927.831.3
5.51.281.6730.722.2630.431.6
6.851.221.5130.712.2928.430.4
8.21.261.4729.642.4727.728.9
9.551.321.5529.442.728.129.6
10.91.421.0529.312.6928.830.1
12.251.461.1929.292.6928.929.7
13.61.241.3430.142.6428.729.4
14.951.131.2129.52.6927.928.8
16.31.341.4128.72.927.328.1
17.651.41.327.913.082627.5
191.341.4425.053.5925.226.4

Reference picture

Configuration(mm)

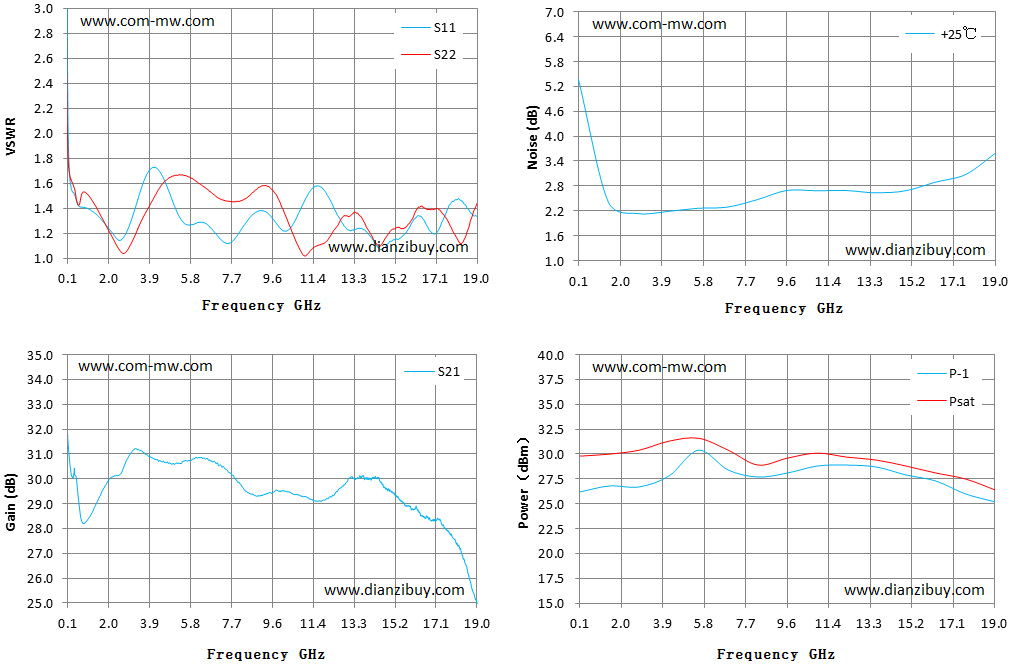

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
