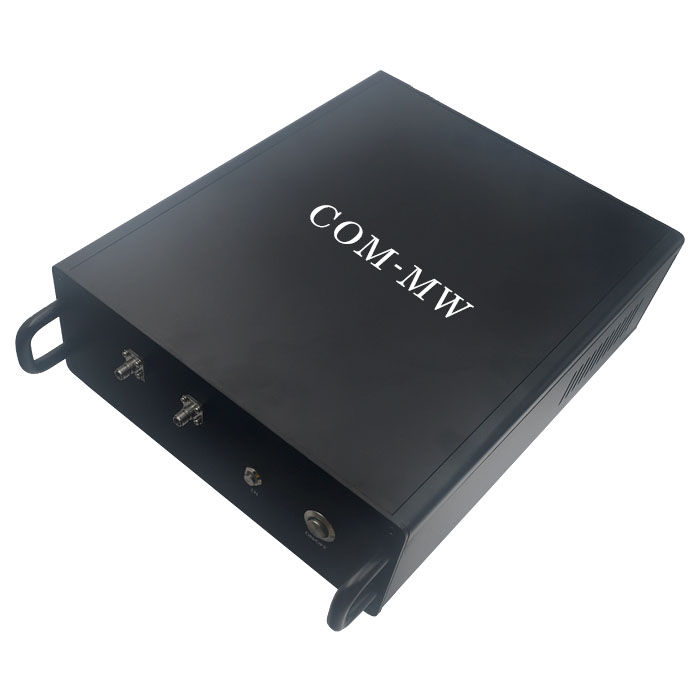

Power amplifier
Frequency1000~18000MHz, Gain30, Psat30dBm, Adapter power supply
- DPA8-1-18G-9576
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 18000 | MHz |
| Gain | 30 | 35 | dB | |
| Gain flatness | ±2.5 | dB | ||
| Input VSWR | 1.8 | |||
| Psat | 30 | 35 | dBm | |
| phase noise degradation | 3 | dBm |
Product Application
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Operation Temp. | -20~+40℃ Design assurance |
| Characteristic | Adapter power supply |
Port Definition
| Port identification | definition | Illustrate |
| DC | DC power input | 24V@3A适配器供电，插孔5.5*2.1，兼容5.5*2.5 |
| GND | GND | |
| ON/OFF | Power switch | |
| EN | Enable control switch |
上电顺序
Parts list
| 1 | Standard configuration | Equipped with a power adapter |
Reference picture

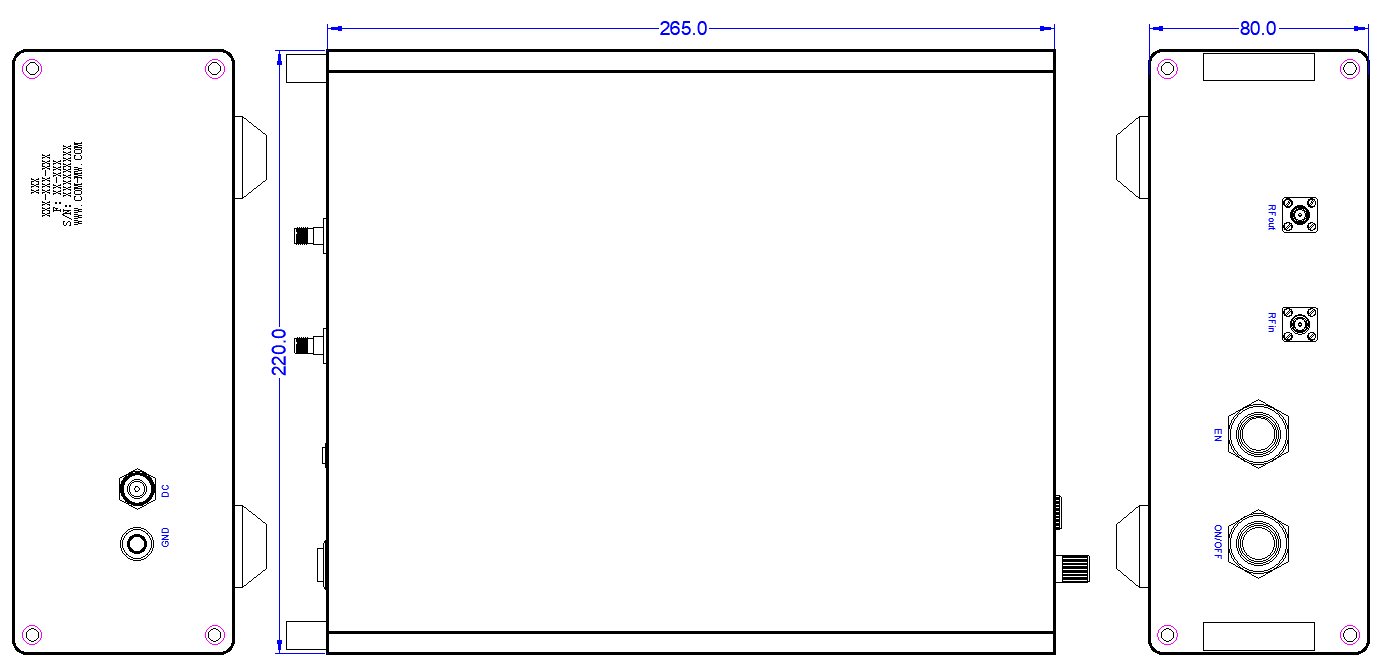

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | Please strictly follow the power-on sequence when applying power, and reverse the operation when turning off the power. |
