LNA
2000~4000MHz, Gain35dB, Noise figure1.5dB, P-1dB15dBm, SMA
- DLNA8-2-4G-3477
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2000 | ~ | 4000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | 3 | 4 | dB | |
| Noise figure | 1.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| OIP3 | 20 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 55dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F MHz | S11 VSWR | S22 VSWR | GaindB | NdB | P-1dBm |
| 1000 | 1.81 | 1.45 | 30.64 | 1.04 | 12.56 |
| 1285.71 | 1.36 | 1.27 | 35.99 | 1.04 | 17.66 |
| 1571.43 | 1.19 | 1.1 | 38.47 | 0.89 | 18.36 |
| 1857.14 | 1.4 | 1.04 | 38.98 | 0.84 | 18.27 |
| 2142.86 | 1.57 | 1.1 | 38.89 | 0.75 | 18.15 |
| 2428.57 | 1.65 | 1.07 | 38.77 | 0.85 | 17.85 |
| 2714.29 | 1.61 | 1.15 | 38.77 | 0.99 | 17.44 |
| 3000 | 1.42 | 1.26 | 39 | 0.79 | 17.03 |
| 3285.71 | 1.21 | 1.33 | 38.92 | 0.69 | 16.93 |
| 3571.43 | 1.05 | 1.27 | 38.12 | 0.86 | 16.59 |
| 3857.14 | 1.15 | 1.18 | 37.09 | 0.87 | 15.79 |
| 4142.86 | 1.26 | 1.31 | 36.77 | 0.92 | 15.61 |
| 4428.57 | 1.25 | 1.39 | 36.65 | 1.01 | 15.23 |
| 4714.29 | 1.24 | 1.2 | 36.36 | 1.05 | 14.39 |
| 5000 | 1.39 | 1.14 | 35.13 | 1 | 13.81 |

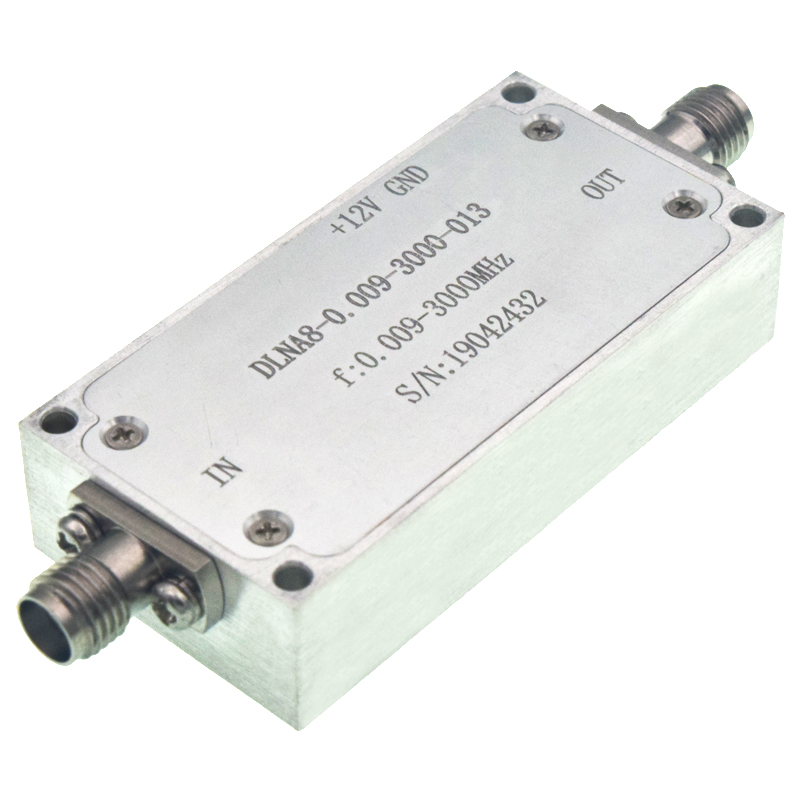

Reference picture
Configuration(mm)

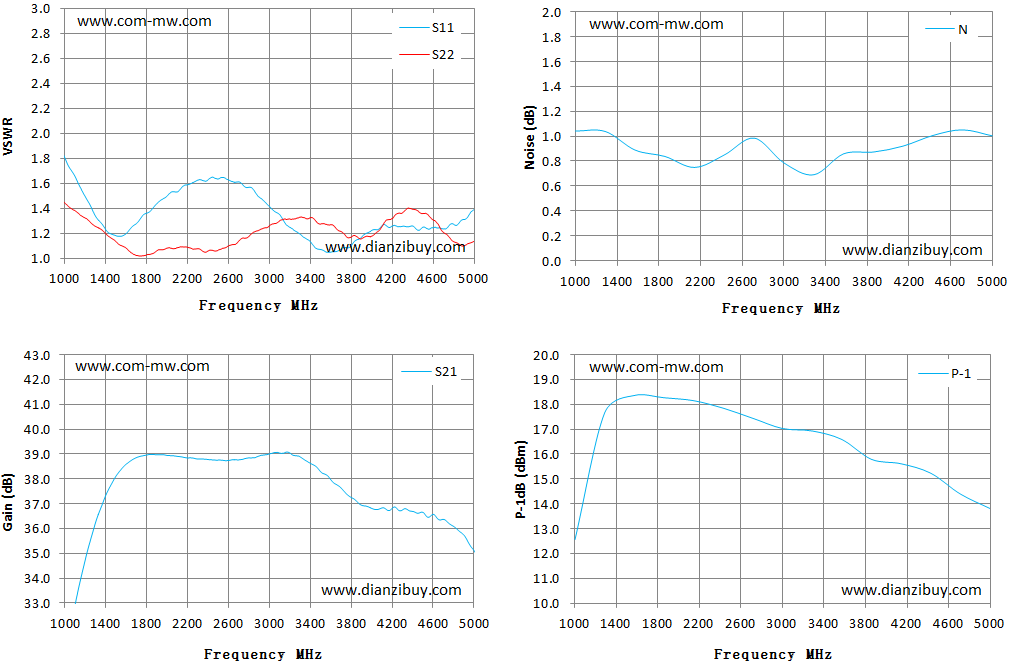

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
