Power amplifier
400~22000MHz, Gain40dB, Psat30dBm, SMA
- DPA8-0.4-22G-2032
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, detachable heat sink.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 22000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB@0.4~2G | ||
| Gain flatness | ±2.5 | dB@2~22G | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm | ||
| Harmonic Rejection | 15 | dBc | ||
| Max input power | 0 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +15V |
| Working current | 1000mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1 dBm | S21 Psat dBm | 二次谐波抑制 dbc | 三次谐波抑制 dbc |
| 0.20 | 1.48 | 1.59 | 50.75 | 27.92 | 33.60 | 31.10 | 20.30 |
| 1.90 | 1.31 | 1.49 | 46.72 | 32.00 | 33.40 | 28.60 | 16.50 |
| 3.60 | 1.57 | 1.21 | 44.59 | 32.16 | 32.80 | 22.30 | 15.80 |
| 5.30 | 1.17 | 1.05 | 44.06 | 32.65 | 32.90 | 24.20 | 16.60 |
| 7.00 | 1.40 | 1.20 | 44.56 | 31.27 | 32.00 | 28.80 | 15.80 |
| 8.70 | 1.34 | 1.51 | 44.39 | 30.56 | 31.18 | 21.90 | 18.30 |
| 10.40 | 1.33 | 1.37 | 44.14 | 31.46 | 32.10 | 23.50 | 24.40 |
| 12.10 | 1.40 | 1.55 | 44.03 | 31.58 | 32.82 | 18.70 | 21.80 |
| 13.80 | 1.29 | 1.79 | 44.28 | 30.41 | 31.72 | 23.50 | 48.50 |
| 15.50 | 1.92 | 2.39 | 43.78 | 29.46 | 30.90 | 17.90 | 37.70 |
| 17.20 | 1.61 | 1.97 | 44.37 | 29.87 | 31.51 | 18.30 | 35.50 |
| 18.90 | 2.05 | 1.94 | 44.36 | 31.04 | 31.80 | 24.20 | / |
| 20.60 | 1.37 | 1.40 | 43.88 | 30.87 | 31.56 | 29.20 | / |
| 22.30 | 1.13 | 2.04 | 42.48 | 28.52 | 30.03 | 28.90 | / |
| 24.00 | 2.57 | 2.80 | 39.07 | 24.92 | 27.45 | 27.40 | / |

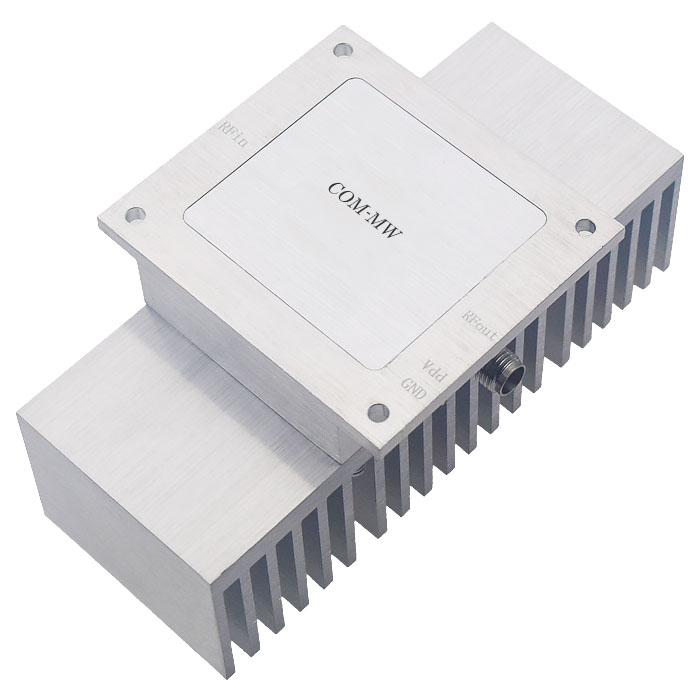

Reference picture

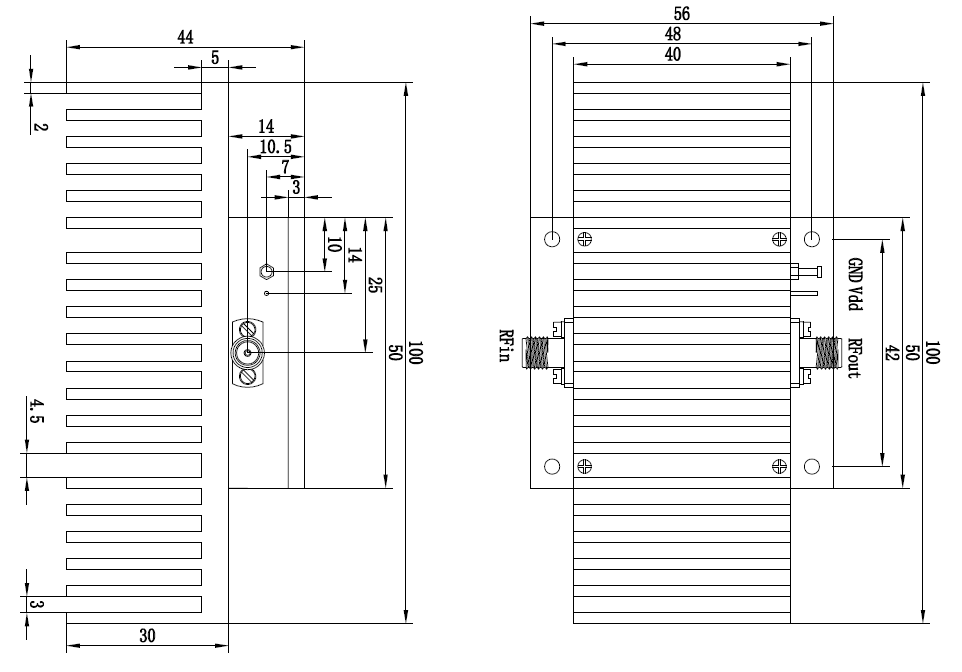

Configuration

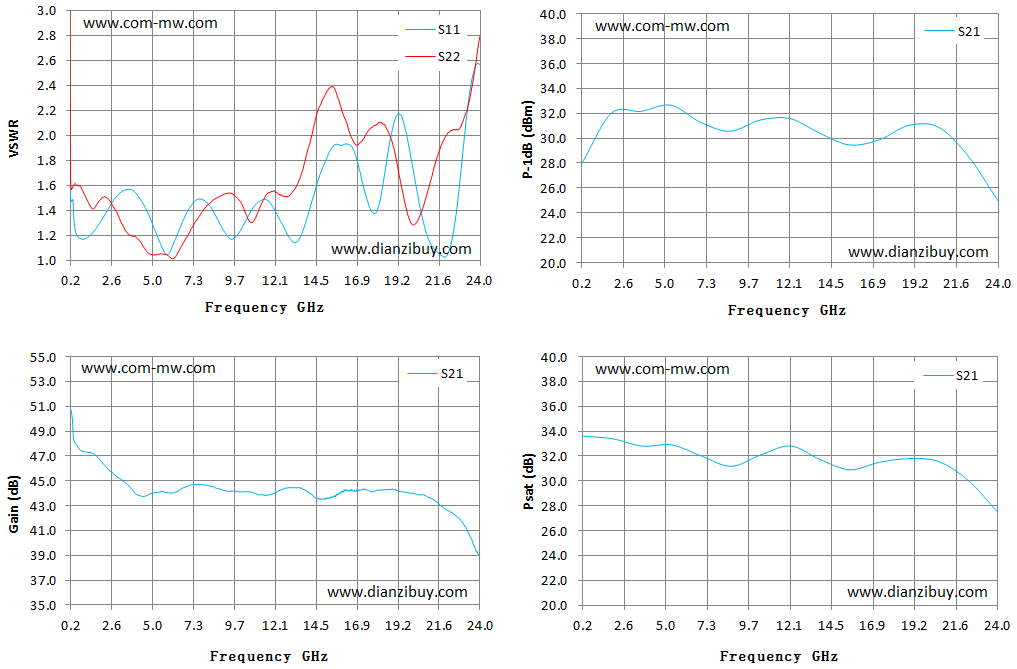

Typical test curve
