Power amplifier

400~8000MHz, Gain30dB, Noise figure2.2dB, P-1dB24dBm, SMA

  • DPA8-400-8000-3921
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnitsNote
Frequency400~8000MHz
Gain30dB
Gain flatness3dB
Noise figure2.23dB
VSWR1.82.2
P-1dB2224dBm
Signal leakage50dB
Spurious suppression70dBCRoom temperature test
Harmonic Rejection18dBCRoom temperature test
Reverse isolation68dBC
OIP330dBm

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12V
Working current400mA
Operation Temp.-30~+70℃ Design assurance
OtherMaximum input undamaged power: 10dBm

Typical test data

F（GHz）S11 SWRS22 SWRGain（dB）NF（dB）P-1dB OUT（dBm）P sat（dBm）
0.015.215.9227.016.9722.8823.5
0.721.711.1431.241.5225.126.5
1.441.151.2432.661.3424.9726.9
2.151.471.2833.281.2324.727
2.861.961.2633.271.5925.326.8
3.581.761.1933.081.2825.627.5
4.291.121.1132.711.625.527.5
5.011.711.1631.531.725.3527.3
5.721.521.3731.491.772526.4
6.431.221.532.461.724.726.2
7.151.311.5732.271.9524.325.7
7.861.941.6231.622.0924.525.6
8.572.141.5231.172.324.425.7
9.292.951.5529.412.824.725.8
105.191.5327.372.6524.725.4

Reference picture

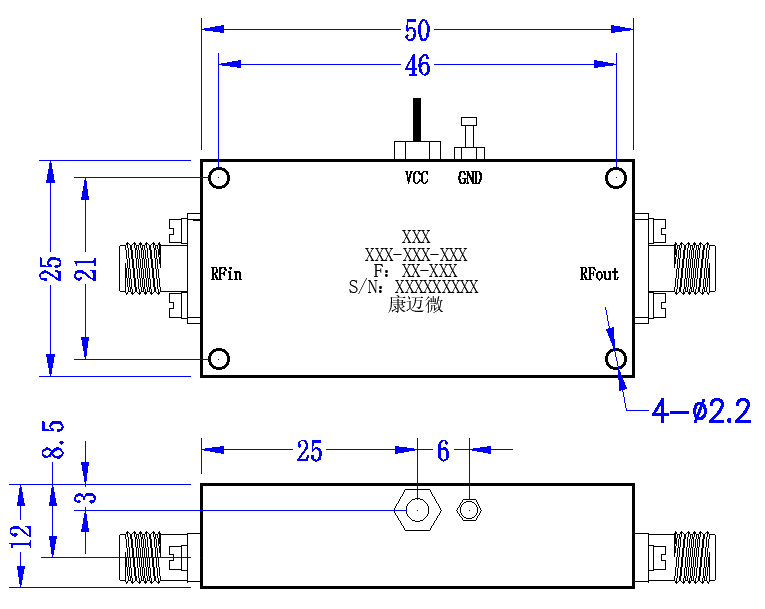

Configuration(mm)

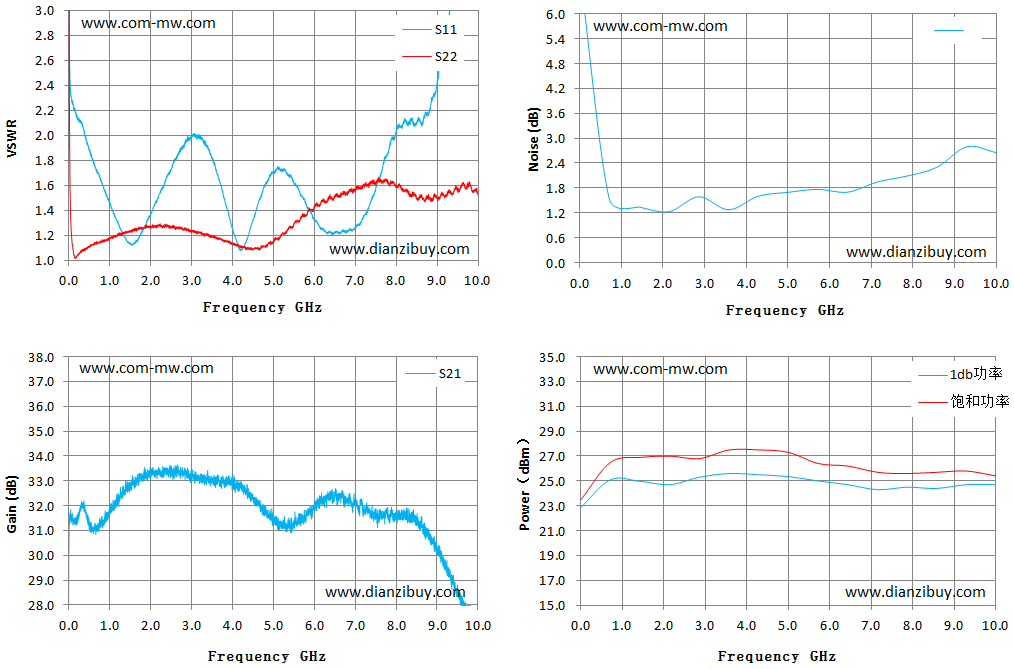

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
