LNA

0.03~15GHz, Gain30dB, Noise figure3dB, P-1dB13dBm, SMA

  • DLNA8-0.03-15G-2964
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Main specifications

ParametersMinTypicalMaxUnits
Frequency0.03~15GHz
Gain30dB
Gain flatness±2dB
Noise figure3dB
VSWR2
P-1dB13dBm
Max input power10dBm

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current200mA
Operation Temp.-30~+70℃ Design assurance
Storage Temp.-40~+85℃ Design assurance
Quality GradeIndustrial grade

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gainS21 NoiseP-1dB
0.031.351.4736.465.2913.11
1.171.151.3134.683.7413.38
2.311.091.3534.83.1214.09
3.451.151.1134.722.4714.42
4.591.231.1634.172.1614.15
5.731.331.1234.011.7613.5
6.871.351.0833.921.7913.1
8.021.241.2133.651.7813.24
9.161.091.2233.371.9713.37
10.31.371.133.142.2713.43
11.441.461.1633.12.4913.51
12.581.321.2533.342.8113.42
13.721.311.2633.442.6213.1
14.861.811.2332.6713.41
162.241.2732.173.0413.95

Reference picture

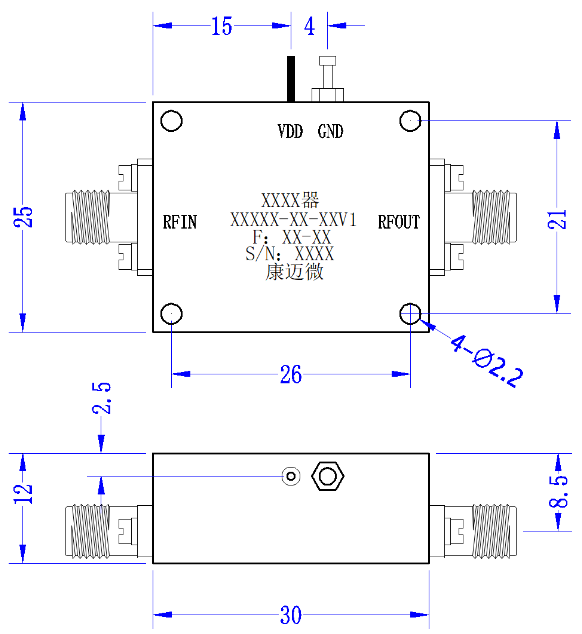

Configuration(mm)

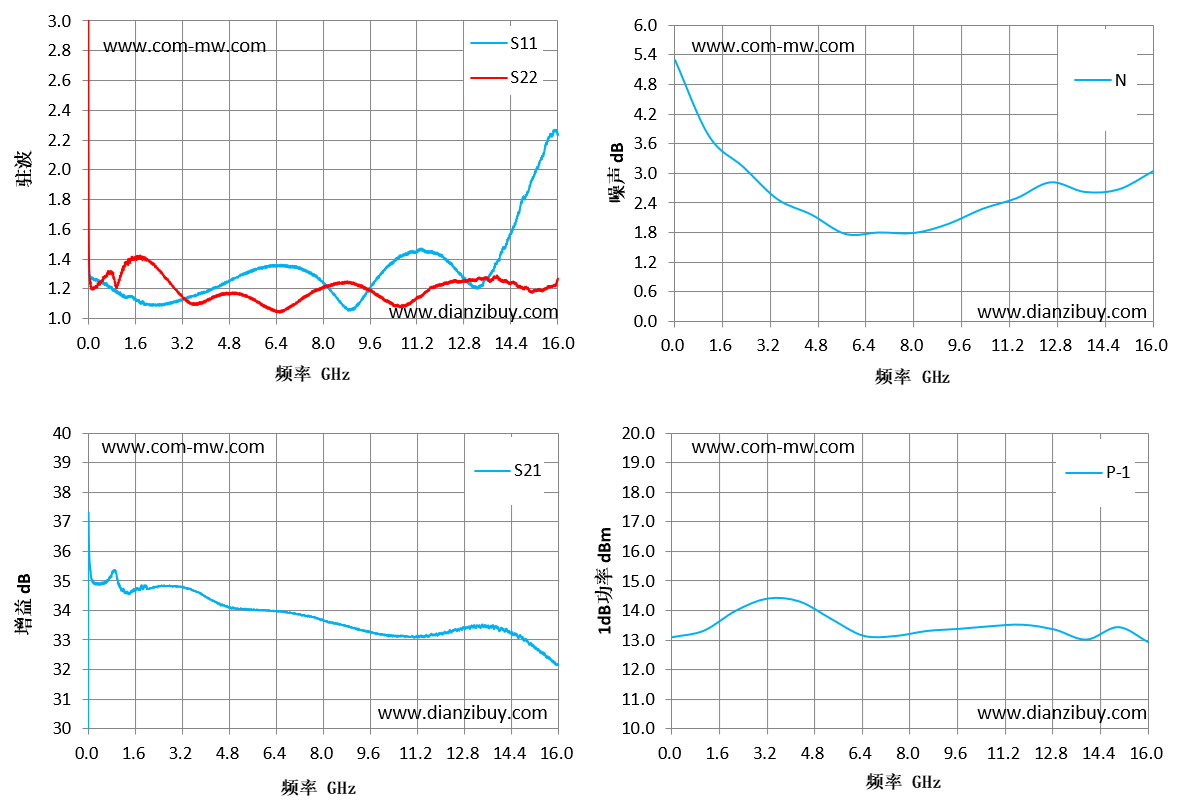

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
