LNA
400~8000MHz, Gain30dB, Noise figure2dB, P-1dB10dBm, SMA
- DLNA9-400-8000-1164
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 30 | dB | ||
| Noise figure | 2 | 2.5 | dB | |
| VSWR | 2.2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Maximum input power: 10dBm. |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 100 | 18 | 1.52 | 1.17 | 1.59 | 32.9 |
| 940 | 18.3 | 1.36 | 1.35 | 1.23 | 32.1 |
| 1780 | 18.1 | 1.28 | 1.19 | 1.03 | 32.1 |
| 2620 | 17.6 | 1.5 | 1.43 | 1.14 | 32 |
| 3460 | 16.6 | 1.34 | 1.65 | 1.04 | 32.3 |
| 4300 | 15.8 | 1.46 | 1.55 | 1.55 | 32.9 |
| 5140 | 14.9 | 1.58 | 1.7 | 1.6 | 31.8 |
| 5980 | 14.3 | 1.62 | 1.22 | 1.59 | 32.2 |
| 6820 | 14.1 | 1.64 | 1.26 | 1.55 | 32.2 |
| 7660 | 13.5 | 1.93 | 1.38 | 1.26 | 30.9 |
| 8000 | 12.6 | 2 | 1.23 | 1.1 | 31 |
Reference picture
Configuration(mm)

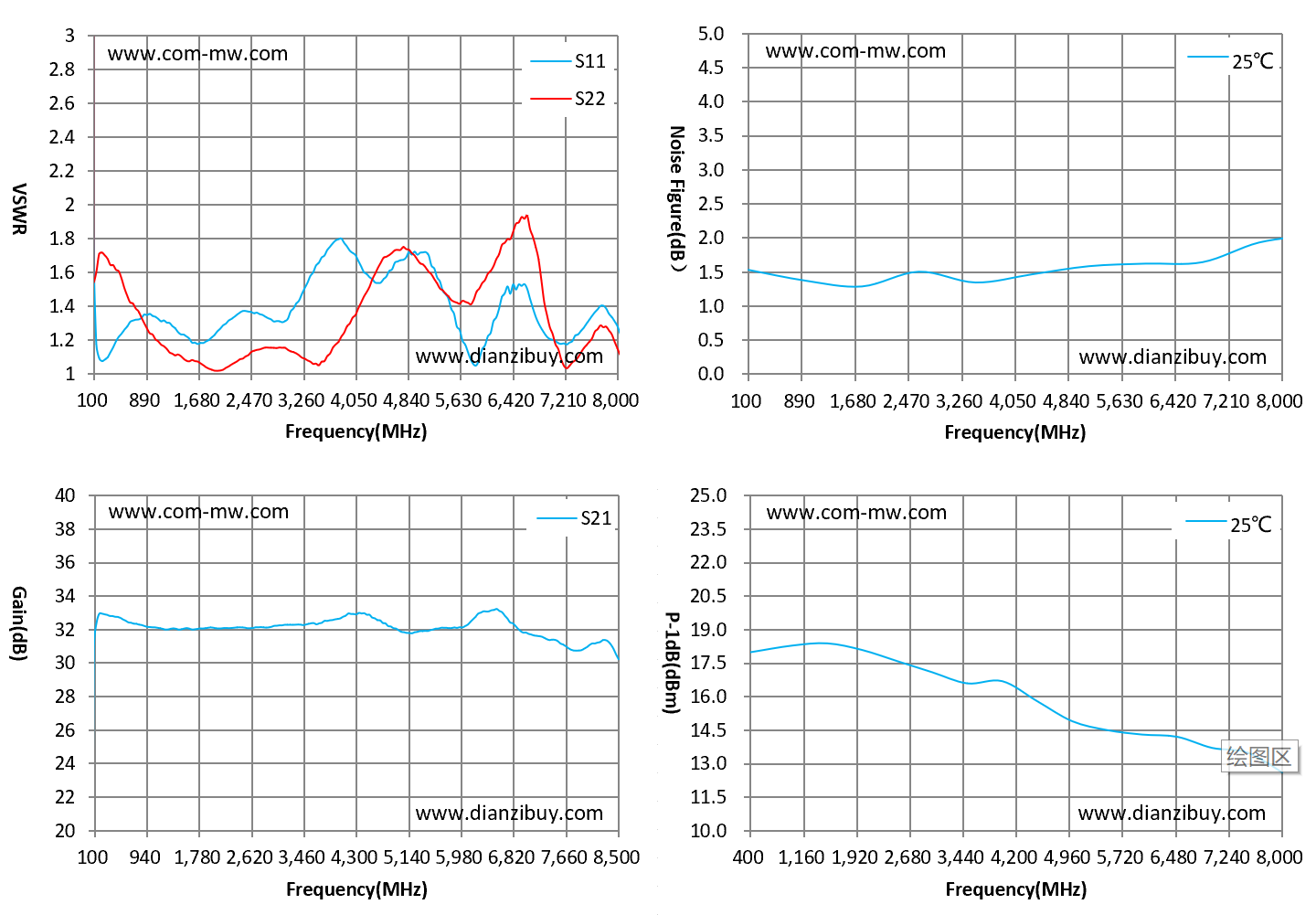

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
