LNA

2000~4000MHz, Gain35dB, Noise figure1dB, P-1dB10dBm, SMA

  • DLNA8-2-4G-3873
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency2000~4000MHz
Gain35dB
Gain flatness1dB
Noise figure1dB
VSWR2
P-1dB10dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Working voltage+15V
Working current150mA
Operation Temp.-40~+60℃ Design assurance

Typical test data

FrequencyS11S22GainP-1PSATNosie
MHzVSWRVSWRdBdBmdBmdB
10001.541.4837.3211.6716.160.86
12861.31.4938.9413.0216.910.89
15711.081.339.913.0317.20.73
18571.091.1340.4513.3117.480.82
21431.191.1640.7613.6918.040.91
24291.271.2740.9414.1418.390.93
27141.311.3841.0614.618.740.73
30001.341.4841.1315.1318.990.8
32861.341.5441.1615.3619.150.84
35711.331.5241.1415.5819.210.82
38571.311.4441.0415.7819.440.81
41431.351.3340.7615.5719.30.9
44291.371.3240.2215.3219.231.05
47141.441.4539.3414.8191.03
50001.551.6538.1614.3718.780.92

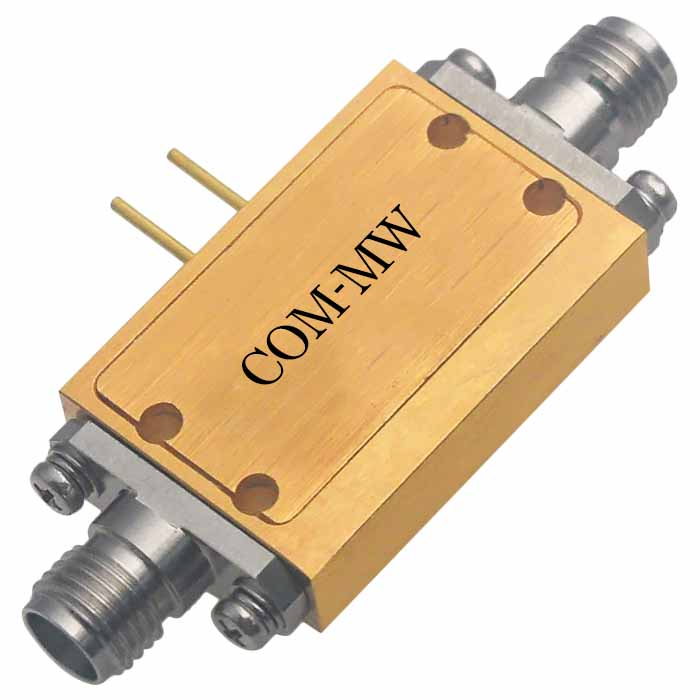

Reference picture

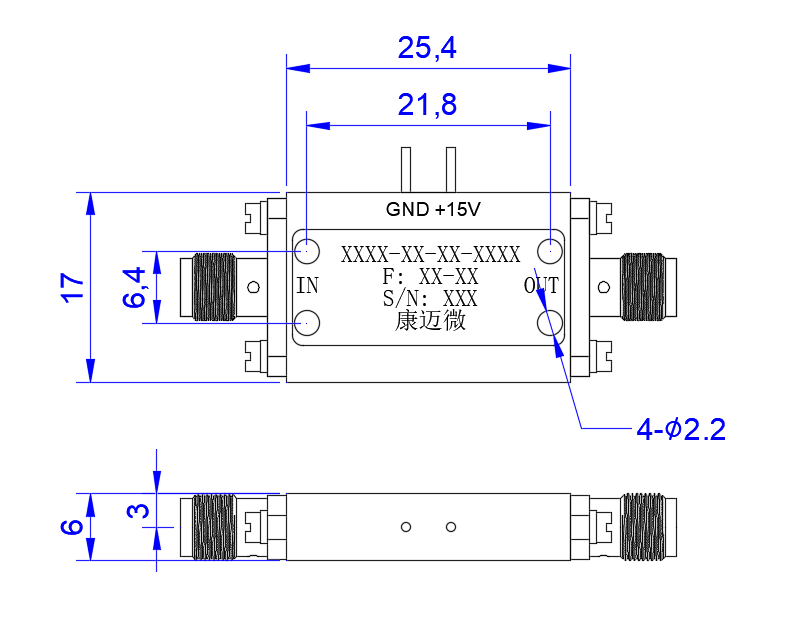

Configuration(mm)

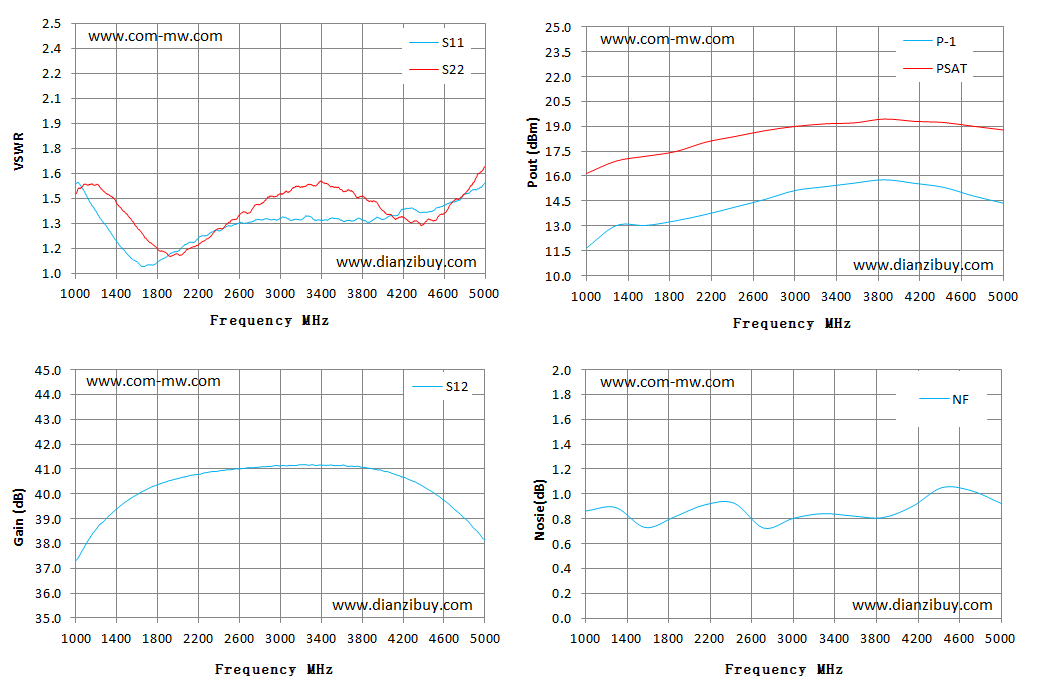

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
