LNA
100~6000MHz, Gain40dB, Noise figure1.5dB, P-1dB25dBm, SMA
- DLNA8-100-6000-9647
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 6000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 1.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 25 | dBm | ||
| Psat | 27 | dBm |
Other parameters
| Connector | SMA-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.01 | 16.95 | 148.27 | 23.92 | 24 | 27.8 | 1.14 |
| 0.58 | 1.83 | 1.58 | 42.36 | 26.6 | 28.4 | 0.71 |
| 1.15 | 1.55 | 1.44 | 42.54 | 26.56 | 28.2 | 0.93 |
| 1.72 | 1.32 | 1.3 | 42.45 | 27 | 28.5 | 1.1 |
| 2.29 | 1.14 | 1.19 | 42.7 | 27.28 | 29 | 1.01 |
| 2.86 | 1.15 | 1.09 | 42.89 | 27.56 | 28.9 | 0.96 |
| 3.43 | 1.35 | 1.11 | 42.9 | 27.66 | 29.3 | 1.04 |
| 4.01 | 1.58 | 1.29 | 42.24 | 27.9 | 29.2 | 0.92 |
| 4.58 | 1.76 | 1.43 | 41.39 | 27.91 | 28.9 | 0.96 |
| 5.15 | 1.8 | 1.45 | 41.13 | 27.84 | 28.7 | 1.24 |
| 5.72 | 1.69 | 1.46 | 41.44 | 27.86 | 28.7 | 0.93 |
| 6.29 | 1.46 | 1.57 | 41.26 | 27.81 | 28.7 | 1.14 |
| 6.86 | 1.41 | 1.56 | 40.24 | 27.79 | 28.8 | 1.26 |
| 7.43 | 1.44 | 1.33 | 38.76 | 27.8 | 28.7 | 1.17 |
| 8 | 1.39 | 1.2 | 36.79 | 27.6 | 28.7 | 1.33 |
Reference picture
Configuration(mm)

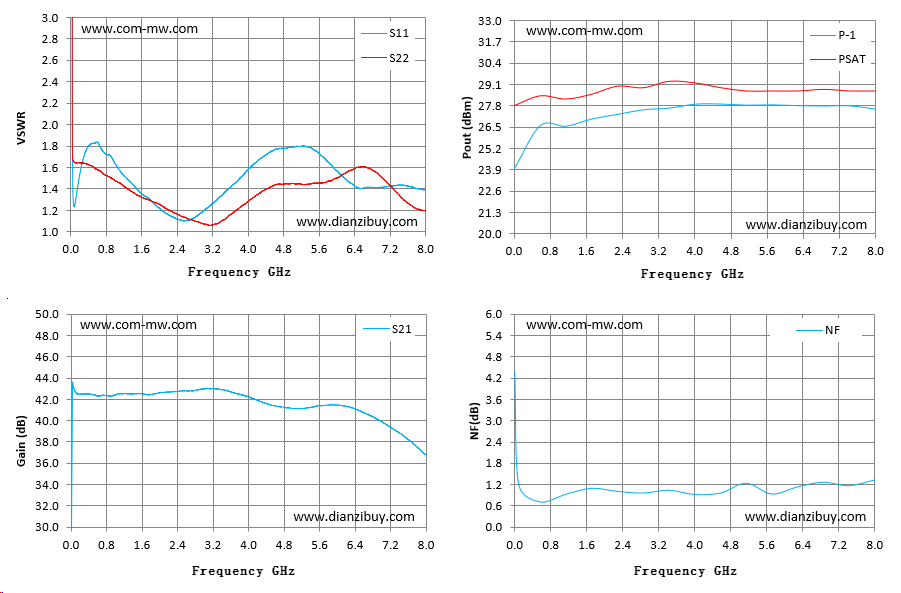

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
