LNA

0.009~3000MHz, Gain40dB, Noise figure3.8dB, P-1dB15dBm, SMA, Limiting amplifier

  • DLNA8-0.009-3000-2455
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Product features

Broadband, low noise, input limiting protection

Main specifications

ParametersMinTypicalMaxUnits
Frequency0.009~3000MHz
Gain3840dB
Gain flatness35dB
Noise figure3.8dB
VSWR2
P-1dB15dBm
Input limiting power13dBm
Max input power10W

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceWhite
Working voltage+12~15V
Working current300mA
Reverse isolation50dB
Operation Temp.-40~+70℃ Design assurance
OtherLimiting amplifier

Typical test data

频率（GHz）S11 VSWRS22 VSWRGain dBNoise dBP-1dB Output
0.011.091.6444.482.4917.17
0.291.141.4344.382.117.91
0.571.171.2144.122.2818.61
0.861.231.0844.322.4518.59
1.141.21.0344.862.5218.28
1.431.221.1544.882.3718
1.711.281.3744.652.4617.6
21.31.6143.942.6917.36
2.291.231.7543.342.817.01
2.571.131.7442.942.7616.62
2.861.091.6742.512.7916.08
3.141.091.6242.182.8916.05
3.431.251.5741.852.9815.34
3.711.591.5441.352.8814.8
41.941.540.652.9214.36

Reference picture

Configuration(mm)

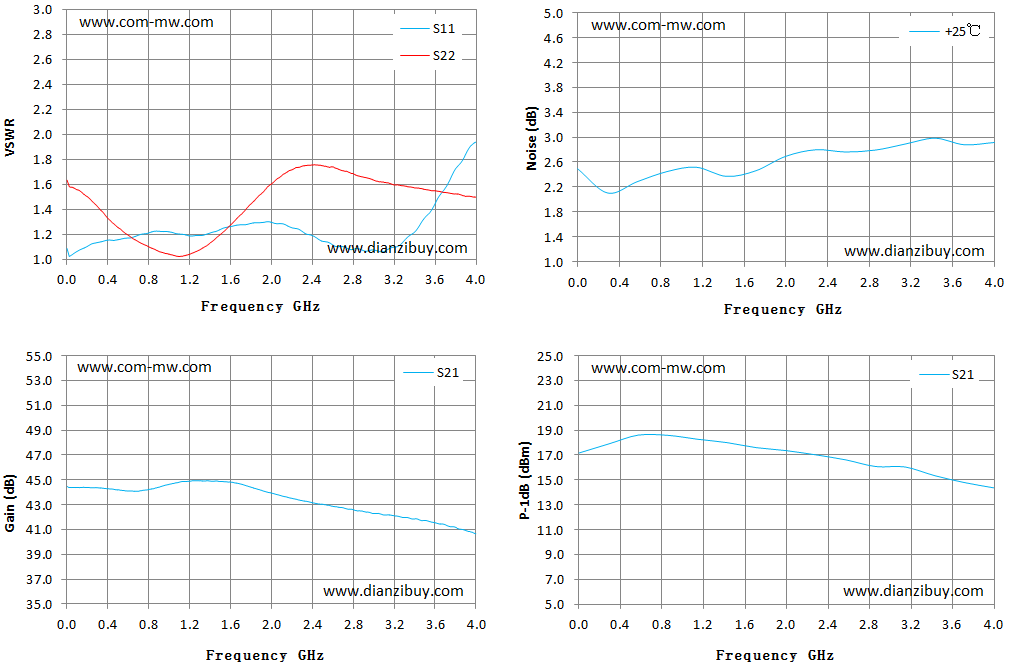

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
