Power amplifier
0.8~10GHz, Gain30dB, Psat26dBm, SMA
- DPA8-0.8-10G-3829
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.8 | ~ | 10 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 25 | dBm | ||
| Psat | 26 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 20 | dBc | ||
| OIP3 | 35 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| 0.1 | 18.19 | 2.01 | 15.3 | 17.4 | 22.9 | 34.17 |
| 0.8 | 1.68 | 1.36 | 36.19 | 27.4 | 29 | 1.69 |
| 1.7 | 1.48 | 1.36 | 36.57 | 27.2 | 29.7 | 1.53 |
| 2.6 | 1.51 | 1.31 | 36.77 | 27.4 | 29.8 | 1.85 |
| 3.4 | 1.6 | 1.28 | 36.56 | 27.2 | 29.6 | 1.56 |
| 4.3 | 1.66 | 1.27 | 36.27 | 27.2 | 29.4 | 1.85 |
| 5.1 | 1.69 | 1.23 | 36.52 | 27.4 | 29.3 | 1.77 |
| 6 | 1.66 | 1.29 | 36.7 | 27.4 | 29.2 | 1.79 |
| 6.9 | 1.61 | 1.24 | 36.83 | 27 | 28.7 | 1.88 |
| 7.7 | 1.50 | 1.22 | 37.08 | 36.5 | 28.4 | 1.76 |
| 8.6 | 1.51 | 1.18 | 37.03 | 25.9 | 27.7 | 1.87 |
| 9.4 | 1.68 | 1.15 | 36.79 | 25.6 | 27.5 | 1.993 |
| 10.3 | 1.67 | 1.17 | 35.1 | 25.6 | 27.4 | 2.12 |
| 11.1 | 1.49 | 1.18 | 35.44 | 26.1 | 27.5 | 2.25 |
| 12 | 1.58 | 1.19 | 34.46 | 26 | 27.1 | 2.55 |

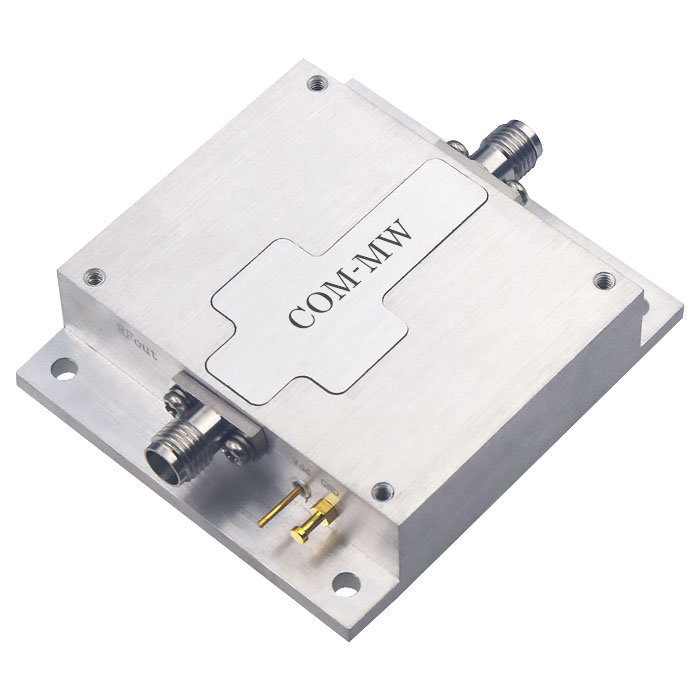

Reference picture

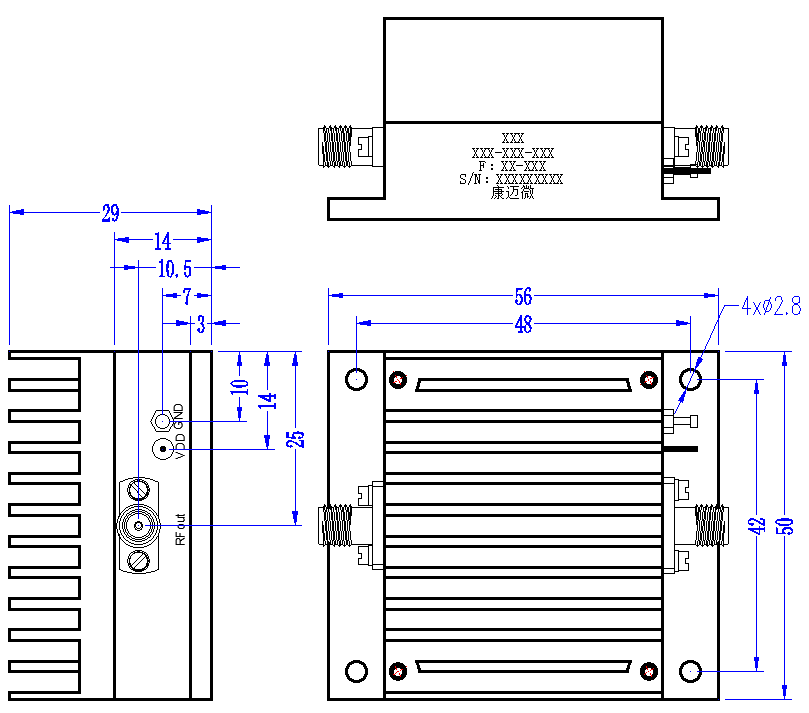

Configuration

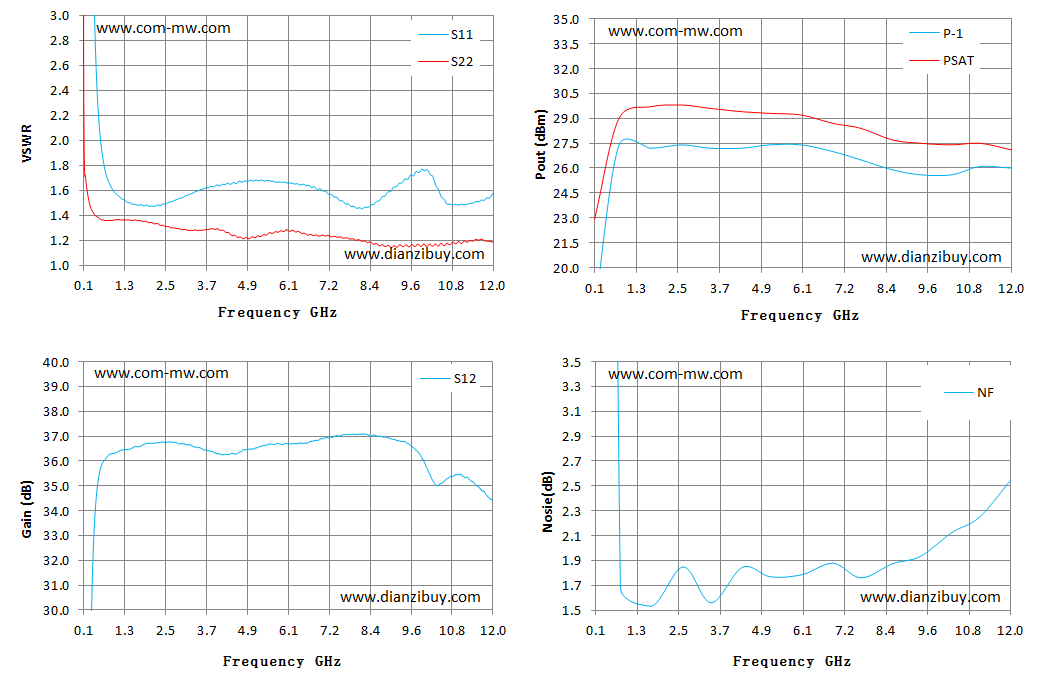

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
