LNA
20000~22000MHz, Gain40dB, Noise figure4dB, P-1dB10dBm, 2.92
- DLNA7-20-22G-716
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20000 | ~ | 22000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | 2 | dB | ||
| Noise figure | 4 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 20 | 13.9 | 3.02 | 1.58 | 1.49 | 42.8 |
| 20.2 | 14.1 | 2.95 | 1.56 | 1.39 | 43.01 |
| 20.4 | 14.2 | 2.92 | 1.54 | 1.31 | 43.1 |
| 20.6 | 14.2 | 2.88 | 1.52 | 1.24 | 43.2 |
| 20.8 | 14.3 | 2.72 | 1.48 | 1.21 | 43.3 |
| 21 | 14.2 | 2.66 | 1.45 | 1.22 | 43.5 |
| 21.2 | 14.2 | 2.62 | 1.41 | 1.27 | 43.4 |
| 21.4 | 14.1 | 2.67 | 1.36 | 1.37 | 43.5 |
| 21.6 | 14.1 | 2.7 | 1.32 | 1.47 | 43.4 |
| 21.8 | 14.2 | 2.72 | 1.31 | 1.59 | 43.2 |
| 22 | 14.1 | 2.67 | 1.34 | 1.74 | 42.9 |

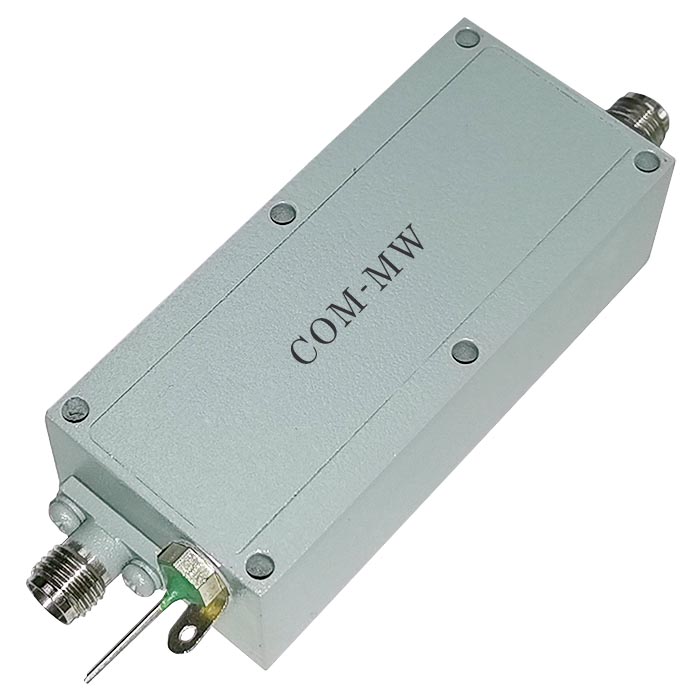

Reference picture

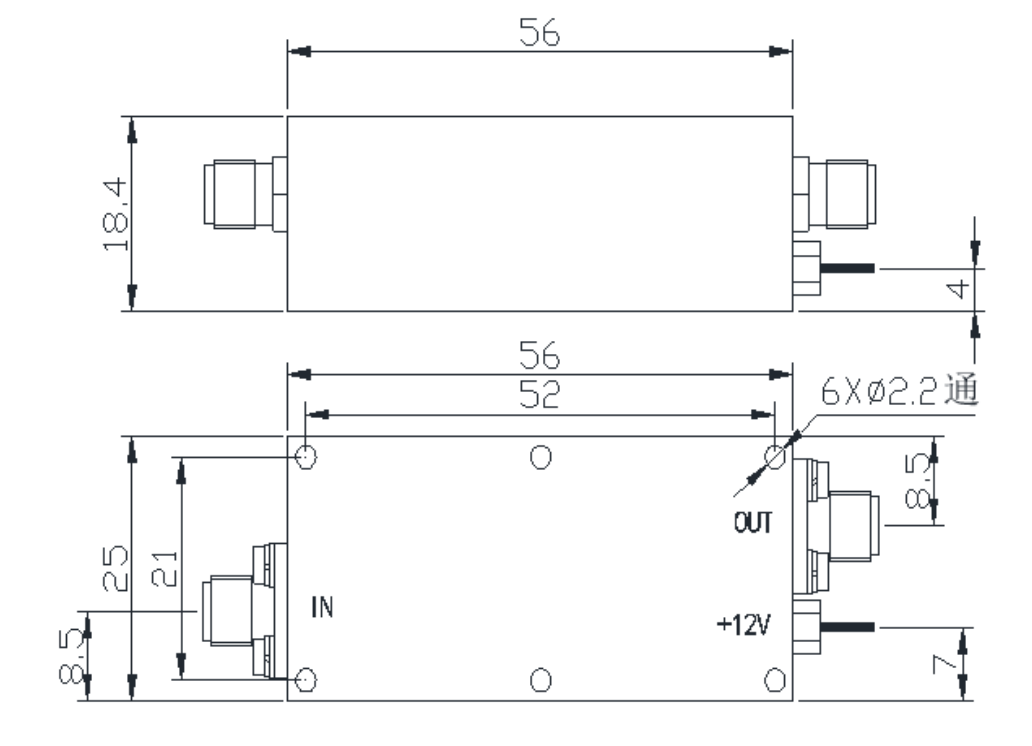

Configuration(mm)

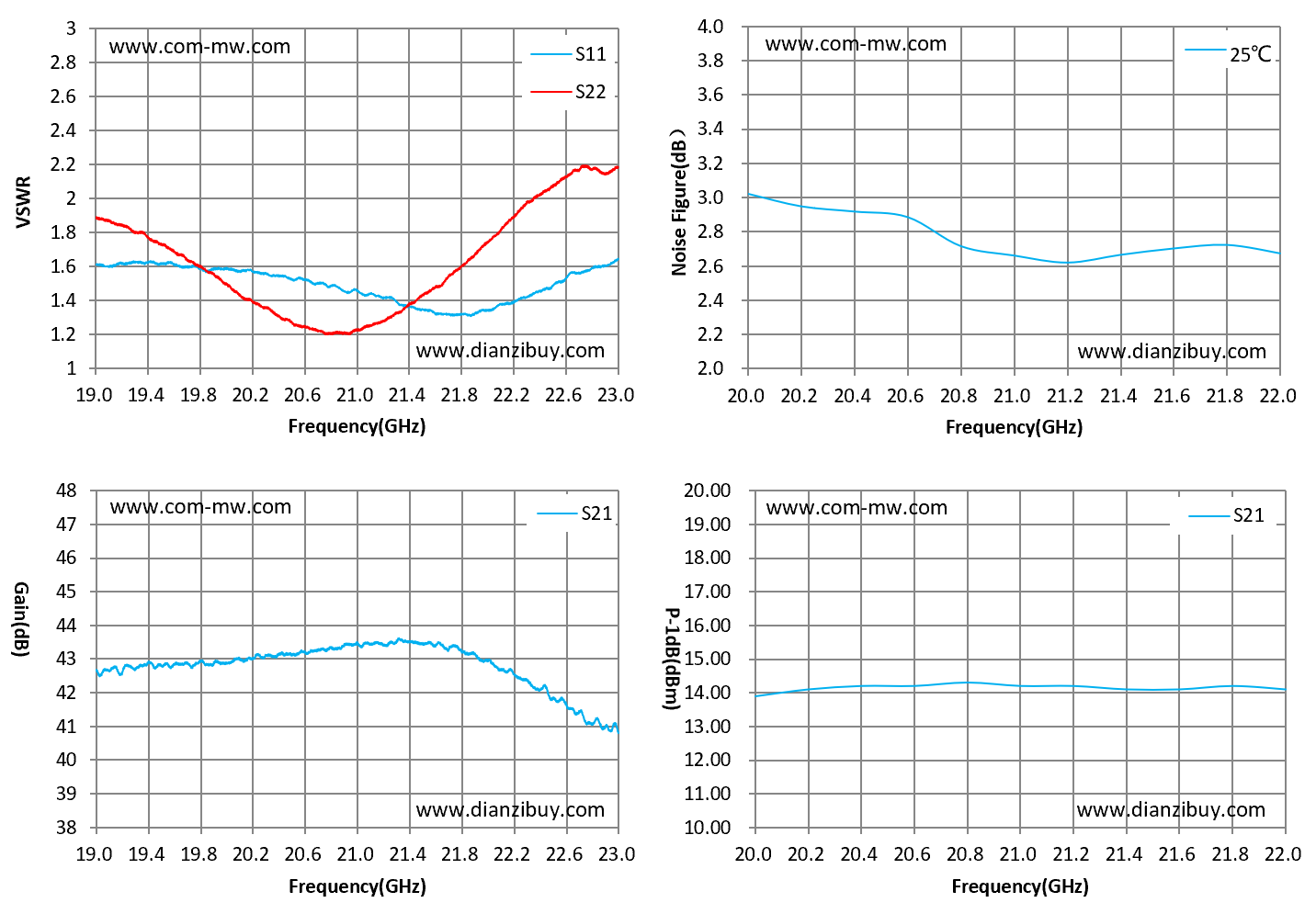

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
