LNA
0.05~46GHz, Gain35dB, P-1dB10dBm, 2.4-K
- DLNA8-0.05-46G-3927
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.05 | ~ | 46 | GHz |
| Gain | 35 | dB | ||
| Gain flatness 1 | ±1 | dB@0.05-1Ghz | ||
| Gain flatness 2 | ±7 | dB@1-46Ghz (positive slope) | ||
| Noise figure | 5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm | ||
| Spur reduction | 70 | dBc |
Other parameters
| Connector | 2.4-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+75℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NOISE |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.01 | 1.2 | 1.55 | 40.15 | 13.32 | 16.29 | 10.3 |
| 0.05 | 1.2 | 1.55 | 40.14 | 13.92 | 16.97 | 7.52 |
| 0.1 | 1.2 | 1.55 | 40.11 | 13.73 | 16.87 | 6.7 |
| 0.5 | 1.23 | 1.54 | 39.79 | 13.95 | 16.87 | 4.38 |
| 1 | 1.3 | 1.51 | 39.73 | 14.08 | 17.15 | 4.12 |
| 4 | 1.57 | 1.26 | 39.16 | 16 | 18.8 | 53.45 |
| 8 | 1.27 | 1.35 | 38.65 | 16.46 | 18.92 | 2.8 |
| 12 | 1.64 | 1.4 | 37.56 | 15.92 | 17.8 | 2.32 |
| 16 | 1.43 | 1.81 | 38.9 | 15.13 | 16.89 | 2.65 |
| 20 | 2.13 | 1.97 | 39.54 | 15.09 | 16.99 | 2.99 |
| 24 | 1.63 | 1.52 | 40.14 | 14.95 | 16.7 | 3.3 |
| 28 | 1.17 | 1.46 | 42.64 | 15.04 | 16.64 | 3.89 |
| 32 | 1.82 | 1.31 | 43.79 | 15.28 | 17.9 | 3.92 |
| 36 | 1.77 | 1.35 | 43.67 | 14.14 | 17.44 | 4.3 |
| 40 | 1.23 | 1.85 | 47.25 | 13.52 | 16.42 | 4.58 |
| 44 | 1.42 | 1.44 | 48.39 | 11.45 | 13.58 | 5.47 |
| 48 | 2.05 | 1.87 | 46.08 | 10.789 | 13.3 | 6.23 |

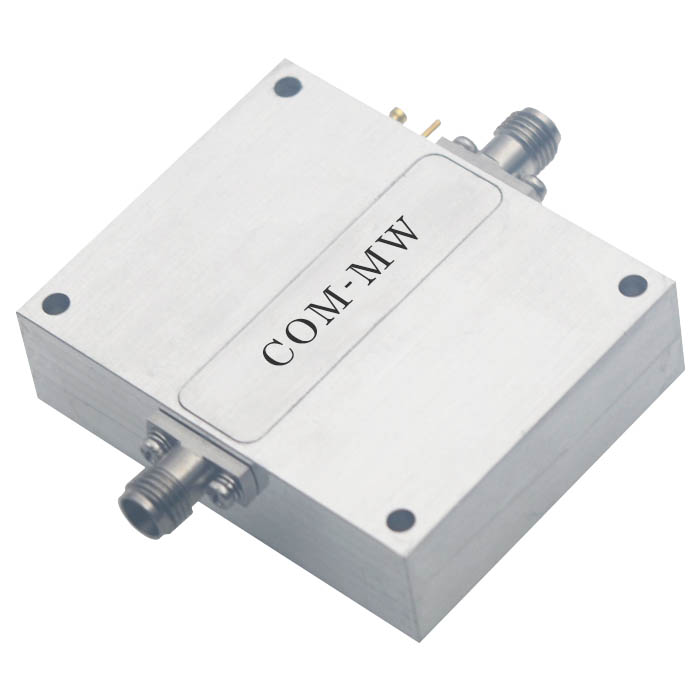

Reference picture

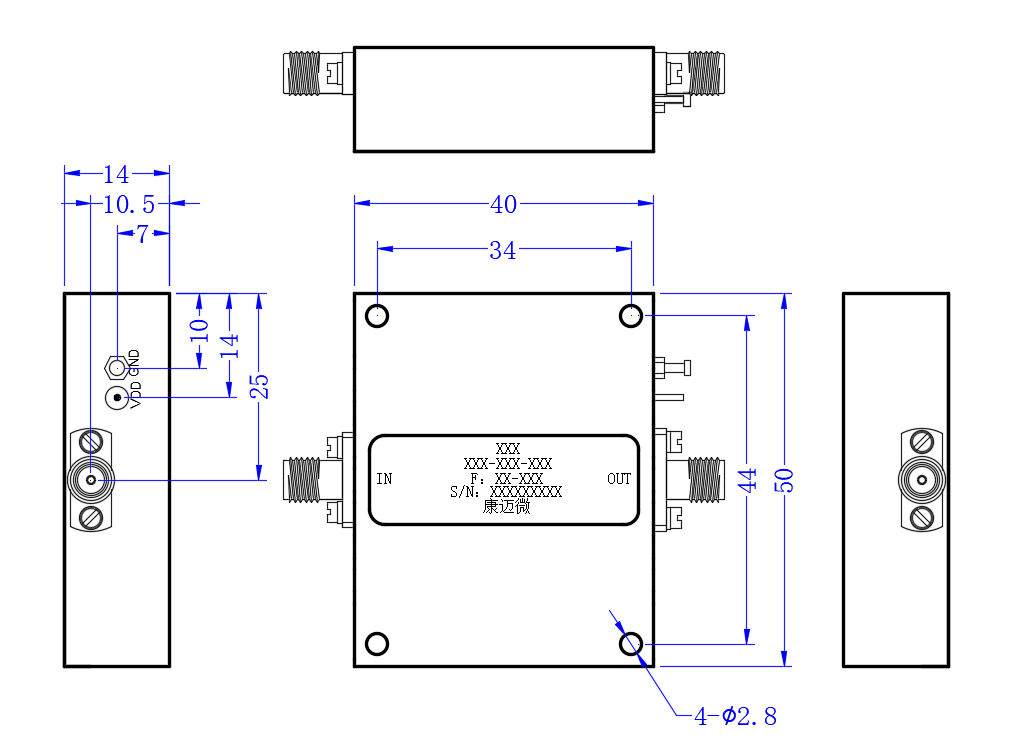

Configuration

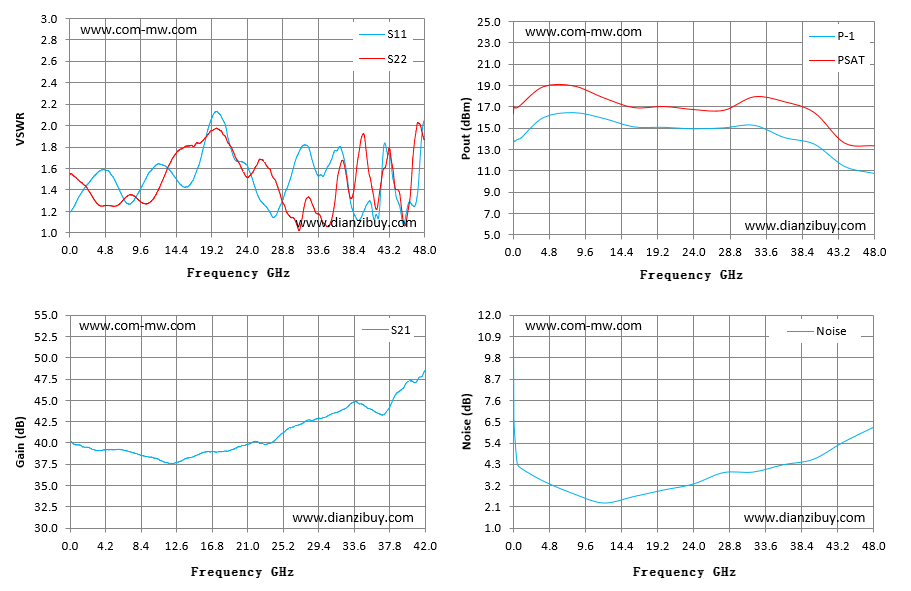

Typical test curve
