Power amplifier
30~3000MHz, Gain30dB, Psat28dBm, SMA
- DPA8-30-3000-3128
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high reliability.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1.2 | dB | ||
| Input VSWR | 1.8 | |||
| Output VSWR | ＜2.5@30~500MHz；＜1.9@500~3000MHz | |||
| P-1dB | 27 | dBm | ||
| Psat | 28 | dBm | ||
| Maximum input RF power | 10 | dBm |
Environmental
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 600mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency MHz | Input VSWR | Output VSWR | Gain dB | P-1dB (dBm) | Psat dBm |
| 30 | 1.51 | 2.25 | 33.87 | 30.16 | 30.34 |
| 100 | 1.44 | 2.07 | 33.27 | 29.68 | 29.89 |
| 500 | 1.3 | 1.72 | 33.05 | 29.71 | 29.93 |
| 1000 | 1.34 | 1.52 | 32.95 | 29.23 | 29.89 |
| 1500 | 1.48 | 1.58 | 32.71 | 28.98 | 29.22 |
| 2000 | 1.57 | 1.44 | 32.16 | 28.24 | 28.65 |
| 2500 | 1.73 | 1.86 | 31.9 | 27.41 | 28.14 |
| 3000 | 1.25 | 1.69 | 31.95 | 27.14 | 27.98 |
Reference picture
Configuration

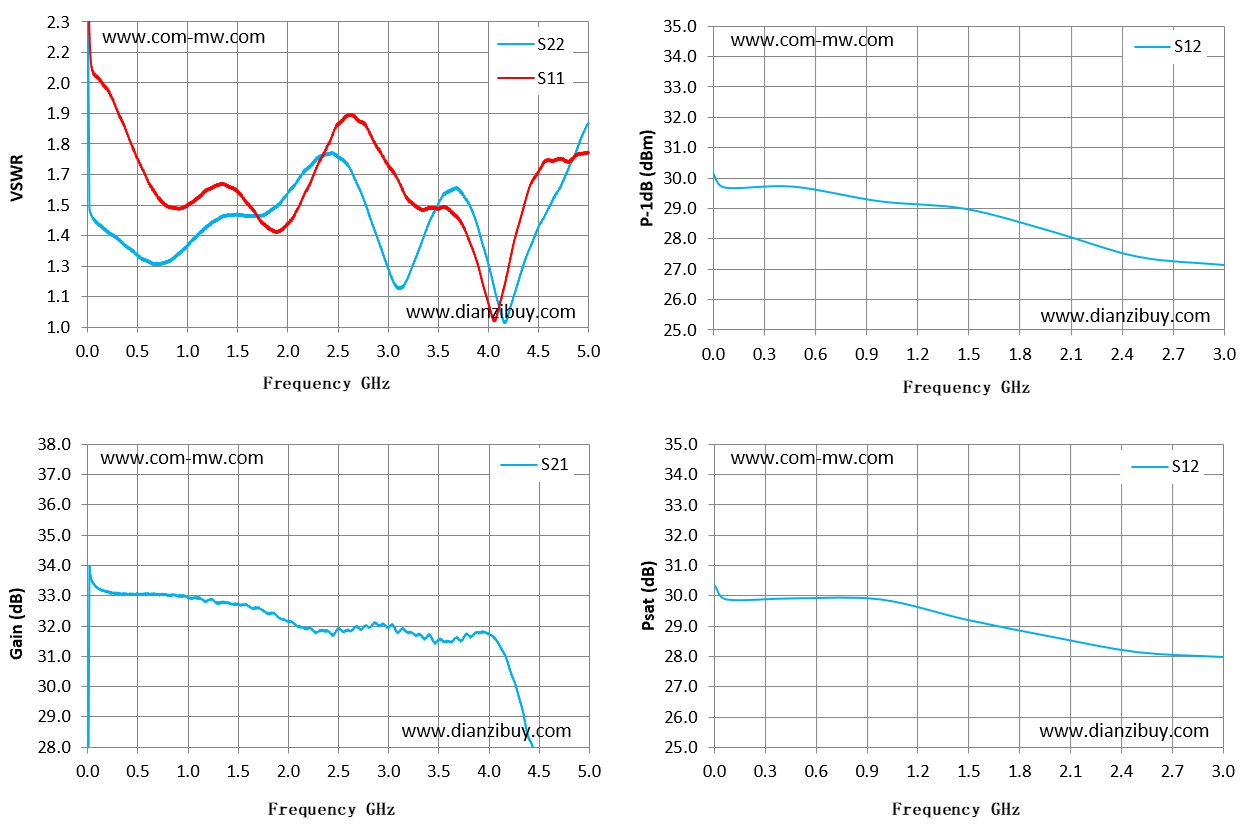

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
