LNA
- DLAN-18000-40000-02
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high gain.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | 5 | dB | ||
| Noise figure | 4.6 | dB | ||
| VSWR | 1.8 | 2.2 | ||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-F detachable, Pin 0.3mm |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12~15V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 18 | 13 | 3.68 | 1.81 | 1.44 | 56.1 |
| 20 | 12.1 | 3.58 | 1.41 | 1.85 | 55.2 |
| 22 | 11.3 | 3.51 | 1.55 | 1.52 | 55.9 |
| 24 | 11 | 4.03 | 1.82 | 1.61 | 55.8 |
| 26 | 11.4 | 4.05 | 1.55 | 1.93 | 55.7 |
| 28 | 12.4 | 4.01 | 1.53 | 1.91 | 56.1 |
| 30 | 13.1 | 4 | 1.16 | 1.9 | 55.8 |
| 32 | 12.6 | 4.3 | 1.63 | 1.48 | 55.9 |
| 34 | 13.2 | 4.2 | 1.31 | 1.15 | 57.2 |
| 36 | 12.3 | 4 | 1.34 | 1.31 | 56.1 |
| 38 | 12.7 | 3.9 | 1.95 | 1.45 | 55.3 |
| 40 | 16.2 | 3.95 | 1.43 | 1.37 | 54.2 |
Reference picture
Configuration(mm)

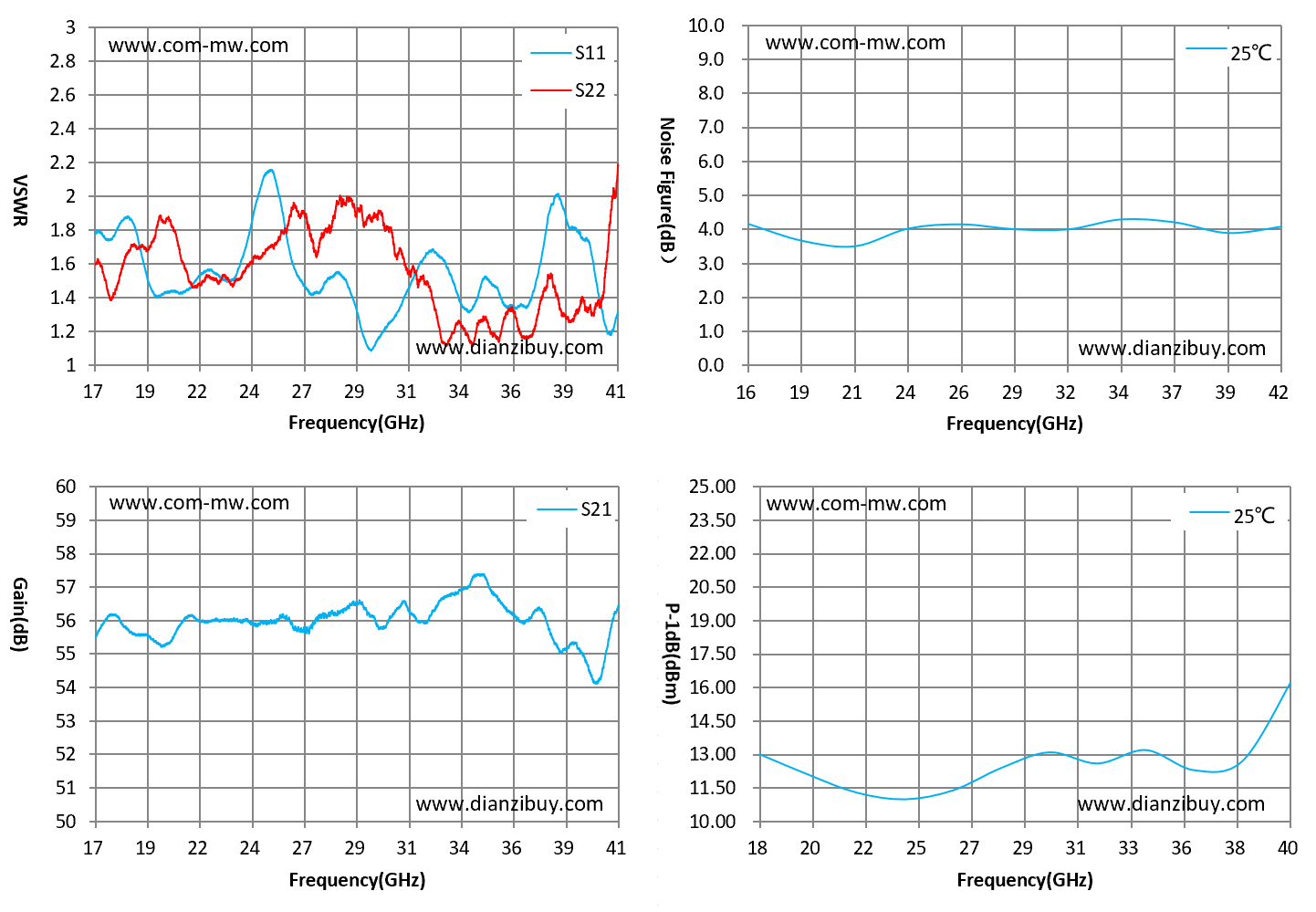

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
