LNA
0.05~46GHz, Gain40dB, P-1dB10dBm, 2.4-K
- DLNA8-0.05-46G-4283
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.05 | ~ | 46 | GHz |
| Gain | 40 | dB | ||
| Gain flatness 1 | ±1 | dB@0.05-1Ghz | ||
| Gain flatness 2 | ±3 | ±3.5 | dB@1-46Ghz | |
| Noise figure | 5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm | ||
| Spur reduction | 70 | dBc |
Other parameters
| Connector | 2.4-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | Noise |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.01 | 1.15 | 1.57 | 46.53 | 13.21 | 16.02 | 10.36 |
| 0.05 | 1.15 | 1.57 | 46.52 | 13.84 | 16.1 | 8.76 |
| 0.1 | 1.15 | 1.58 | 46.48 | 13.55 | 15.58 | 5.07 |
| 0.5 | 1.19 | 1.57 | 46.32 | 13.68 | 15.93 | 3.86 |
| 1 | 1.27 | 1.52 | 46.7 | 13.9 | 16.18 | 4.22 |
| 4 | 1.53 | 1.25 | 46.37 | 16.05 | 18.74 | 3.27 |
| 8 | 1.13 | 1.54 | 45.34 | 16.5 | 18.71 | 2.74 |
| 12 | 1.69 | 1.41 | 43.71 | 16 | 17.82 | 2.54 |
| 16 | 1.57 | 2.1 | 43.36 | 15.2 | 16.83 | 2.92 |
| 20 | 1.94 | 2 | 43.71 | 14.87 | 16.62 | 3.25 |
| 24 | 1.53 | 1.64 | 43.9 | 14.76 | 16.48 | 3.18 |
| 28 | 1.32 | 1.45 | 45.5 | 14.8 | 16.48 | 3.65 |
| 32 | 2.11 | 1.14 | 45.65 | 15.11 | 16.97 | 3.91 |
| 36 | 1.36 | 1.25 | 45.57 | 13.88 | 15.38 | 4.28 |
| 40 | 1.78 | 2.26 | 48.34 | 13.3 | 15 | 4.8 |
| 44 | 1.92 | 2 | 48.59 | 11.53 | 13.79 | 5.17 |
| 48 | 1.5 | 1.77 | 46.62 | 10.4 | 13.17 | 5.98 |

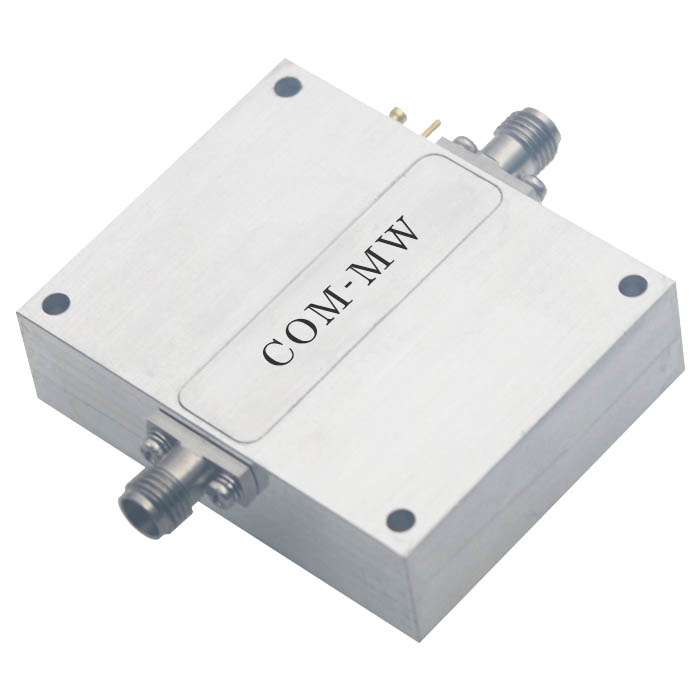

Reference picture

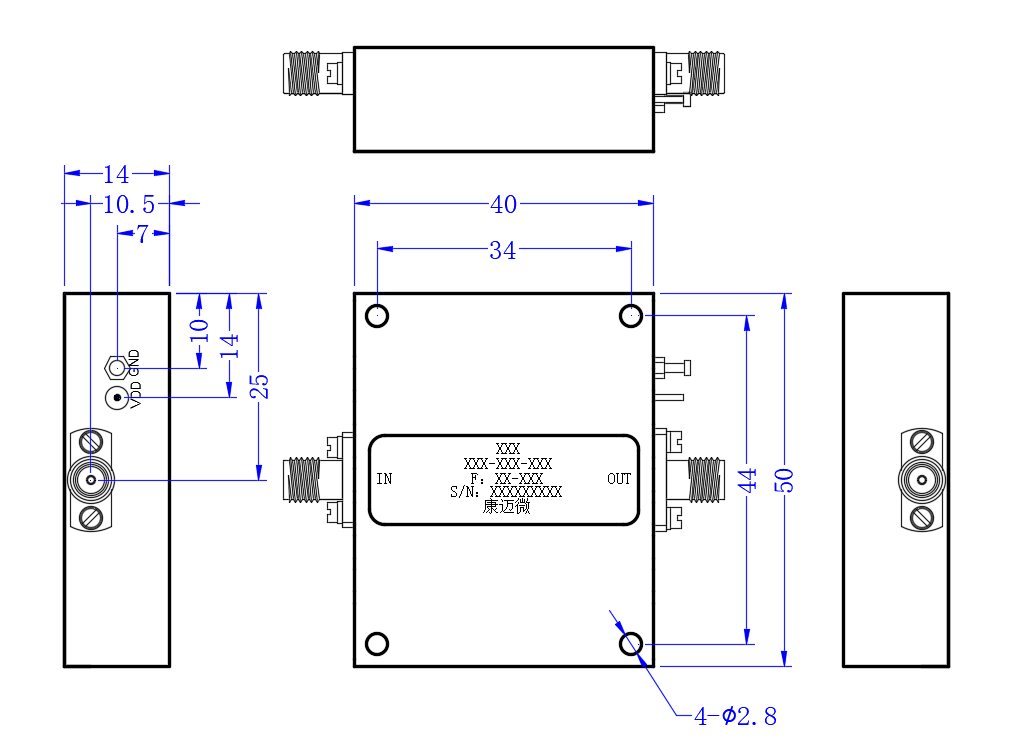

Configuration

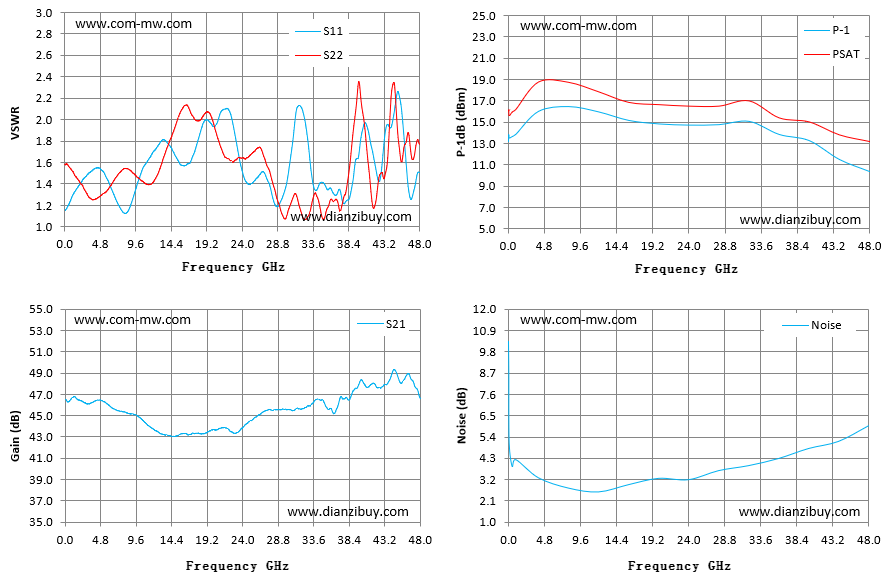

Typical test curve
