Power amplifier
10~4200MHz, Gain24dB, Psat21dBm, SMA
- DPA8-10-4200-3918
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 4200 | MHz |
| Gain | 24 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 6 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 20 | dBm | ||
| Psat | 21 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +15V |
| Working current | 350mA |
| Operation Temp. | -40~+60℃ Design assurance |

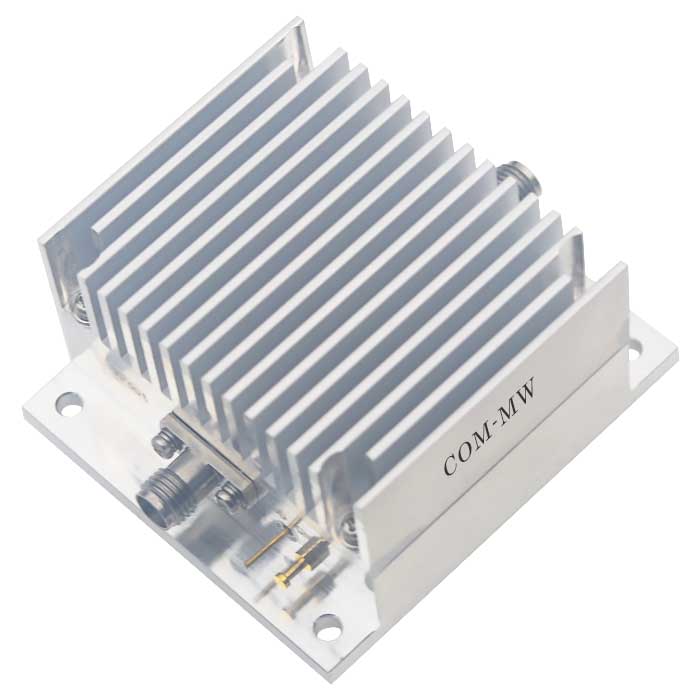

Reference picture

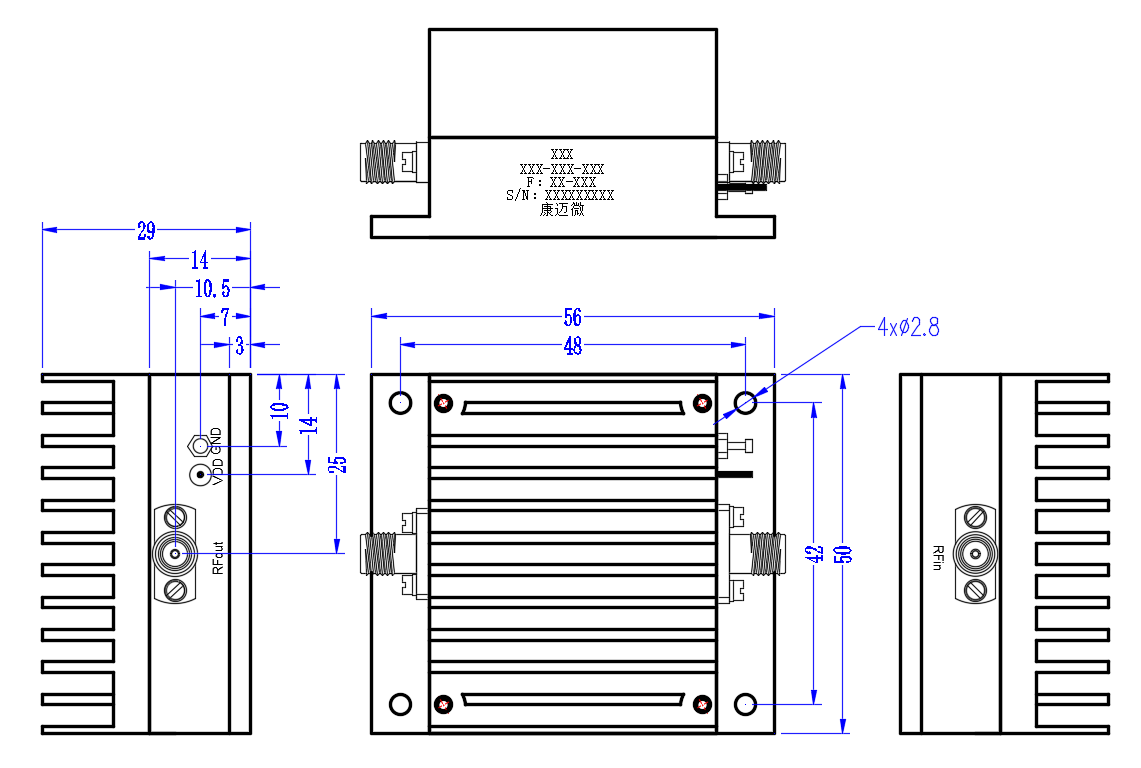

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
