LNA
400~8000MHz, Gain20dB, Noise figure1.8dB, P-1dB10dBm, dBm, dBm, SMA
- DLNA8-400-8000-3920
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | 3 | dB | ||
| Gain flatness | 0.1@ Any 20MHz | dB | ||
| Noise figure | 1.8 | 2.5 | dB | |
| VSWR | 1.7 | 2.2 | ||
| P-1dB | 10 | 14 | dBm | |
| Pout（sat） | 15 | dBm | ||
| OIP3 | 22@8GHz | dBm | ||
| Signal leakage | 50 | dB | ||
| Maximum Input Power | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | NF dB | Gain | P-1dB out dBm | Pout（SAT） dBm |
| 0.20 | 2.50 | 2.61 | 1.04 | 28.41 | 12.84 | 16.70 |
| 0.90 | 1.37 | 1.26 | 1.42 | 30.26 | 16.40 | 17.90 |
| 1.60 | 1.27 | 1.09 | 1.51 | 30.31 | 15.60 | 17.50 |
| 2.30 | 1.48 | 1.65 | 1.61 | 29.89 | 14.70 | 17.40 |
| 3.00 | 1.52 | 1.75 | 1.75 | 29.64 | 14.50 | 17.60 |
| 3.70 | 1.32 | 1.30 | 1.73 | 29.97 | 14.70 | 17.50 |
| 4.40 | 1.40 | 1.15 | 1.84 | 30.17 | 14.70 | 17.50 |
| 5.10 | 1.53 | 1.35 | 1.91 | 29.93 | 14.10 | 17.30 |
| 5.80 | 1.42 | 1.41 | 1.93 | 29.82 | 13.80 | 17.20 |
| 6.50 | 1.25 | 1.23 | 2.01 | 29.86 | 12.90 | 17.00 |
| 7.20 | 1.50 | 1.15 | 2.15 | 30.13 | 11.90 | 16.60 |
| 7.90 | 1.88 | 1.39 | 2.21 | 30.52 | 11.10 | 16.90 |
| 8.60 | 2.16 | 2.05 | 2.43 | 29.43 | 10.00 | 16.00 |
| 9.30 | 3.69 | 3.49 | 2.97 | 25.51 | 8.40 | 14.00 |
| 10.00 | 3.40 | 4.46 | 2.94 | 22.29 | 6.70 | 11.90 |
Reference picture

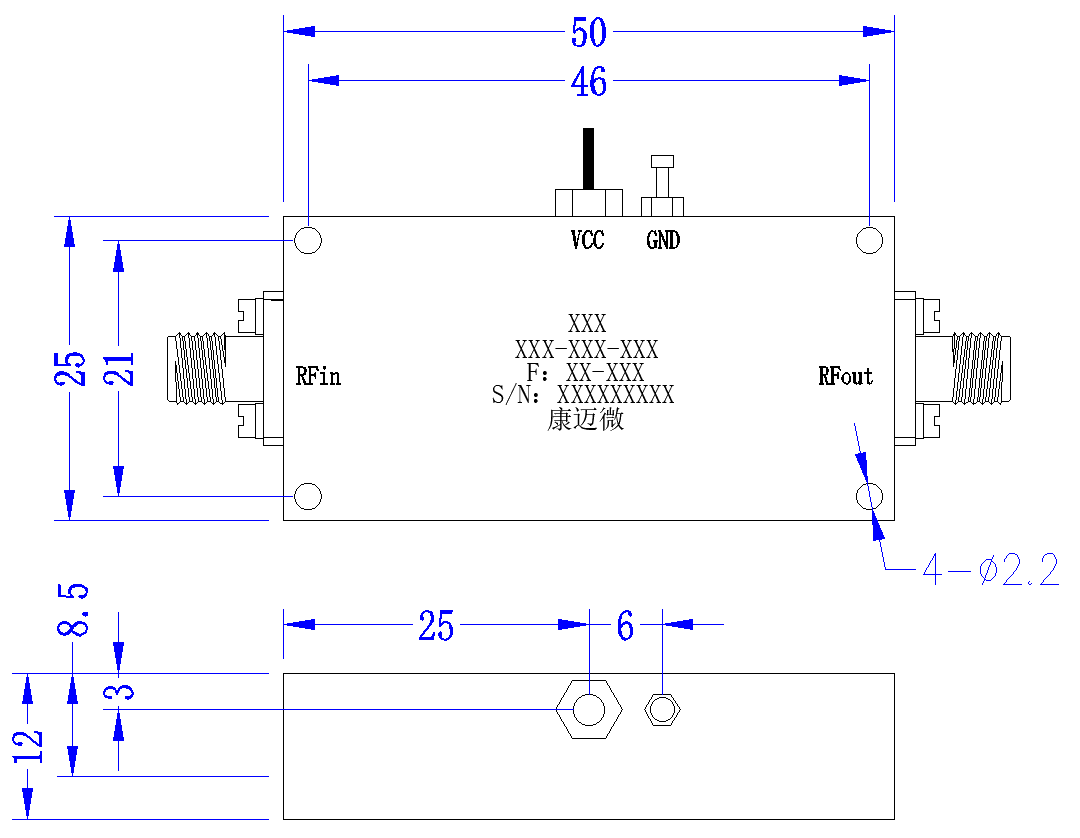

Configuration(mm)

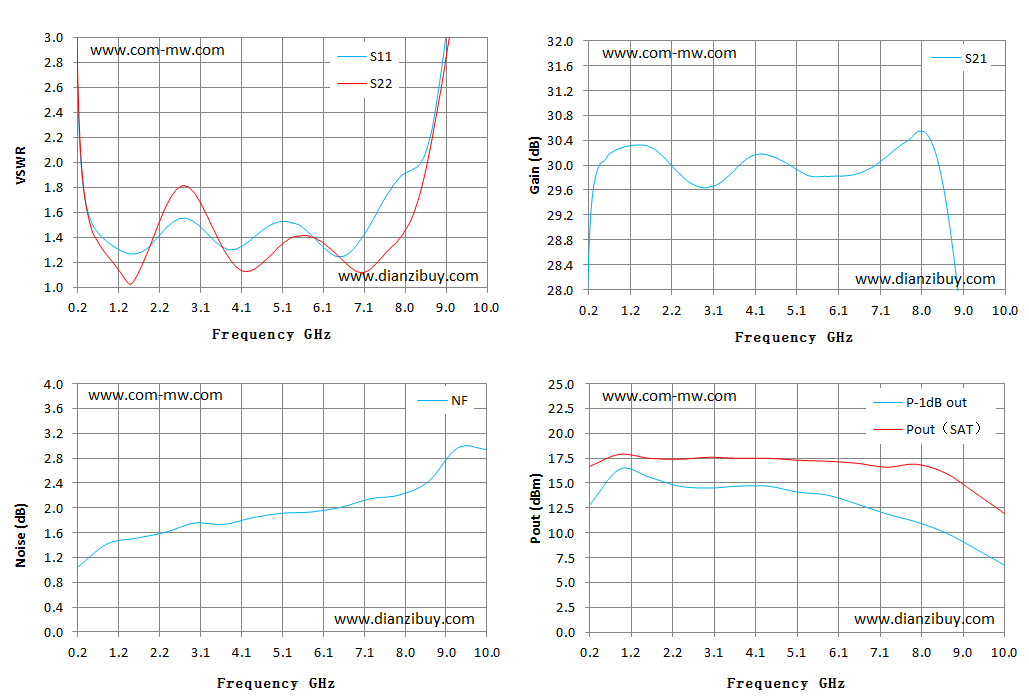

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
