Power amplifier
100~12000MHz, Gain27dB, Psat30dBm, SMA
- DPA8-10-12000-3190
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 12000 | MHz |
| Gain | 27 | dB | ||
| Gain flatness | ±3 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 28 | dBm | ||
| Psat | 30 | dBm | ||
| Max input power | 10 | dBm |
Environmental
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 850mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Reverse isolation ≥ 70dB; IP3≥34dBm |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1dB | PSAT |
| GHZ | VSWR | VSWR | dB | dBm | dBm |
| 0.1 | 1.20 | 1.51 | 35.81 | 29.81 | 31.44 |
| 1 | 1.27 | 1.59 | 32.47 | 30.25 | 31.73 |
| 1.9 | 1.32 | 1.45 | 33.30 | 30.73 | 32.12 |
| 2.9 | 1.33 | 1.27 | 33.30 | 31.05 | 32.28 |
| 3.8 | 1.28 | 1.10 | 33.06 | 31.44 | 32.46 |
| 4.7 | 1.23 | 1.14 | 32.94 | 31.69 | 32.89 |
| 5.6 | 1.14 | 1.29 | 32.58 | 31.2 | 32.42 |
| 6.6 | 1.20 | 1.33 | 32.34 | 30.87 | 31.76 |
| 7.5 | 1.43 | 1.28 | 32.07 | 30.28 | 32.39 |
| 8.4 | 1.43 | 1.21 | 31.30 | 30.37 | 31.67 |
| 9.3 | 1.42 | 1.18 | 30.52 | 29.55 | 30.57 |
| 10.2 | 1.33 | 1.14 | 29.78 | 28.98 | 30.28 |
| 11.2 | 1.32 | 1.11 | 29.04 | 28.45 | 30.28 |
| 12.1 | 1.26 | 1.08 | 28.46 | 28.66 | 30.46 |
| 13 | 1.06 | 1.14 | 27.64 | 28.97 | 30.32 |
Reference picture
Configuration

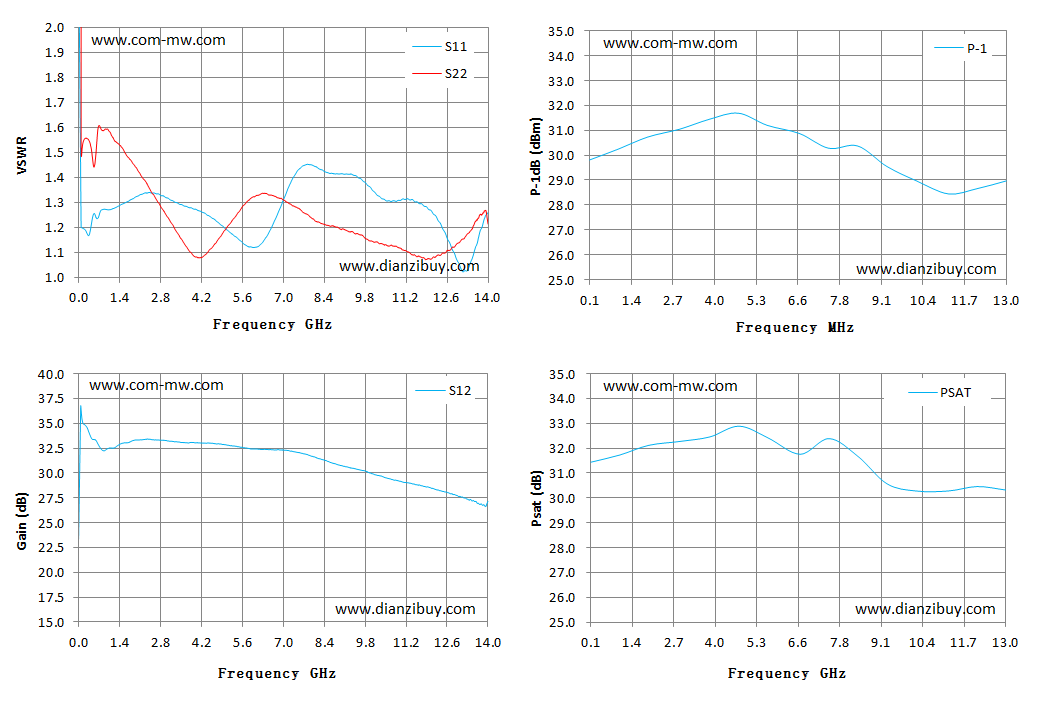

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
