LNA
0.009~3000MHz, Gain15dB, Noise figure3dB, P-1dB10dBm, SMA
- DLNA8-0.009-3000-742
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 15 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 0.025 | 10.4 | / | 1.15 | 1.01 | 19.4 |
| 400 | 11.8 | 2.16 | 1.37 | 1.06 | 20.1 |
| 800 | 12.9 | 2.46 | 1.4 | 1.24 | 20.7 |
| 1200 | 13.4 | 2.31 | 1.45 | 1.51 | 20.8 |
| 1600 | 14.2 | 2.3 | 1.47 | 1.66 | 20.8 |
| 2000 | 14.9 | 2.53 | 1.38 | 1.57 | 20.6 |
| 2400 | 15 | 2.71 | 1.42 | 1.48 | 20.2 |
| 2800 | 14.4 | 2.69 | 1.65 | 1.71 | 19.2 |
| 3200 | 13.7 | 2.59 | 1.81 | 1.98 | 17.8 |
| 3600 | 13.6 | 2.66 | 1.79 | 2.09 | 17 |
| 4000 | 13.5 | 2.9 | 1.69 | 1.94 | 16.5 |
Reference picture
Configuration(mm)

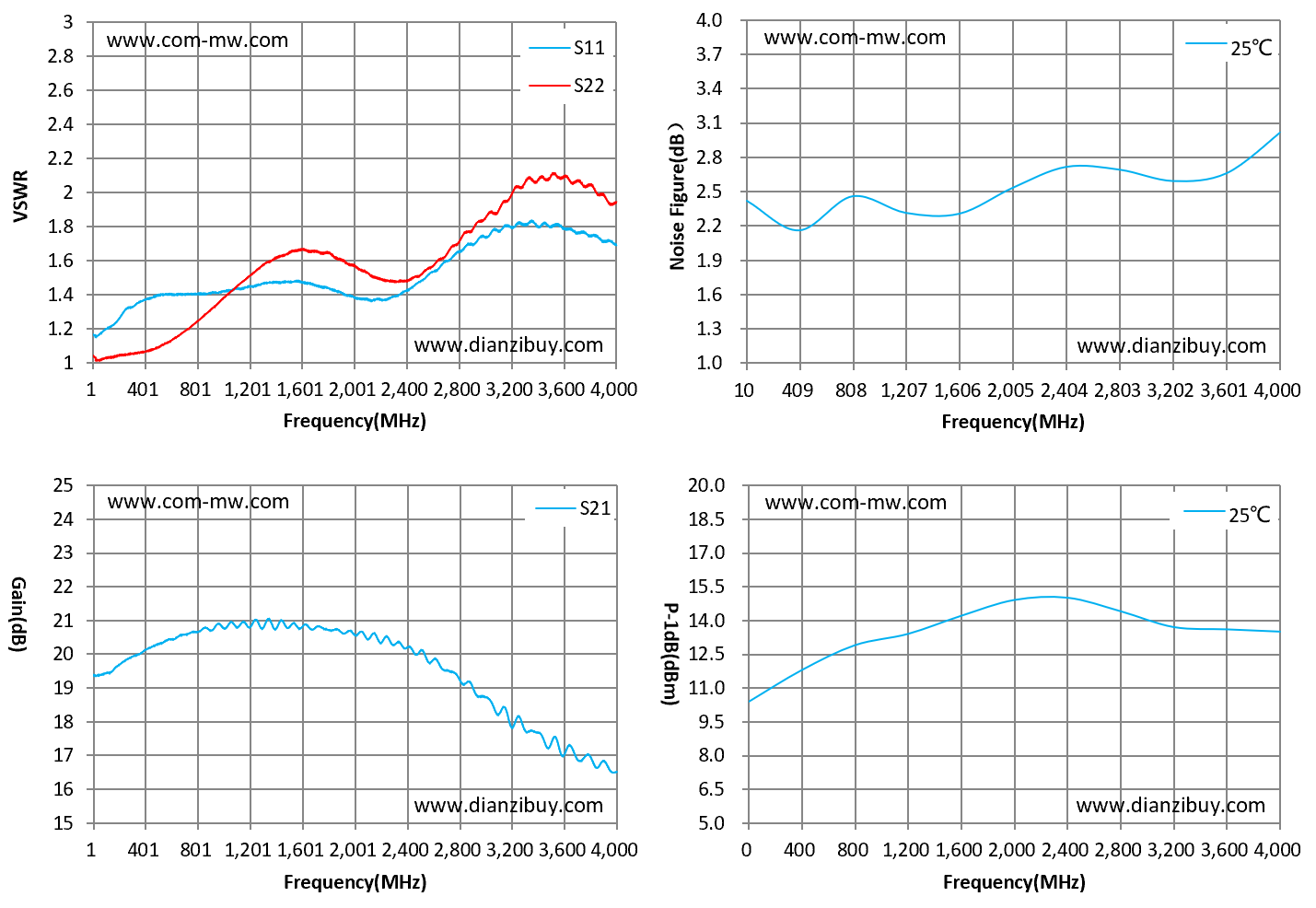

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
