Power amplifier
300~1200MHz, Gain45dB, Output power50W, SMA, N
- DPA8-0.3-1.2G-4027
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Narrowband, high power.
Tech specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 300 | ~ | 1200 | MHz | |
| Gain | 45 | dB | |||
| Flatness in band | ±4 | dB | |||
| Input RL | -12 | dB | |||
| Output power | 50 | W | CW signal | ||
| Efficiency | 40 | % | |||
| Total harmonic distortion | 10 | dBc | |||
| Input level | 10 | dBm |
Environmental
| Input connector | SMA-K |
| Output port | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 11A |
| Operation Temp. | -40~+75℃ Design assurance |
| Other | 1、 具有输出开关控制接口、内置保护功能 |
| 2. If there are strict requirements for harmonic and spurious indicators, it is recommended to connect the output to a filter | |
| 3. For long-term work, it is recommended to keep the temperature below 40 ℃ |

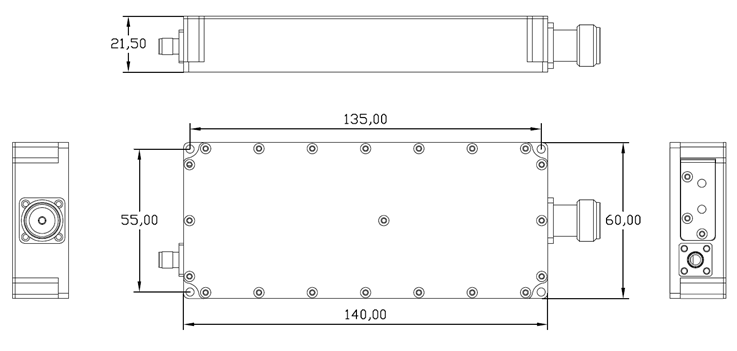

Configuration

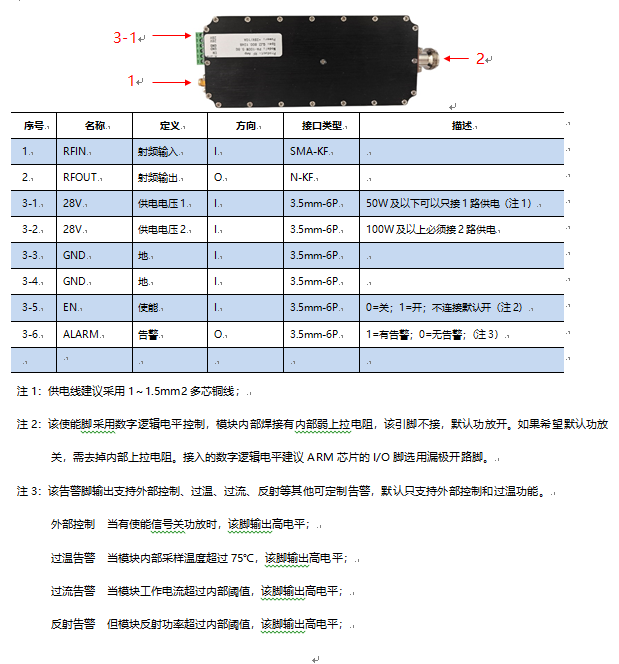

Port Definition
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
