LNA
1~2500MHz, Gain42dB, Noise figure4dB, P-1dBdBm, SMA
- DLNA8-1-6000-3191
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Units |
| Frequency | 1 | ~ | 2500 | MHz | |
| Gain | 42 | 45 | dB | ||
| Gain flatness | ±5 | dB | |||
| Noise figure | 4 | dB | 30~2500MHz | ||
| VSWR | 2.8 | ||||
| P-1dB | 20 | dBm | |||
| Psat | 21 | dBm | |||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 550mA |
| Operation Temp. | -30~+60℃ Design assurance |

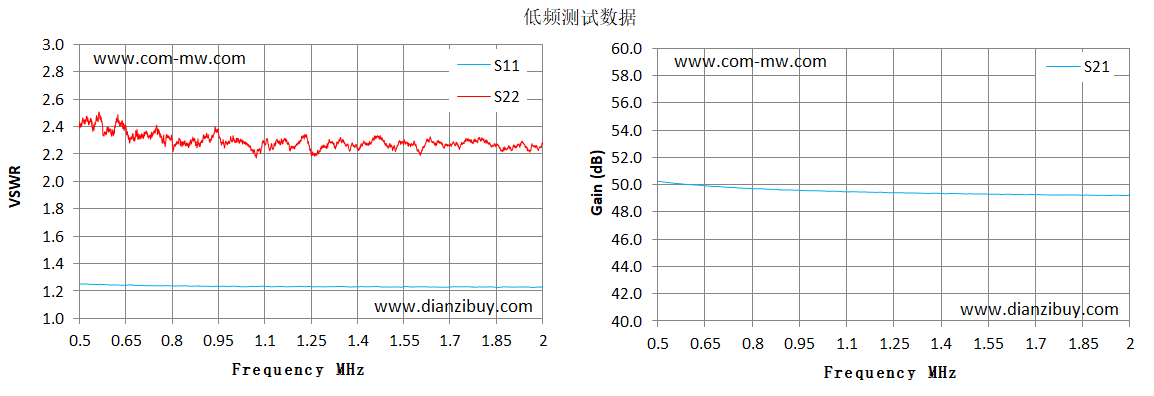

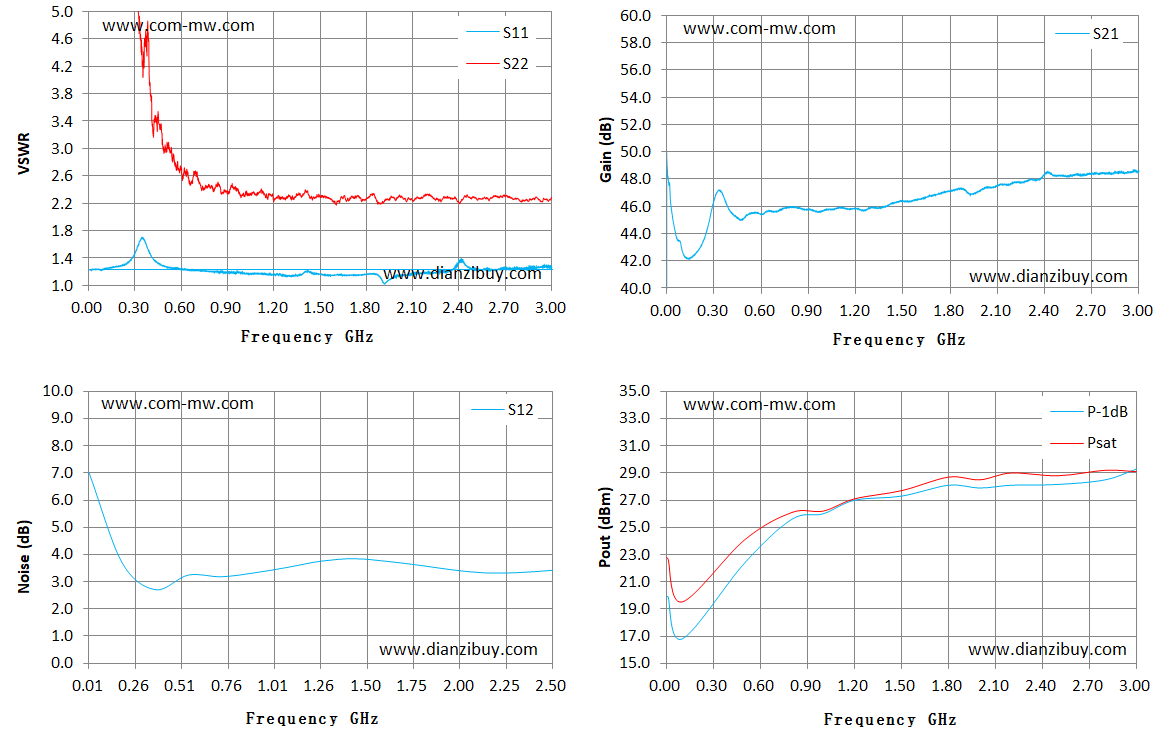

Typical test curve

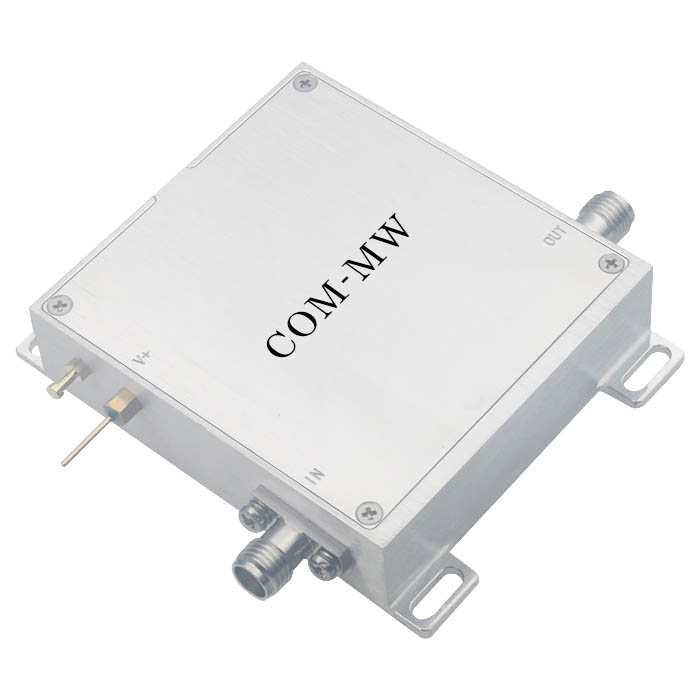

Reference picture

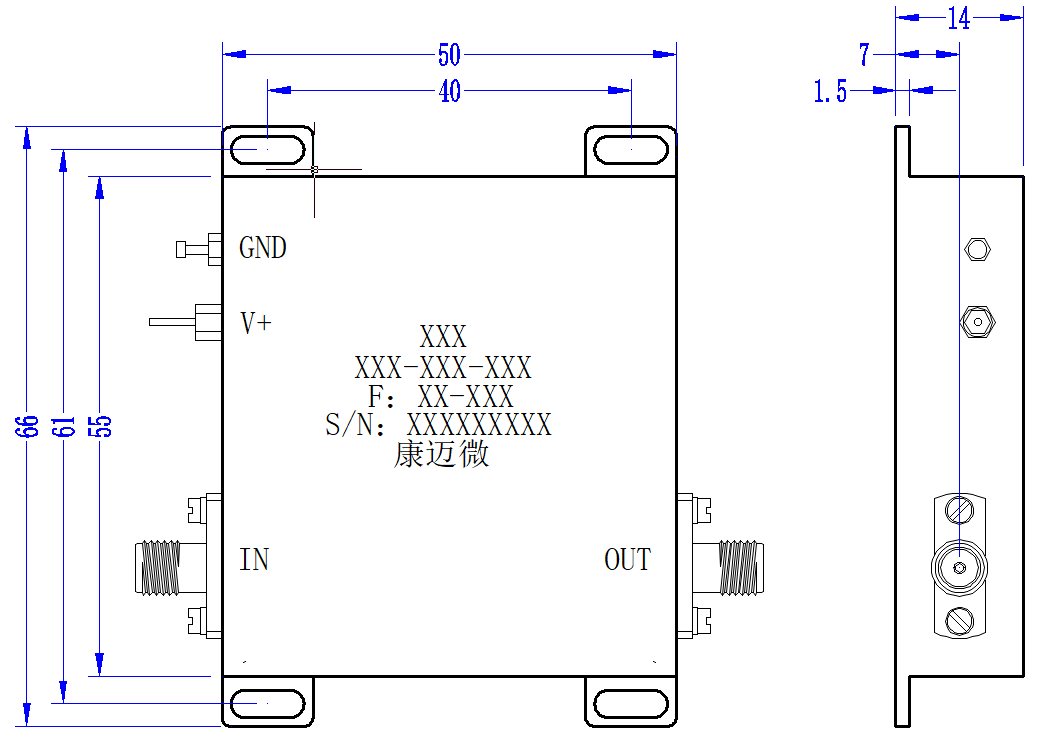

Configuration(mm)
Typical test data
| Frequency | VSWR S11 | VSWR S22 | S21 增益 | P-1dB Output | Psat 输出功率 |
| MHz | / | / | dB | dBm | dBm |
| 1.00 | 1.25 | 2.30 | 49.56 | 19.88 | 22.79 |
| 10.00 | 1.22 | 2.15 | 48.05 | 19.92 | 22.70 |
| 100.00 | 1.24 | 1.99 | 42.70 | 16.80 | 19.52 |
| 500.00 | 1.27 | 1.97 | 45.22 | 22.40 | 24.10 |
| 800.00 | 1.19 | 1.98 | 45.95 | 25.60 | 26.10 |
| 1000.00 | 1.17 | 2.05 | 45.71 | 26.00 | 26.20 |
| 1200.00 | 1.14 | 2.09 | 45.87 | 27.00 | 27.10 |
| 1500.00 | 1.16 | 1.93 | 46.39 | 27.30 | 27.70 |
| 1800.00 | 1.16 | 1.88 | 47.12 | 28.10 | 28.70 |
| 2000.00 | 1.13 | 1.82 | 47.25 | 27.90 | 28.50 |
| 2200.00 | 1.20 | 1.81 | 47.70 | 28.10 | 29.00 |
| 2500.00 | 1.23 | 1.71 | 48.23 | 28.16 | 28.80 |
| 2800.00 | 1.24 | 1.64 | 48.45 | 28.50 | 29.20 |
| 3000.00 | 1.24 | 1.71 | 48.60 | 29.30 | 29.10 |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
