LNA
18~50GHz, Gain33dB, PSAT15dBm, 1.85
- DLNA8-18-50G-9153
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 50 | GHz |
| Gain | 33 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 2.5 | |||
| Spur reduction | 60 | dBc | ||
| P-1dB | 14 | dBm | ||
| PSAT | 15 | dBm |
Other parameters
| Connector | 1.85-F Detachable |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 18 | 1.84 | 1.74 | 38.10 | 16 | 17.1 | 3 |
| 20.29 | 1.56 | 1.10 | 38.02 | 16.8 | 17.5 | 2.9 |
| 22.57 | 1.37 | 1.31 | 38.04 | 16.8 | 17.4 | 3.18 |
| 24.86 | 1.38 | 1.60 | 38.02 | 16.6 | 17.4 | 3.42 |
| 27.14 | 1.51 | 1.65 | 38.05 | 16 | 17 | 3.47 |
| 29.43 | 1.81 | 1.17 | 37.92 | 15.9 | 17.3 | 3.96 |
| 31.71 | 1.92 | 1.48 | 38.20 | 16.2 | 17.2 | 4.24 |
| 34 | 1.31 | 1.74 | 38.13 | 16.6 | 17.6 | 4.37 |
| 36.29 | 1.91 | 1.23 | 37.96 | 16.8 | 17.8 | 4.16 |
| 38.57 | 1.91 | 1.08 | 37.79 | 16.3 | 17.4 | 4.17 |
| 40.86 | 1.35 | 1.57 | 35.75 | 16.6 | 17.9 | 4.16 |
| 43.14 | 1.32 | 1.39 | 35.76 | 16.4 | 17.7 | 4.05 |
| 45.43 | 1.32 | 1.75 | 33.97 | 17.4 | 18.5 | 4.33 |
| 47.71 | 1.40 | 1.69 | 33.75 | 17.6 | 18.5 | 4 |
| 50 | 1.21 | 1.44 | 35.50 | 16.7 | 17.4 | 4.88 |
Reference picture
Configuration(mm)

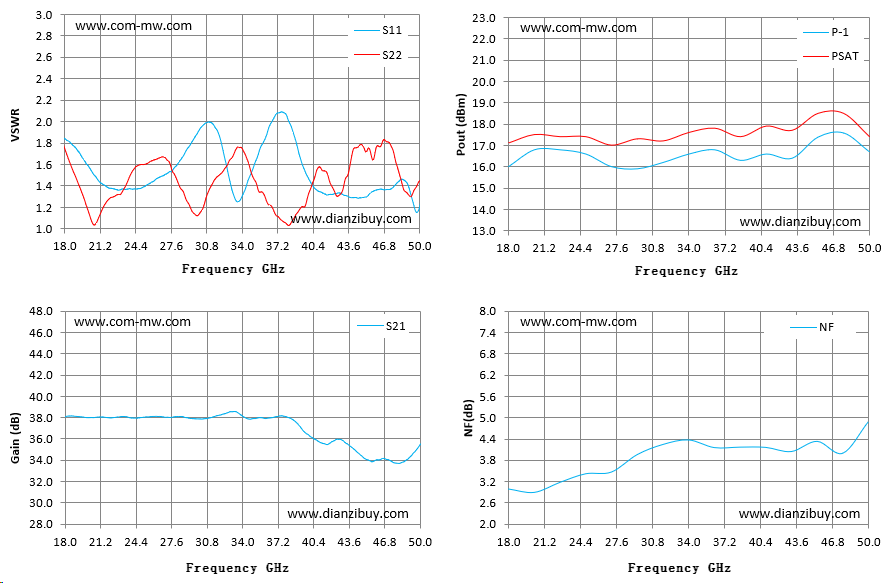

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Consider amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
