LNA
15~25GHz, Gain18dB, Noise figure2.2dB, P-1dB3dBm, SMA
- DLNA8-15-25G-2311
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Small size, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 15 | ~ | 25 | GHz |
| Gain | 18 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 2.2 | 2.8 | dB | |
| VSWR | 2 | 2.4 | ||
| P-1dB | 3 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 100mA |
| Reverse isolation | 45dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | Noise | P-1dB |
| 14 | 1.43 | 1.83 | 20.1 | 2.15 | 5.14 |
| 14.86 | 1.69 | 1.36 | 19.83 | 1.93 | 5.46 |
| 15.71 | 1.9 | 1.09 | 19.54 | 1.86 | 5.79 |
| 16.57 | 1.93 | 1.14 | 19.39 | 1.83 | 6.1 |
| 17.43 | 1.76 | 1.21 | 19.44 | 1.88 | 6 |
| 18.29 | 1.55 | 1.22 | 19.54 | 1.78 | 6.05 |
| 19.14 | 1.3 | 1.23 | 19.67 | 1.88 | 6.1 |
| 20 | 1.25 | 1.23 | 19.75 | 1.74 | 5.9 |
| 20.86 | 1.62 | 1.18 | 19.79 | 1.9 | 6 |
| 21.71 | 2.01 | 1.15 | 19.83 | 1.98 | 6.1 |
| 22.57 | 2.3 | 1.3 | 19.98 | 2.06 | 6.02 |
| 23.43 | 2.23 | 1.56 | 20.52 | 2.15 | 5.84 |
| 24.29 | 1.62 | 1.86 | 21.29 | 2.28 | 5.8 |
| 25.14 | 1.18 | 2.16 | 21.57 | 2.15 | 4.7 |
| 26 | 1.71 | 2.48 | 20.61 | 2.17 | 4.57 |

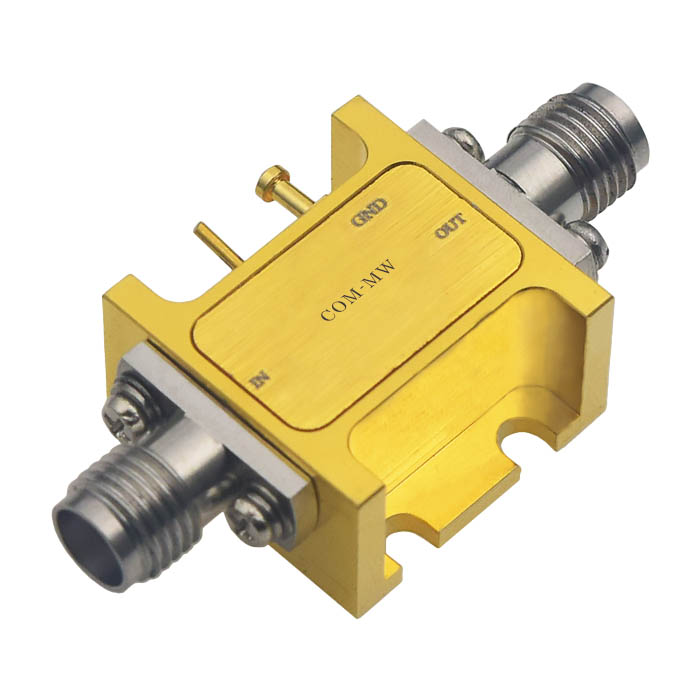

Reference picture

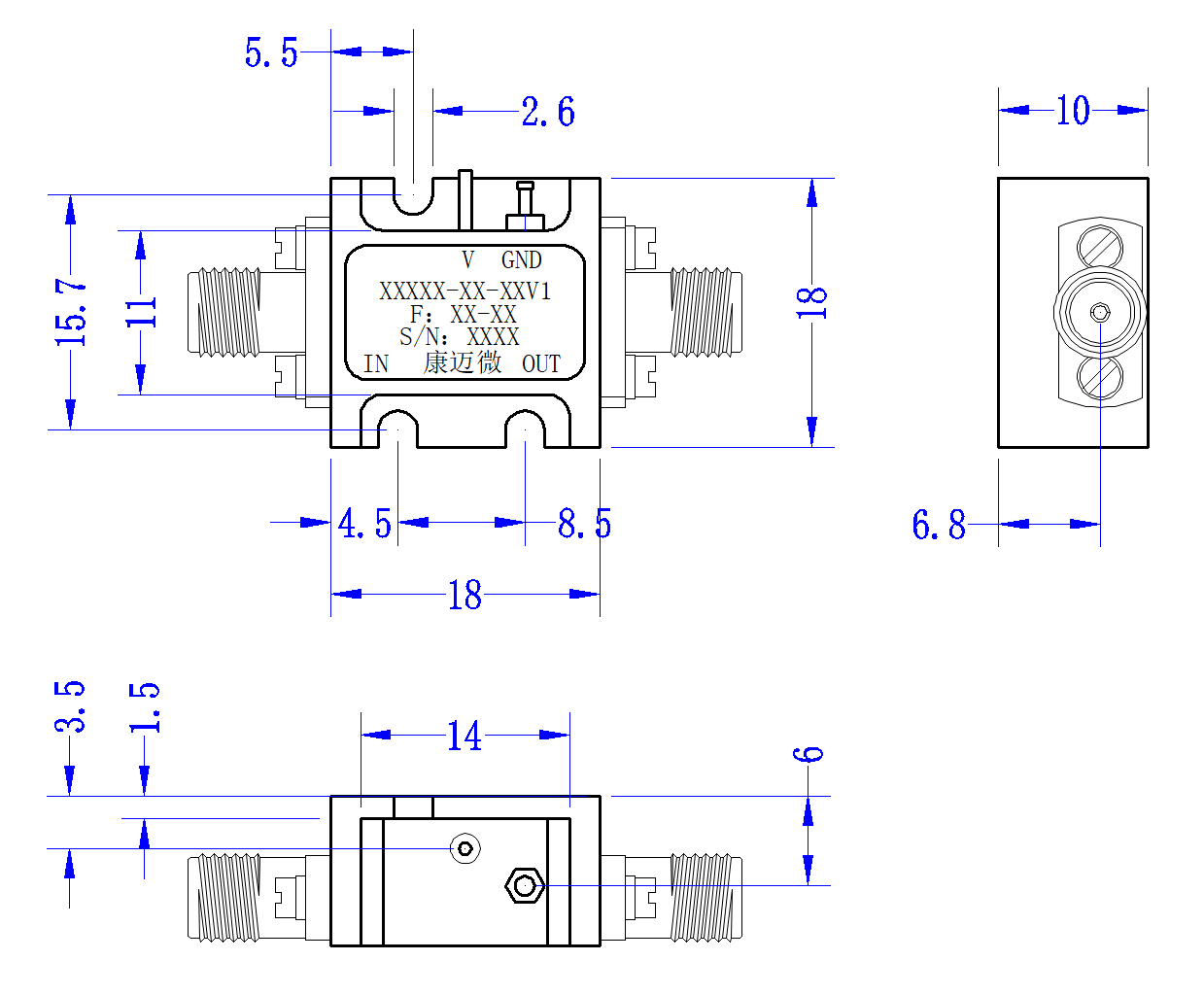

Configuration(mm)

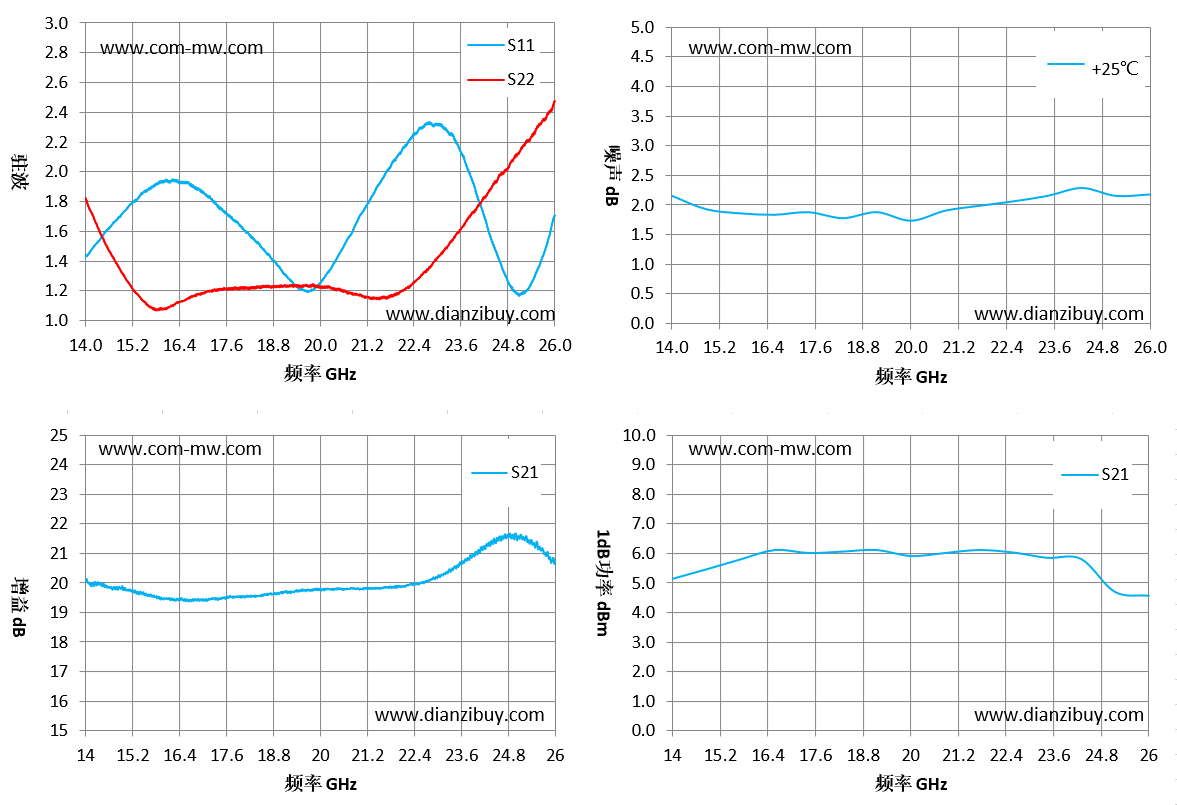

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
