LNA
2~8GHz, Gain26dB, Noise figure1.6dB, P-1dB15dBm, SMA
- DLNA8-2-8G-2918
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 8 | GHz |
| Gain | 26 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 1.3 | 1.6 | dB | |
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | 25 ℃ noise | S21 P-1dB |
| 2 | 1.56 | 1.21 | 26.85 | 1.49 | 16.4 |
| 2.5 | 1.68 | 1.27 | 27.01 | 0.96 | 17.2 |
| 3 | 1.73 | 1.25 | 27.09 | 1.11 | 16.7 |
| 3.5 | 1.73 | 1.15 | 27.2 | 0.88 | 17 |
| 4 | 1.66 | 1.01 | 27.35 | 0.74 | 17.1 |
| 4.5 | 1.58 | 1.16 | 27.5 | 1.01 | 17 |
| 5 | 1.57 | 1.32 | 27.66 | 1.05 | 16.7 |
| 5.5 | 1.59 | 1.42 | 27.99 | 0.91 | 16.7 |
| 6 | 1.62 | 1.37 | 28.44 | 1.01 | 16.6 |
| 6.5 | 1.62 | 1.21 | 28.89 | 1.08 | 16.3 |
| 7 | 1.49 | 1.19 | 29.19 | 1.01 | 16.2 |
| 7.5 | 1.36 | 1.44 | 29.1 | 1.07 | 15.9 |
| 8 | 1.34 | 1.72 | 28.65 | 1.15 | 16.2 |
| 8.5 | 1.6 | 1.75 | 27.96 | 1.3 | 16.5 |
| 9 | 2.01 | 1.66 | 27.03 | 1.28 | 16.8 |
Reference picture
Configuration(mm)

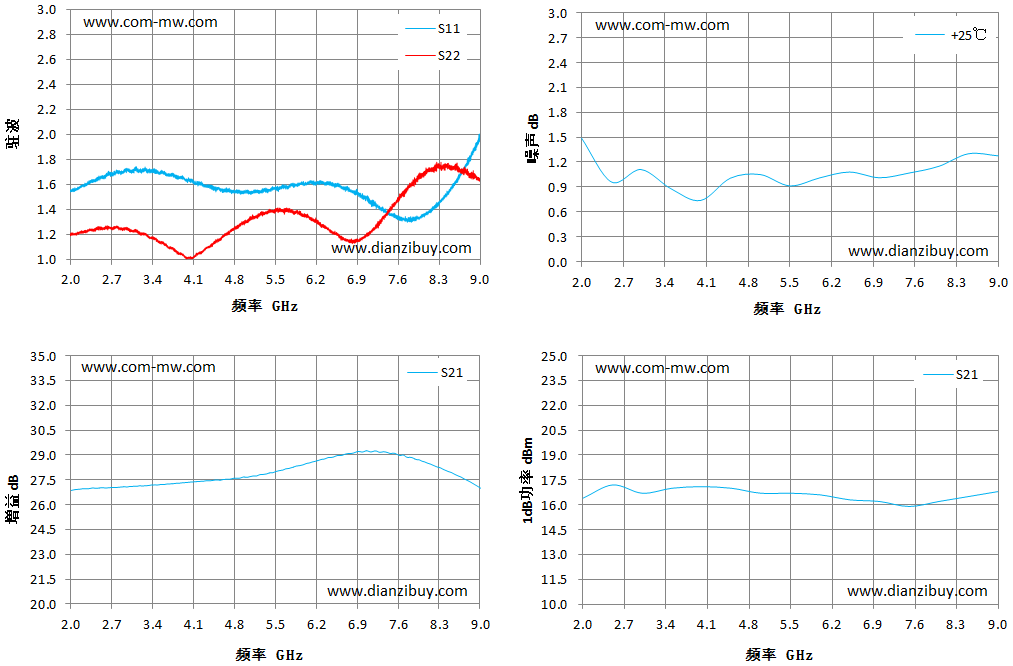

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
