LNA
0.009~1000MHz, Gain30dB, Noise figure1.5dB, P-1dB15dBm, SMA
- DLNA8-0.009-1000-1034
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 1000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 2 | dB | ||
| Noise figure | 1.5 | 2 | dB | |
| VSWR | 2 | |||
| P-1dB | 10 | 15 | dBm | |
| OIP3 | 30 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) | |
| 0.009 | 16.1 | / | 1.26 | 1.23 | 33.3 | |
| 100 | 17 | 1.05 | 1.67 | 1.17 | 33.6 | |
| 200 | 17.8 | 1.13 | 1.49 | 1.12 | 34.3 | |
| 300 | 18.1 | 1.23 | 1.38 | 1.11 | 34.7 | |
| 400 | 18.5 | 1.25 | 1.37 | 1.12 | 34.9 | |
| 500 | 18.4 | 1.31 | 1.37 | 1.13 | 34.9 | |
| 600 | 18.3 | 1.38 | 1.37 | 1.11 | 34.8 | |
| 700 | 18.3 | 1.38 | 1.33 | 1.09 | 34.5 | |
| 800 | 18.2 | 1.39 | 1.26 | 1.13 | 34.3 | |
| 900 | 18.3 | 1.43 | 1.16 | 1.21 | 34.1 | |
| 1000 | 18.2 | 1.34 | 1.12 | 1.32 | 33.8 |
Reference picture

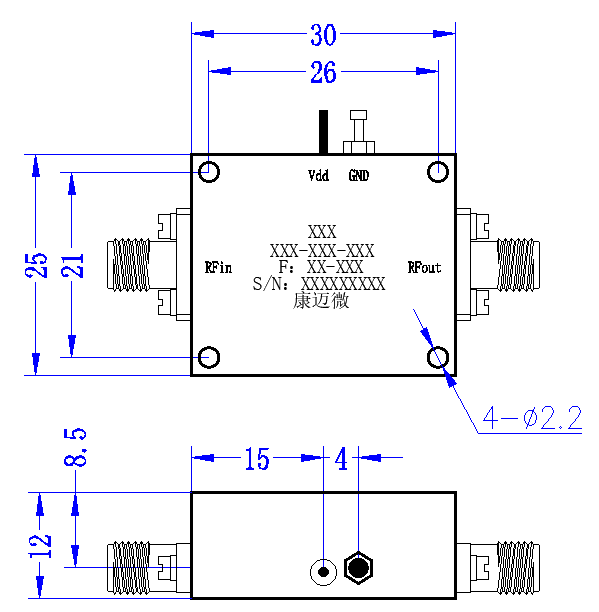

Configuration(mm)

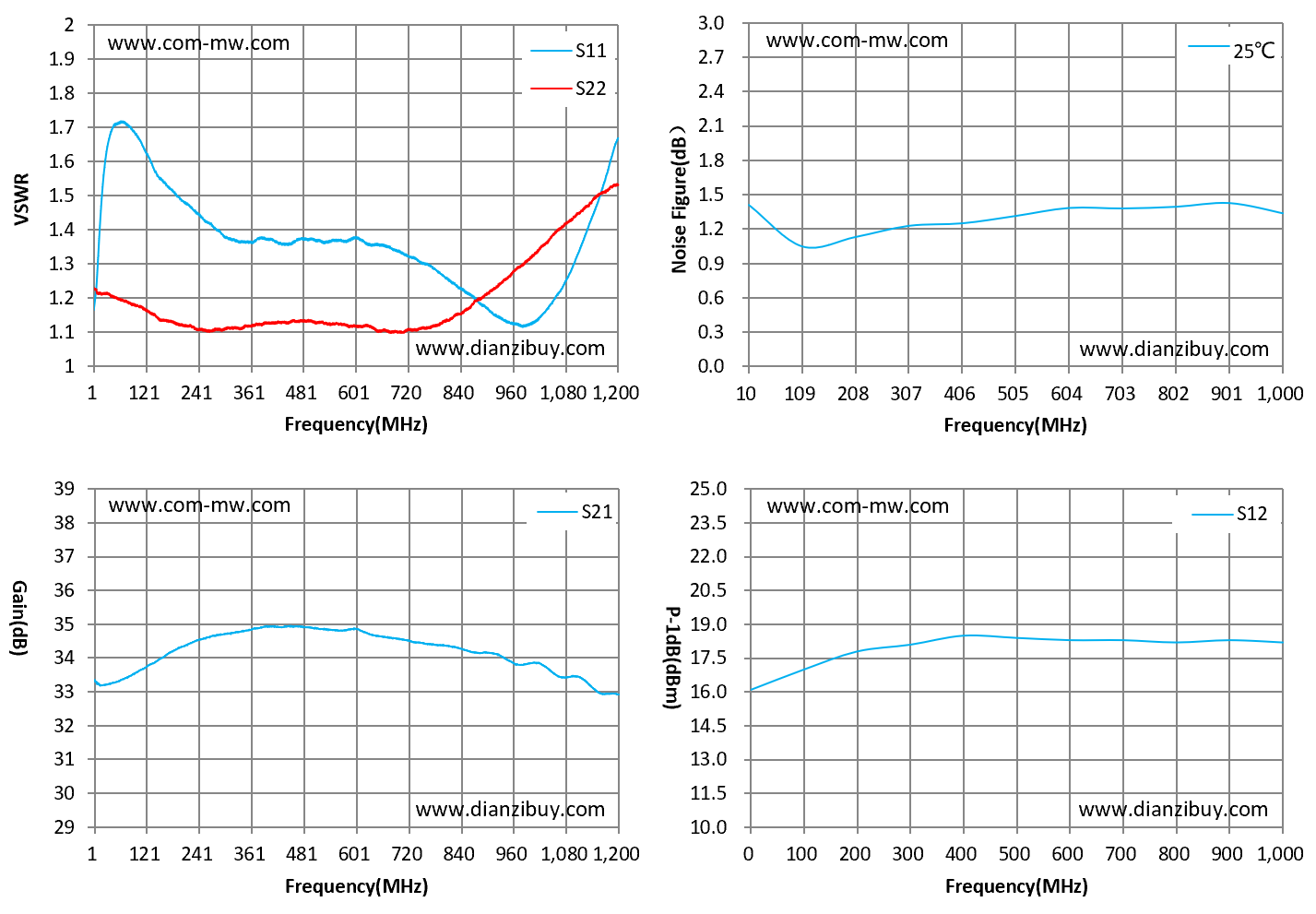

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
