Power amplifier
1.24~2.26GHz, Gain35dB, Psat26dBm, SMA
- DPA8-1.24-2.26G-3603
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1.24 | ~ | 2.26 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 25 | dBm | ||
| Psat | 26 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 20 | dBc | ||
| OIP3 | 35 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency GHz | S11 SWR | S22 SWR | GaindB | NFdB | P-1 OUT dBm | Psat dBm |
| 0.01 | 104.64 | 404.89 | -9.08 | 29.65 | / | / |
| 0.72 | 2.11 | 1.29 | 36.49 | 1.17 | 27.2 | 28.5 |
| 1.44 | 1.81 | 1.27 | 37.79 | 1.15 | 27.8 | 29.4 |
| 2.15 | 1.83 | 1.24 | 37.49 | 1.45 | 27.2 | 28.8 |
| 2.86 | 1.71 | 1.19 | 37.43 | 1.14 | 27.1 | 28.2 |
| 3.58 | 1.44 | 1.16 | 37.53 | 1.37 | 27.4 | 28.3 |
| 4.29 | 1.19 | 1.16 | 37.42 | 1.32 | 27.1 | 27.9 |
| 5.01 | 1.08 | 1.1 | 37.12 | 1.27 | 26.9 | 27.5 |
| 5.72 | 1.31 | 1.12 | 36.88 | 1.43 | 25.4 | 26.5 |
| 6.43 | 1.5 | 1.14 | 36.57 | 1.27 | 25 | 25.9 |
| 7.15 | 1.42 | 1.26 | 36.45 | 1.49 | 25 | 26.4 |
| 7.86 | 1.11 | 1.38 | 36.52 | 1.52 | 25.7 | 26.8 |
| 8.57 | 1.18 | 1.5 | 36.26 | 1.6 | 26 | 26.7 |
| 9.29 | 1.46 | 1.56 | 35.63 | 1.69 | 25.7 | 26.3 |
| 10 | 2.15 | 1.61 | 33.21 | 1.74 | 24.1 | 25.3 |

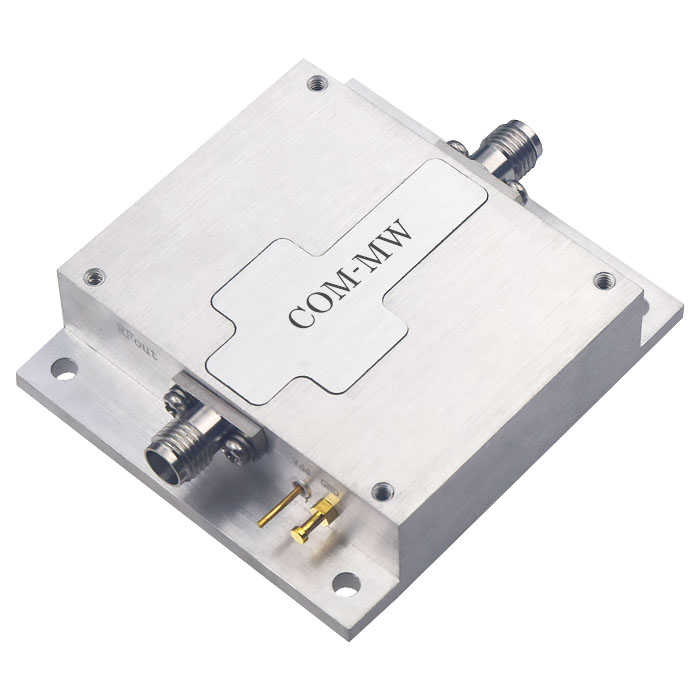

Reference picture

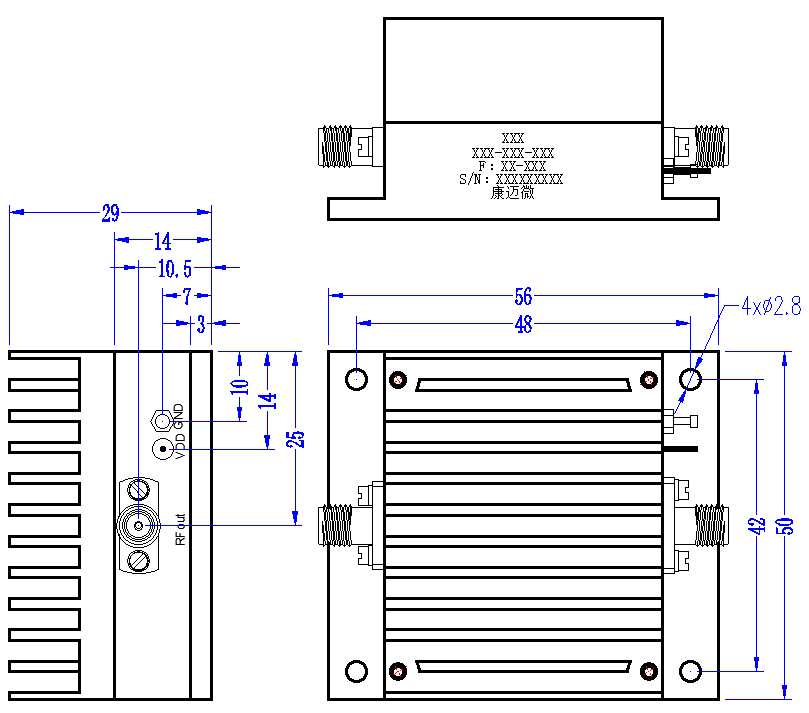

Configuration

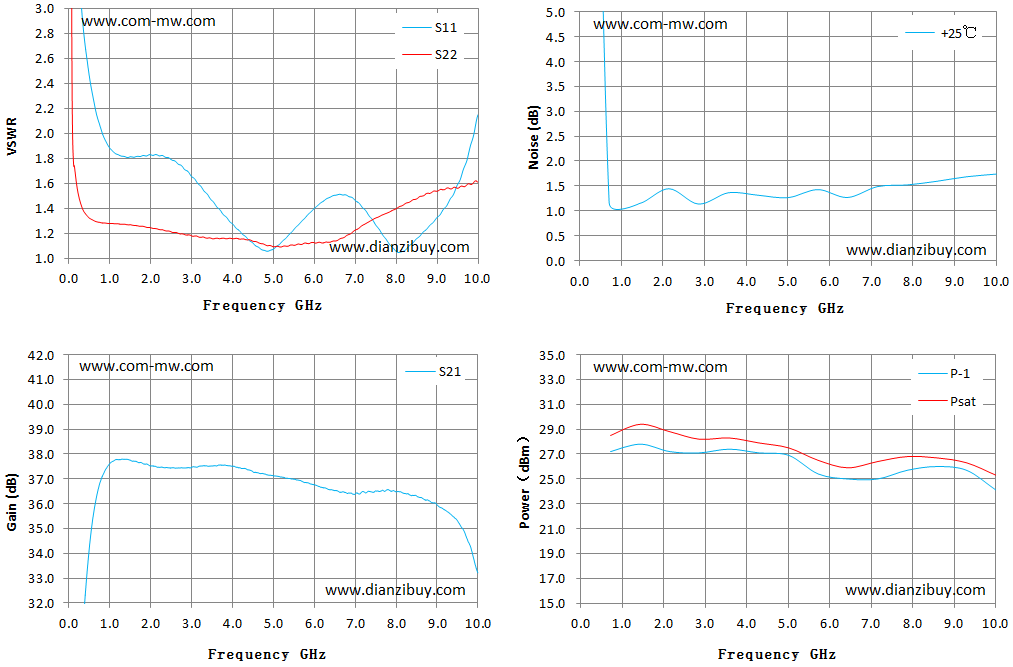

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
