LNA
18~31GHz, Gain50dB, Noise figure4dB, P-1dB10dBm, 2.92, Input with filter
- DLNA8-18-30G-1542
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Input with RF filter, SMA port power supply
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 31 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 4 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +12-15V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Filter specifications | Input with filter ≥40dB@DC-16200MHz&33000MHz |
| Other | Power supply port SMA-K, RF input port N-50J, for outdoor use, waterproof. |

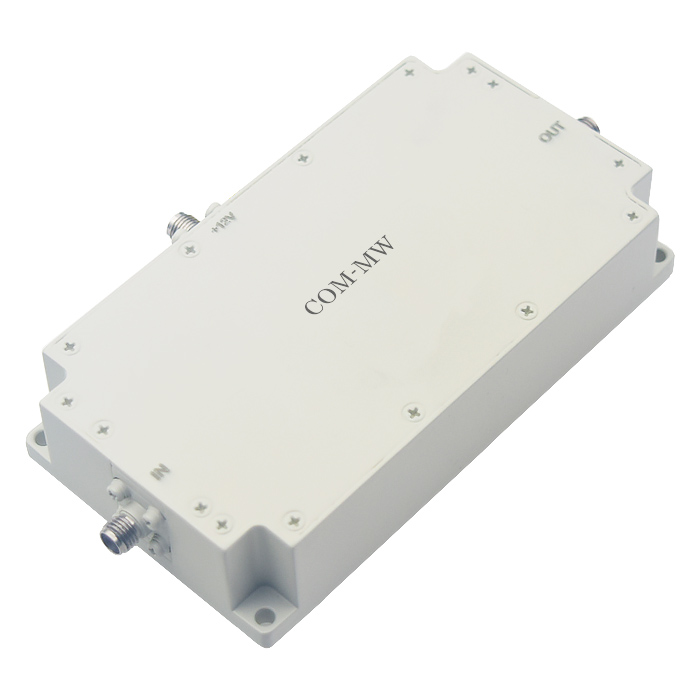

Reference picture

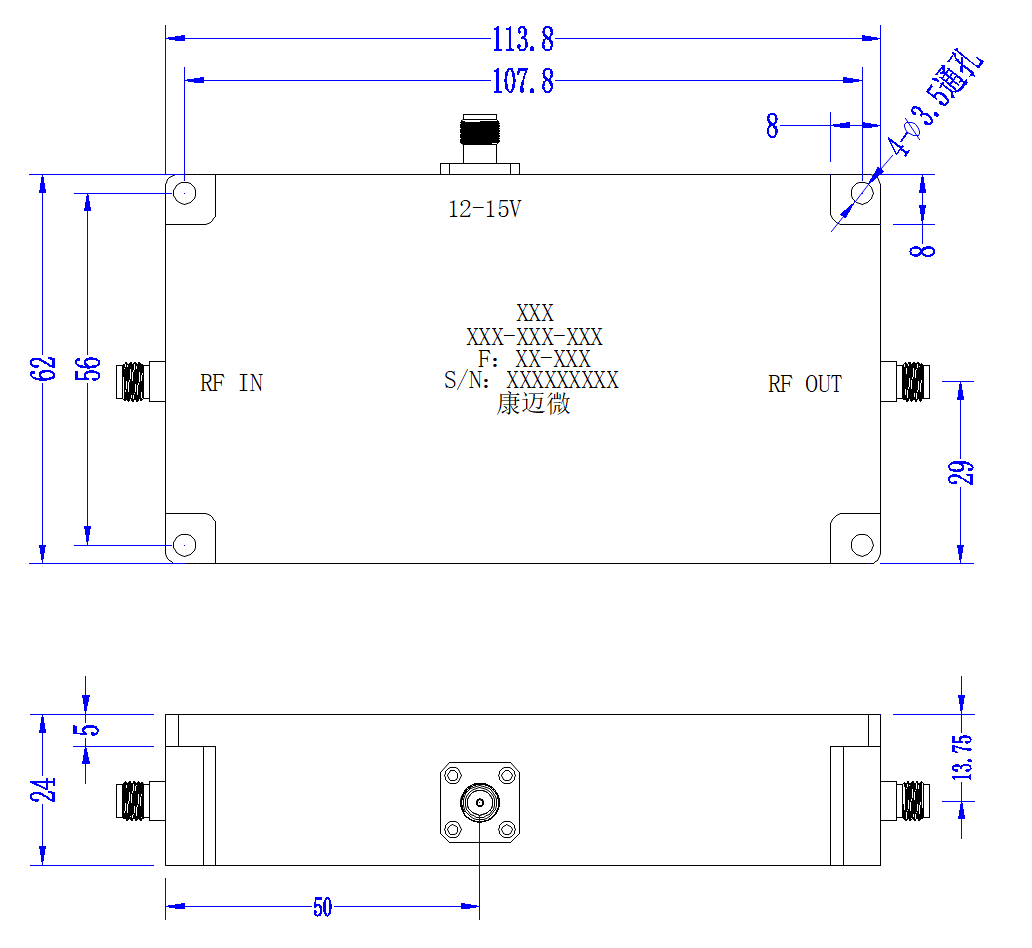

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
