LNA

100~6000MHz, Gain32dB, Noise figure1.8dB, P-1dB15dBm, OIP322dBm, SMA

  • DLNA-100-6000-14
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
3D Outline Drawing

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency100~6000MHz
Gain32dB
Gain flatness±2dB
Noise figure1.8dB
VSWR2
P-1dB15dBm
OIP322dBm

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceWhite
Working voltage+5V
Working current200mA
Operation Temp.-30~+70℃ Design assurance

Typical test data

Frequency(MHz)S11 VSWRS22 VSWRS21 gainS21 NoiseP-1dB
1001.911.6135.551.317.2
5931.541.1135.681.117.56
10861.221.3235.790.8617.41
15791.421.6835.481.2616.88
20711.771.8735.241.0216.65
25641.481.4935.461.2716.73
30571.281.2535.561.216.32
35501.91.834.551.0315.92
40431.751.634.061.2316.03
45361.21.434.241.3215.82
50291.391.7533.461.4615.02
55211.351.6232.711.415.88
60141.251.1632.41.5115.2
65071.641.2532.61.4514.38
70001.861.5632.431.7513.77

Reference picture

Configuration(mm)

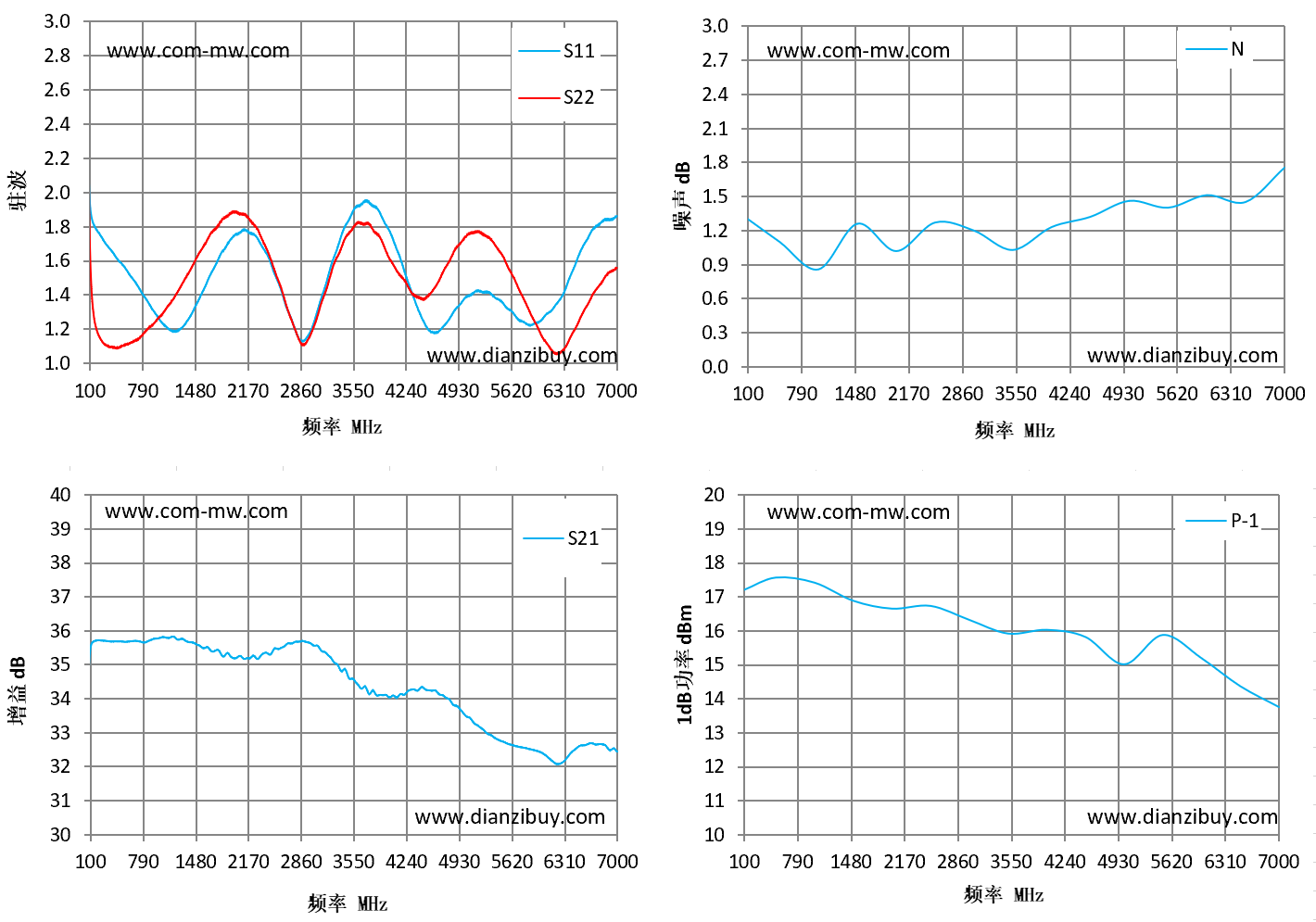

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
