LNA
7~18GHz, Gain45dB, Noise figure2.5dB, P-1dB15dBm, SMA
- XKU_LNA7-18G-01
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high gain.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 7 | ~ | 18 | GHz |
| Gain | 45 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 6 | 1.33 | 1.16 | 47.6 | 2.21 | 19.4 |
| 6.93 | 1.51 | 1.35 | 47.48 | 2.19 | 19.05 |
| 7.86 | 1.58 | 1.58 | 46.87 | 2.03 | 19.07 |
| 8.79 | 1.73 | 1.72 | 46.5 | 2.19 | 18.8 |
| 9.71 | 1.94 | 1.77 | 46.91 | 2.15 | 19.27 |
| 10.64 | 2.02 | 1.87 | 47.28 | 2.26 | 19.47 |
| 11.57 | 1.82 | 1.73 | 47.49 | 2.2 | 19.5 |
| 12.5 | 1.49 | 1.35 | 47.51 | 2.41 | 19.45 |
| 13.43 | 1.21 | 1.37 | 47.27 | 2.22 | 19.5 |
| 14.36 | 1.11 | 1.63 | 47.27 | 2.2 | 19.33 |
| 15.29 | 1.27 | 1.49 | 47.91 | 2.18 | 19.33 |
| 16.21 | 1.49 | 1.21 | 48.27 | 2.26 | 19.3 |
| 17.14 | 1.7 | 1.57 | 48.3 | 2.3 | 18.7 |
| 18.07 | 2.22 | 1.65 | 47.68 | 2.47 | 18.78 |
| 19 | 2.98 | 1.26 | 47.86 | 2.34 | 18.66 |
Reference picture
Configuration(mm)

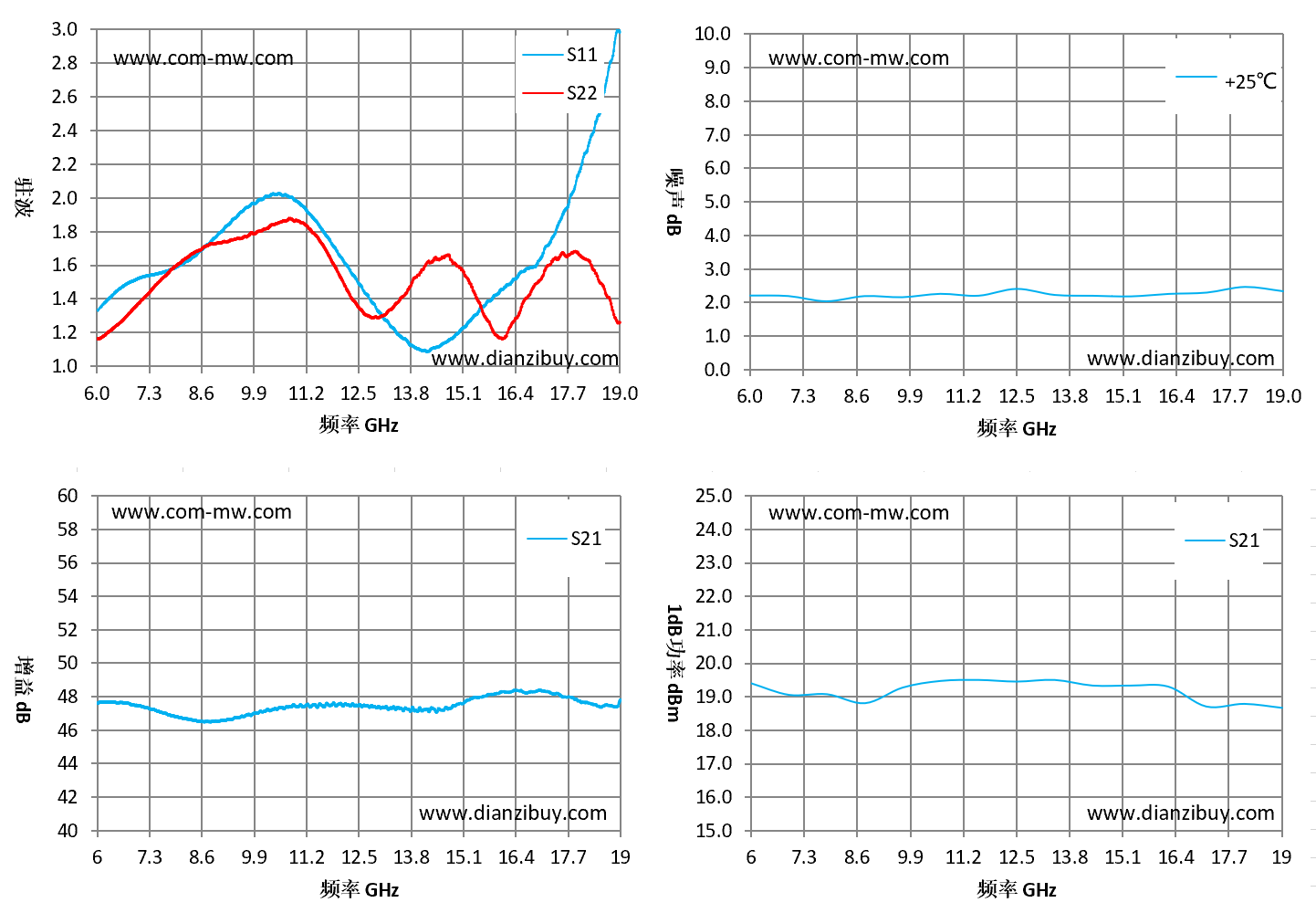

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
