LNA
0.5~18GHz, Gain40dB, Noise figure3dB, P-1dB10dBm, N
- DLNA8-0.5-18G-2838
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.5 | ~ | 18 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 1.8 | 2.5 | ||
| P-1dB | 10 | dBm | ||
| Max input power | 0 | dBm |
Other parameters
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Anodizing treatment (blue) |
| Operation Temp. | -10~+50℃ Design assurance |
| Other | 支持220V交流供电和直流供电 |
Instructions for use
| 1 | Power supply method 1 | Input 220v AC |
| 2 | Power supply method 2 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 3 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |

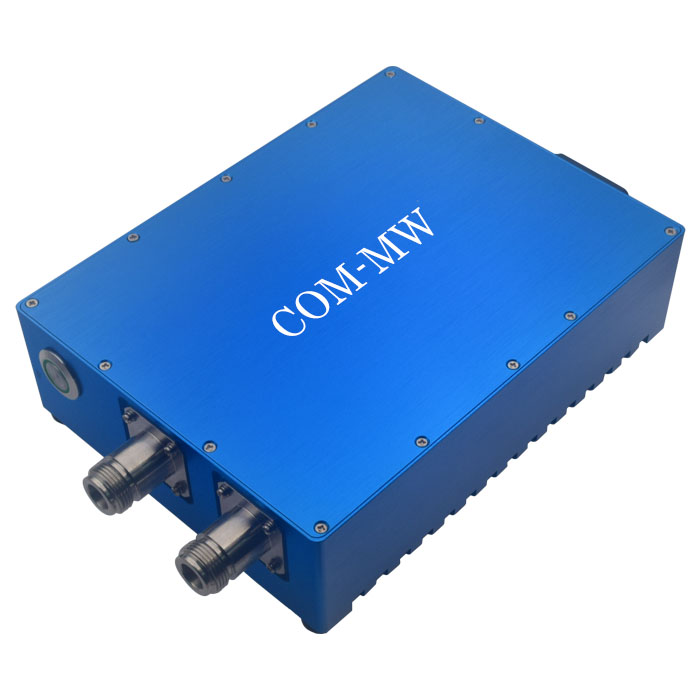

Reference picture
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
