LNA
2200~2400MHz, Gain30dB, Noise figure0.9dB, P-1dB15dBm, N
- DLNA8-2200-2400-1595
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2200 | ~ | 2400 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 1 | dB | ||
| Noise figure | 0.9 | dB | ||
| Input VSWR | 1.25 | |||
| Output VSWR | 1.5 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 40 | dBm |
Other parameters
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Black |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |

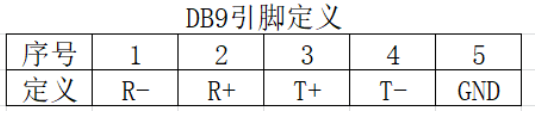

Pin Definition

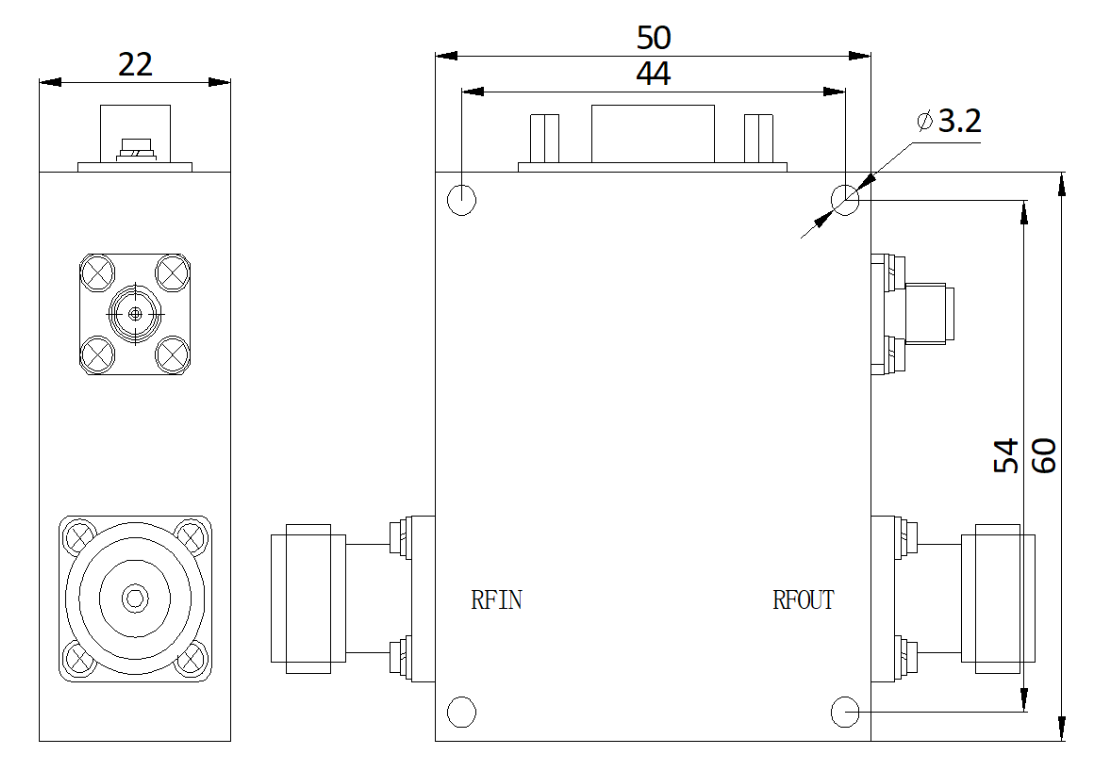

Configuration(mm)
Other
| 1 | Power supply port: SMA-K (12-15V). |
| 2 | Monitoring communication interface: RS422. |
| 3 | LNA has limited amplitude protection |
| 4 | LNA has current, voltage, and temperature monitoring functions, which can be displayed in real-time on ACU software. |
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
