Power amplifier
5~26GHz, Gain35dB, Psat21dBm, SMA
- DPA8-5-26G-3865
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 5 | ~ | 26 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±4 | dB | ||
| Noise figure | 3.5 | 4.5 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 20 | dBm | ||
| Psat | 21 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 20 | dBc | ||
| OIP3 | 30 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 4 | 1.82 | 1.28 | 43.8 | 28.3 | 28.75 | 3.92 |
| 5.61 | 1.42 | 1.25 | 44.72 | 29.2 | 29.5 | 2.62 |
| 7.21 | 1.84 | 1.13 | 43.13 | 28.5 | 28.85 | 2.66 |
| 8.82 | 1.65 | 1.13 | 42.5 | 27.7 | 28.3 | 2.75 |
| 10.43 | 1.27 | 1.32 | 42.97 | 28.6 | 29.1 | 2.64 |
| 12.04 | 1.31 | 1.35 | 43.5 | 28 | 28.5 | 2.6 |
| 13.64 | 1.72 | 1.77 | 42.35 | 26.9 | 27.3 | 2.59 |
| 15.25 | 1.7 | 1.83 | 42.05 | 26.2 | 26.5 | 2.76 |
| 16.86 | 1.23 | 1.74 | 41.42 | 25.2 | 26.6 | 2.84 |
| 18.46 | 1.13 | 1.84 | 41.66 | 25.2 | 26.9 | 2.97 |
| 20.07 | 1.21 | 1.42 | 41.74 | 26.1 | 27.3 | 3.13 |
| 21.68 | 1.31 | 1.42 | 41.51 | 26.3 | 27.3 | 3.31 |
| 23.29 | 1.91 | 1.72 | 40.44 | 25 | 25.6 | 3.64 |
| 24.89 | 2.13 | 2.04 | 39.29 | 22.8 | 23.5 | 4.04 |
| 26.5 | 2.3 | 2.1 | 34.94 | 18.63 | 19.4 | 4.32 |

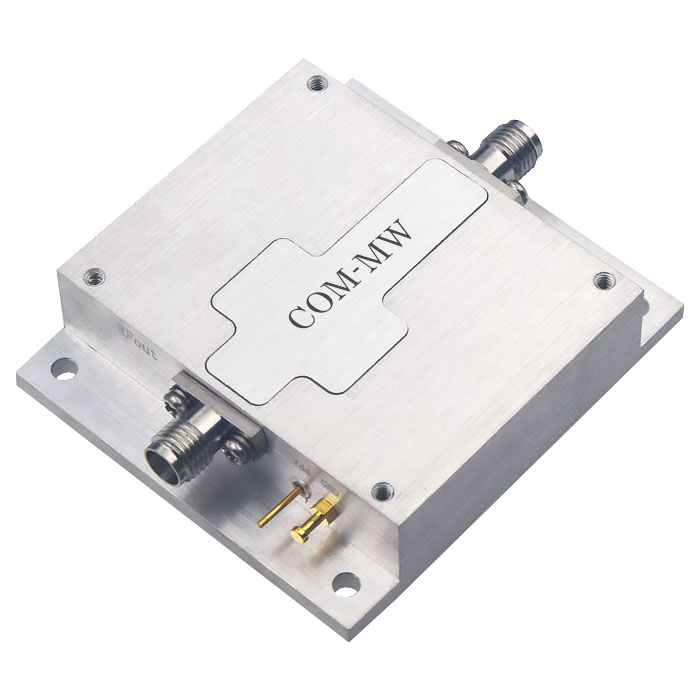

Reference picture

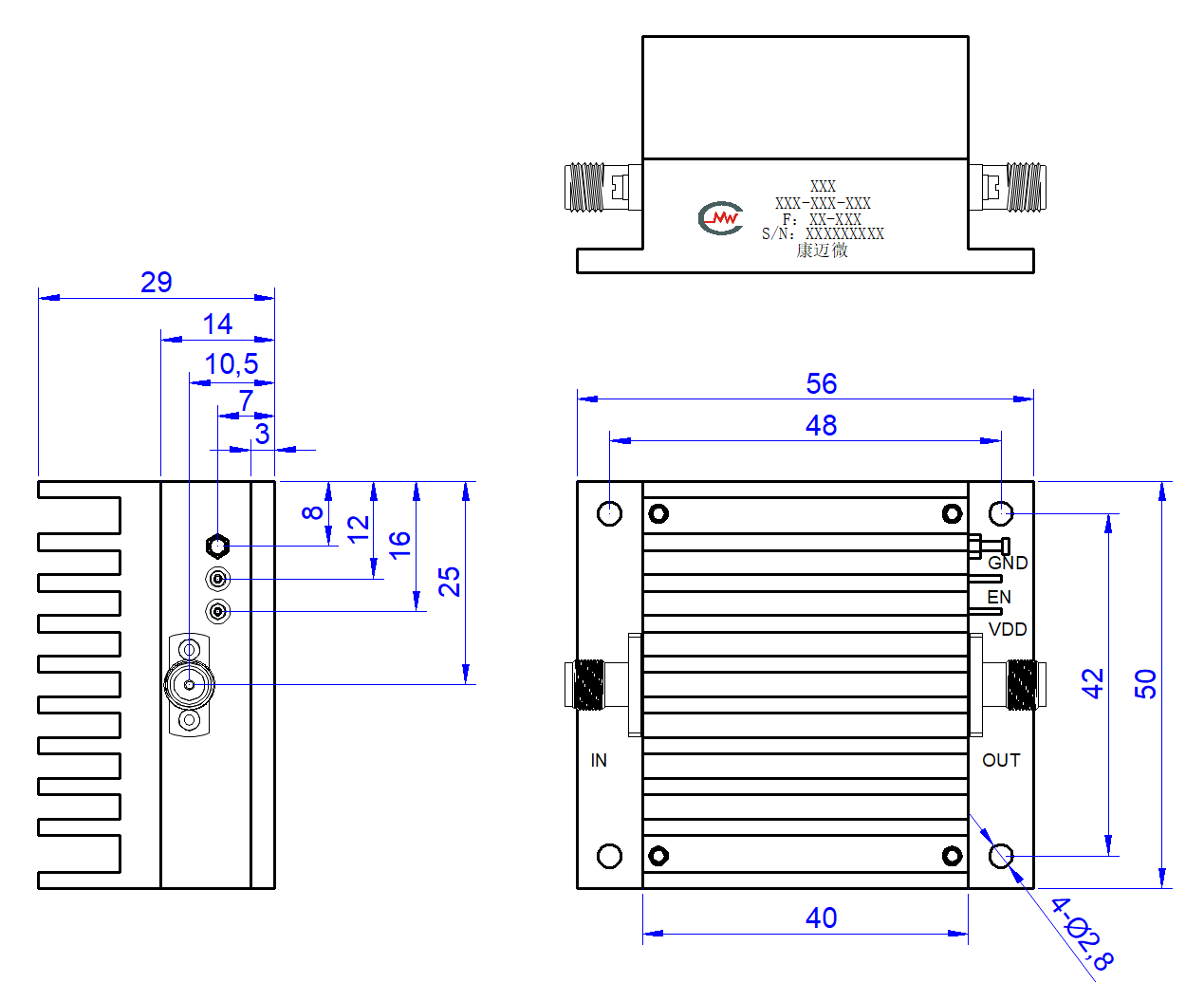

Configuration

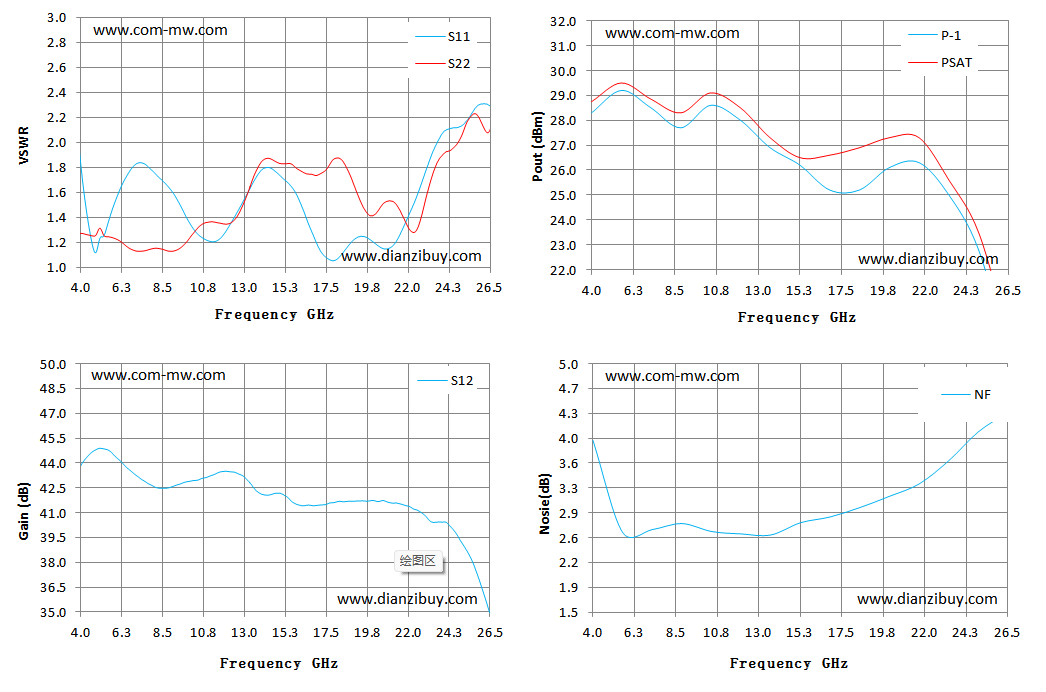

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
