LNA

18~40GHz, Gain40dB, Noise figure5dB, P-1dB15dBm, 2.92, Limiting amplifier

  • DLNA8-18-40G-2457
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Product features

Broadband, low noise, input limiting protection

Main specifications

ParametersMinTypicalMaxUnits
Frequency18~40GHz
Gain40dB
Gain flatness±2.5dB
Noise figure4.65dB
VSWR2.5
P-1dB15dBm
Input limiting power15dBm
Max input power2W

Other parameters

Connector2.92-F detachable, Pin 0.3mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance
OtherLimiting amplifier

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gainS21 NoiseS21 P-1dB
171.332.4547.063.1916
18.711.152.0547.093.3416.5
20.431.561.3446.483.716.6
22.141.891.1946.093.5816.2
23.862.081.4845.573.6916
25.572.121.7144.333.9916
27.292.171.7244.453.7116.3
291.771.8945.034.1916.8
30.711.571.5744.44.0915.6
32.432.031.3843.9416.5
34.142.281.5544.994.5417
35.862.061.5446.484.4616.6
37.571.621.846.614.3217.1
39.291.611.9645.544.2417.1
411.481.844.464.3616.8

Reference picture

Configuration(mm)

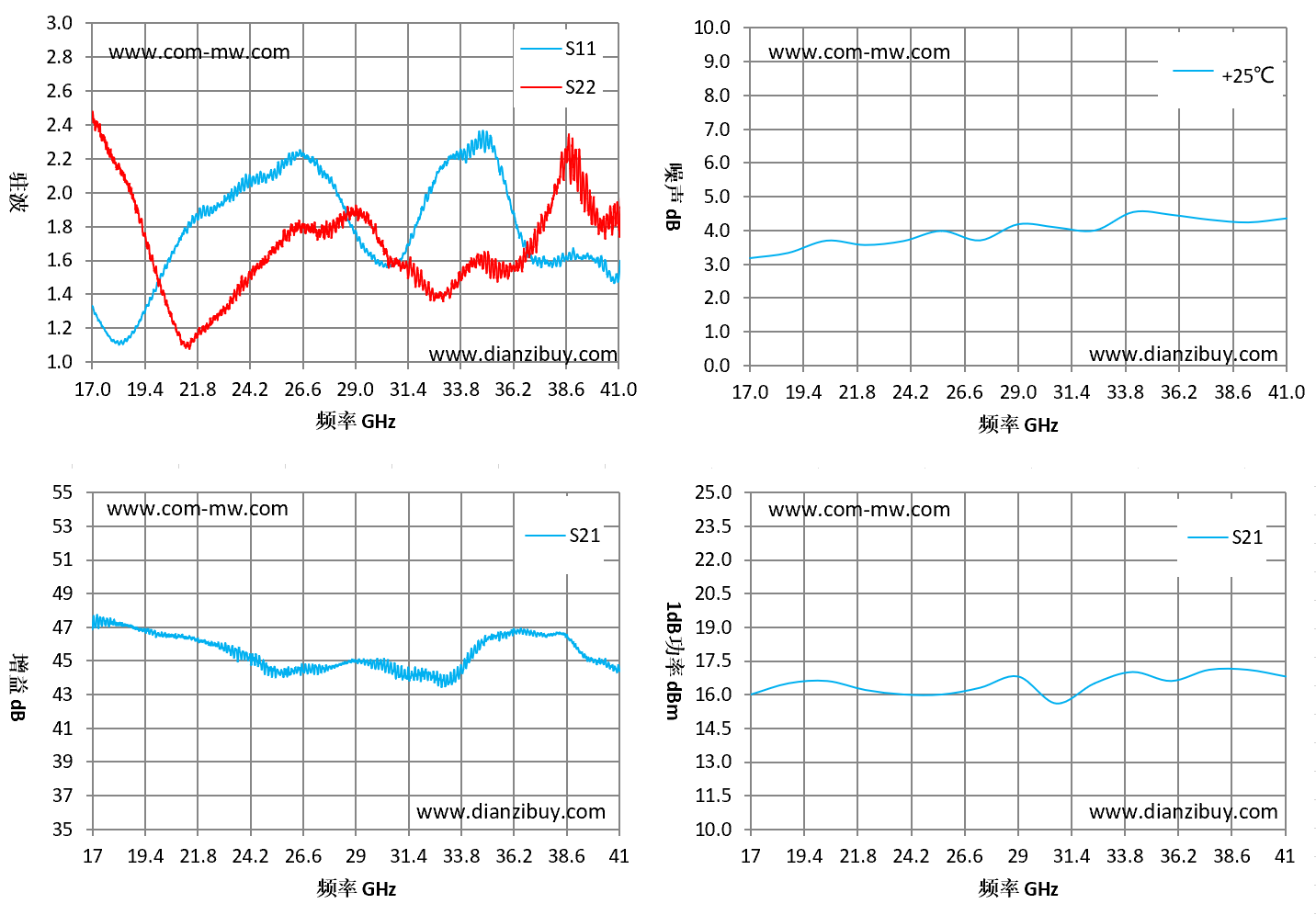

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
