LNA

8000~12000MHz, Gain35dB, Noise figure1.5dB, P-1dB10dBm, SMA

  • DLNA8-8-12G-3875
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency8000~12000MHz
Gain35dB
Gain flatness1.2dB
Noise figure1.5dB
VSWR2
P-1dB10dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Working voltage+15V
Working current150mA
Operation Temp.-40~+60℃ Design assurance

Typical test data

FrequencyS11S22GainP-1PSATNosie
GHzVSWRVSWRdBdBmdBmdB
61.31.3839.1619.620.31.54
6.571.031.1438.5519.720.51.44
7.141.351.0837.6919.920.81.59
7.711.671.1936.8319.720.71.4
8.291.831.236.1919.720.81.4
8.861.881.1935.8219.520.81.49
9.431.851.1435.6419.720.81.3
101.811.1235.619.720.71.31
10.571.631.1235.6619.320.41.41
11.141.421.1335.7219.120.31.31
11.711.21.1835.7219.320.51.46
12.291.271.2135.4319.220.11.44
12.861.711.2634.7519.520.11.7
13.432.381.2831.111919.51.6
143.211.2930.1217.217.92.25

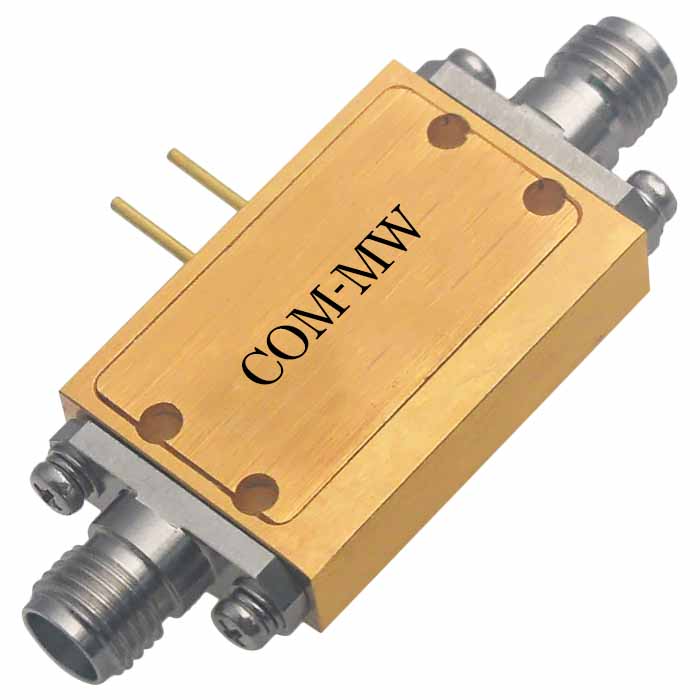

Reference picture

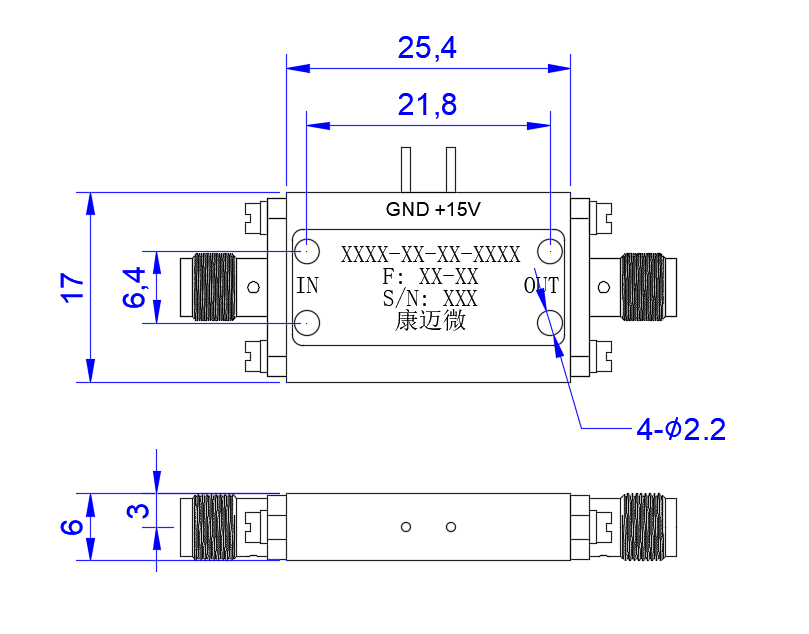

Configuration(mm)

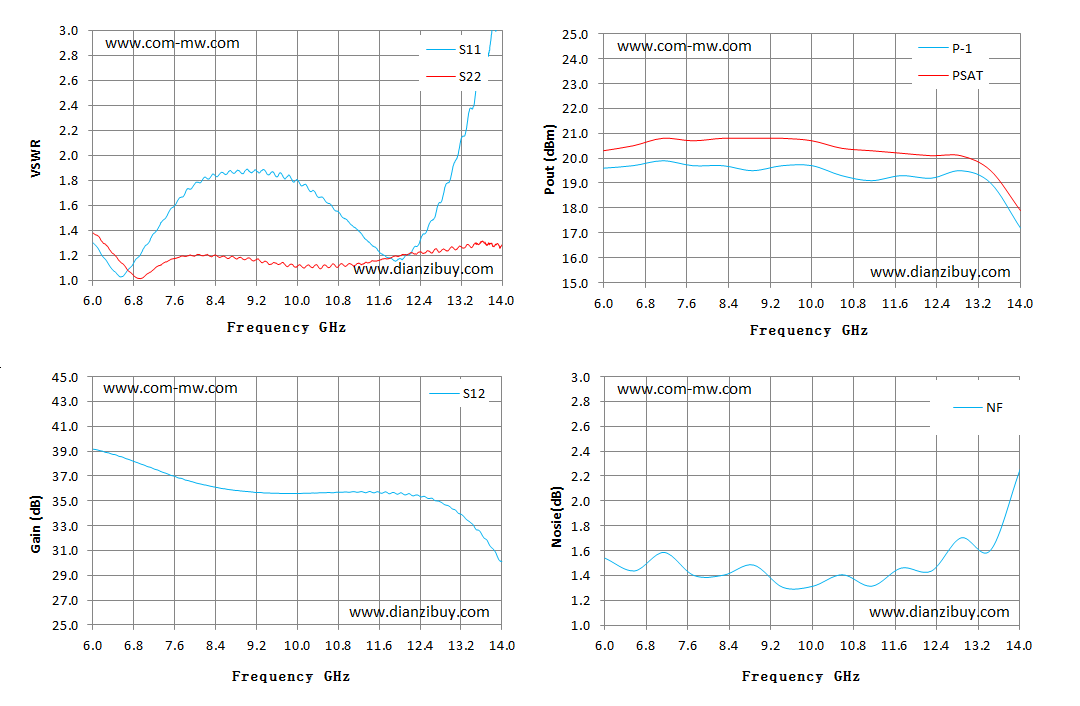

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
