2~18GHz, Gain15dB, Noise figure4.2dB, P-1dB13dBm, SMA
- DLNA7-2-18G-966
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | 15 | dB | ||
| Gain flatness | ±1.3 | dB | ||
| Noise figure | 4.2 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 10 | 13 | dBm | |
| Max input power | 50 | W |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Output port power supply |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | NF dB | P-1 dBm | Psat dBm |
| 1.00 | 4.05 | 7.02 | 14.09 | 2.89 | 3.70 | 5.87 |
| 2.29 | 2.02 | 1.10 | 24.03 | 1.23 | 13.50 | 13.70 |
| 3.57 | 1.93 | 1.22 | 24.29 | 1.15 | 14.44 | 14.84 |
| 4.86 | 1.67 | 1.84 | 24.36 | 1.22 | 13.85 | 14.50 |
| 6.14 | 1.56 | 1.54 | 24.30 | 1.36 | 14.72 | 15.17 |
| 7.43 | 1.55 | 1.35 | 24.09 | 1.68 | 14.15 | 14.81 |
| 8.71 | 1.60 | 1.38 | 23.57 | 2.09 | 14.43 | 15.20 |
| 10.00 | 1.54 | 1.24 | 23.48 | 2.01 | 14.79 | 15.67 |
| 11.29 | 1.48 | 1.20 | 23.95 | 2.04 | 14.66 | 15.67 |
| 12.57 | 1.26 | 1.63 | 23.55 | 2.20 | 15.12 | 16.21 |
| 13.86 | 1.72 | 1.41 | 23.33 | 2.24 | 14.54 | 16.22 |
| 15.14 | 1.81 | 1.40 | 23.36 | 2.54 | 14.40 | 15.93 |
| 16.43 | 1.55 | 1.22 | 24.08 | 2.69 | 14.43 | 16.23 |
| 17.71 | 1.64 | 1.20 | 24.88 | 2.95 | 13.50 | 15.96 |
| 19.00 | 1.84 | 3.85 | 23.43 | 3.81 | 13.83 | 15.68 |

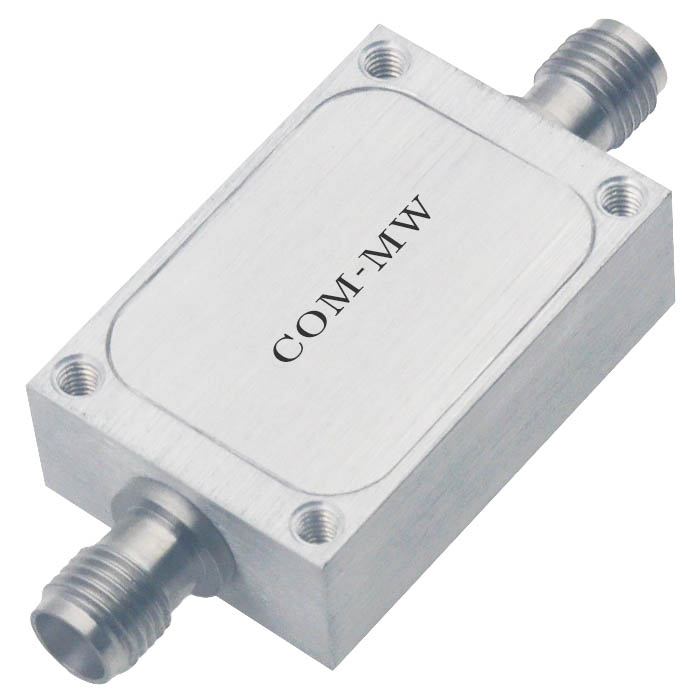

Reference picture

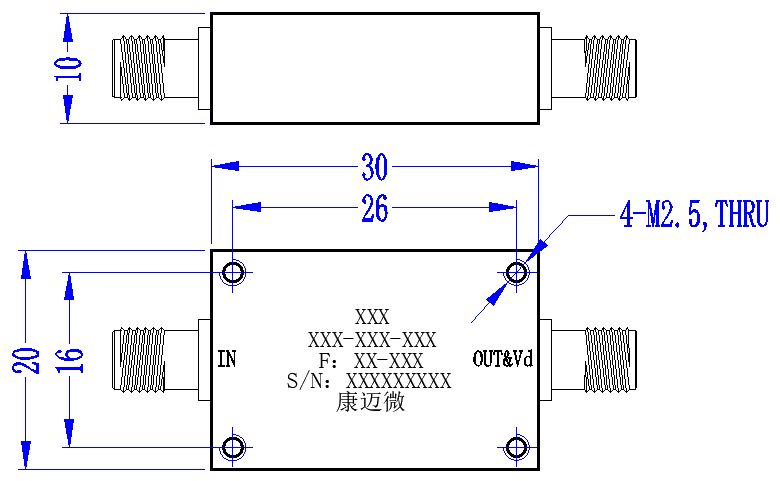

Configuration(mm)

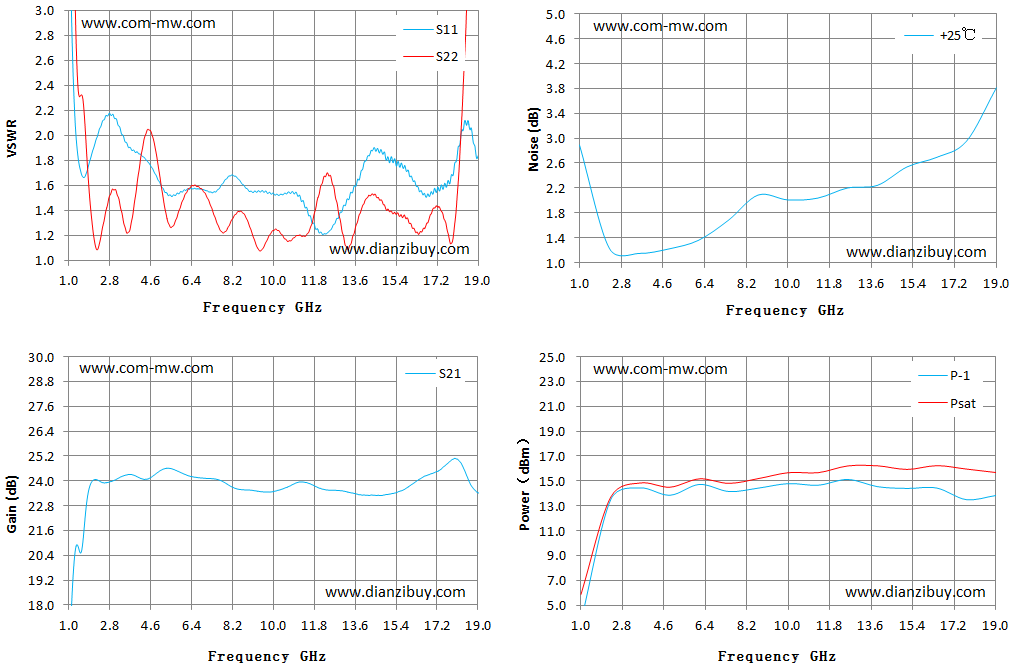

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
