LNA

1000~2000MHz, Gain50dB, Noise figure1dB, P-1dB Output0dBm, SMA

  • DLNA8-1-2-4075
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency1000~2000MHz
Gain50dB
Gain flatness±1dB
Noise figure1dB
VSWR1.5
Input P-1dB power-50dBm
P-1dB Output0dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

FrequencyS11S22GainP-1PsatNoise
GHzVSWRVSWRdBdBmdBmdB
0.81.221.0850.11-4.74-2.830.59
0.921.21.0851.27-3.38-1.880.52
1.041.161.0951.65-2.7-1.310.49
1.161.141.1151.79-2.26-0.90.56
1.291.141.151.91-1.84-0.70.59
1.411.181.0851.98-1.57-0.550.62
1.531.191.0852.04-1.38-0.40.63
1.651.221.0652.25-1.17-0.310.61
1.771.251.0552.42-0.93-0.220.56
1.891.281.0452.61-0.74-0.160.48
2.011.31.0452.87-0.79-0.190.53
2.141.321.0453.12-0.8-0.10.49
2.261.321.0453.49-0.6100.53
2.381.31.0453.82-0.640.150.57
2.51.271.0554.14-0.410.420.64

Reference picture

Configuration(mm)

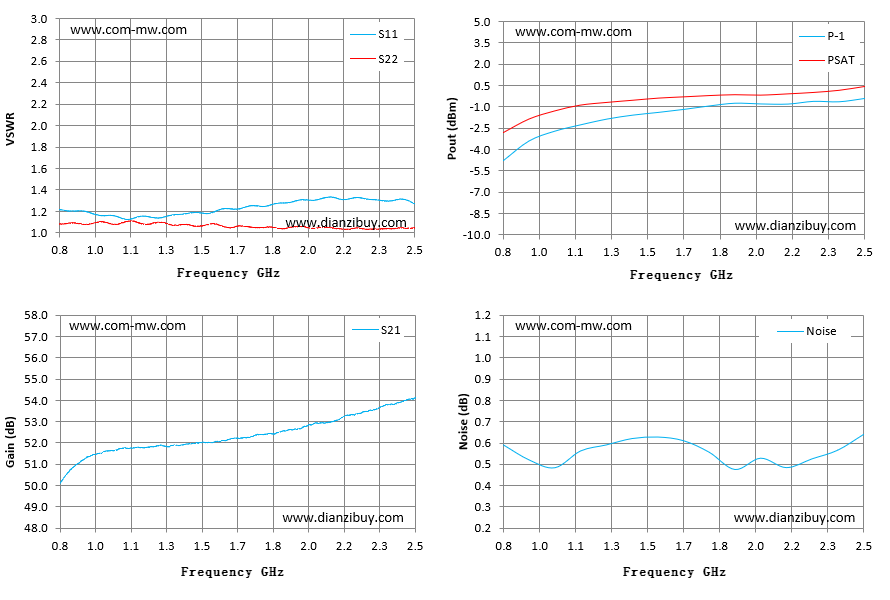

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
