LNA

26~40GHz, Gain15dB, Noise figure4dB, P-1dB10dBm, 2.92-KDetachable

  • DLNA3-26-40G-2134
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Main specifications

ParametersMinTypicalMaxUnits
Frequency26~40GHz
Gain15dB
Gain flatness± 0.5 (any 1.2GHz bandwidth)dB
Noise figure4dB
VSWR2
P-1dB10dBm
Max input power10dBm

Other parameters

Connector2.92-F detachable, Pin 0.3mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current100mA
Operation Temp.-40~+70℃ Design assurance
Storage Temp.-55~+85℃ Design assurance

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gainS21 NoiseS21 P-1dB
241.221.418.953.2515.2
25.291.071.5418.483.1214.4
26.571.251.5718.33.4915.4
27.861.61.4818.153.2115.8
29.141.771.4318.113.8115.3
30.431.91.4918.243.3816.1
31.711.621.318.663.5416
331.241.6718.593.3615.9
34.291.511.5818.823.5716.6
35.571.51.2919.123.7416.2
36.861.341.2519.453.5416
38.141.351.6119.73.4216.2
39.431.151.3819.923.1816.2
40.711.251.7319.463.3714.4
421.843.0318.913.5214.6

Reference picture

Configuration(mm)

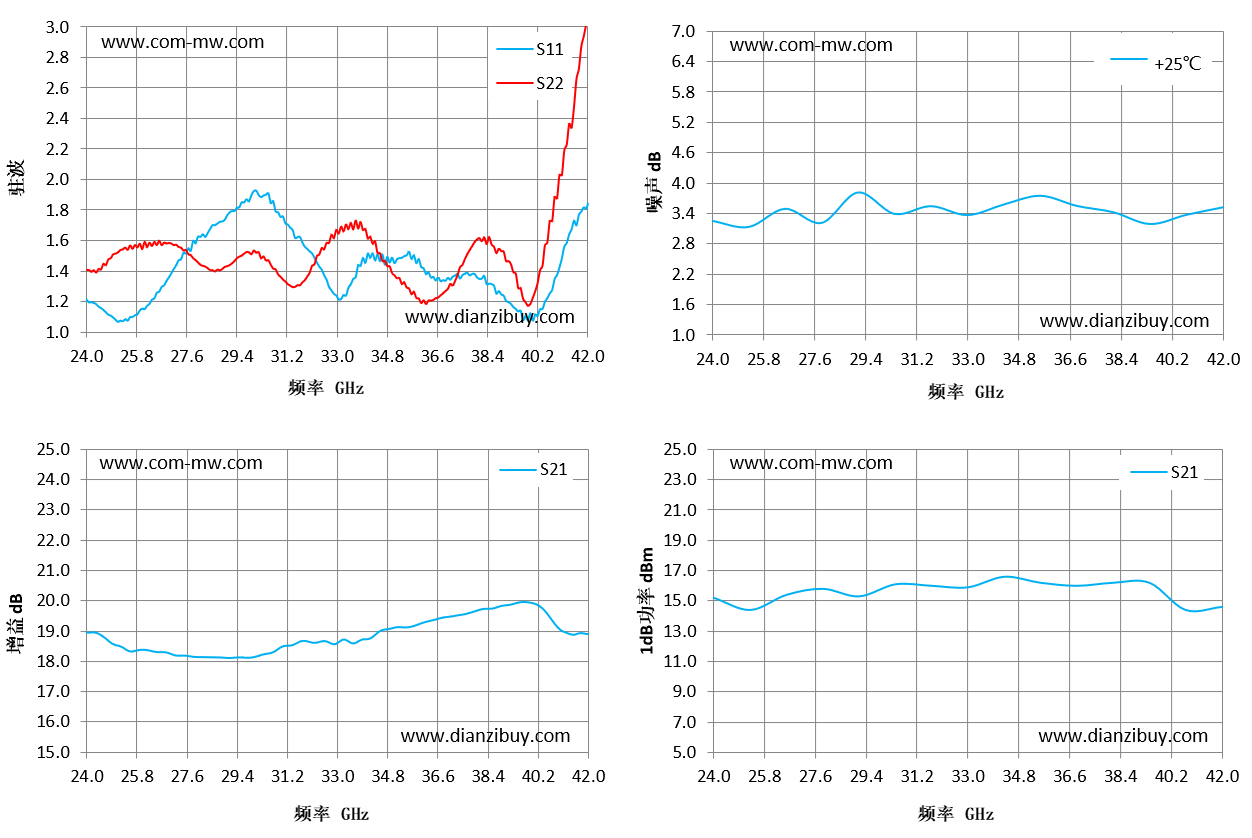

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
