Power amplifier
Frequency2~2.4GHz, Gain40dB, P-1dB output power33dBm, N
- DPA8-2-2.4G-3895
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 2.4 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1 | dB | ||
| Input VSWR | 1.5 | |||
| Output VSWR | 2 | |||
| Spur reduction | 60 | dBc | ||
| P-1dB output power | 33 | dBm |
Product Application
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Spray three proofing paint |
| Operation Temp. | +5~+45℃ Design assurance |
| other | 稳定度≤±1.5dB/天（设计保证） |
Instructions for use
| 1 | Power supply method | 220V电源供电 |
Parts list
| 1 | Optional | Equipped with a power adapter |

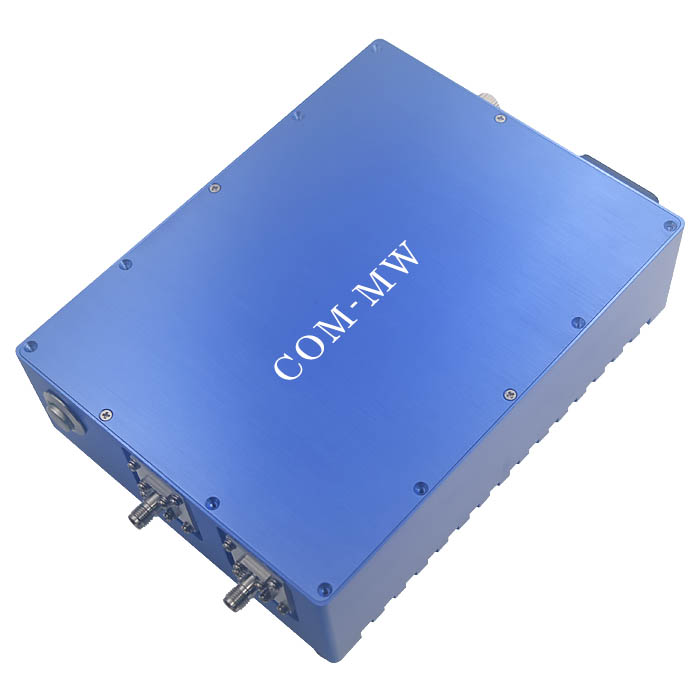

Reference picture

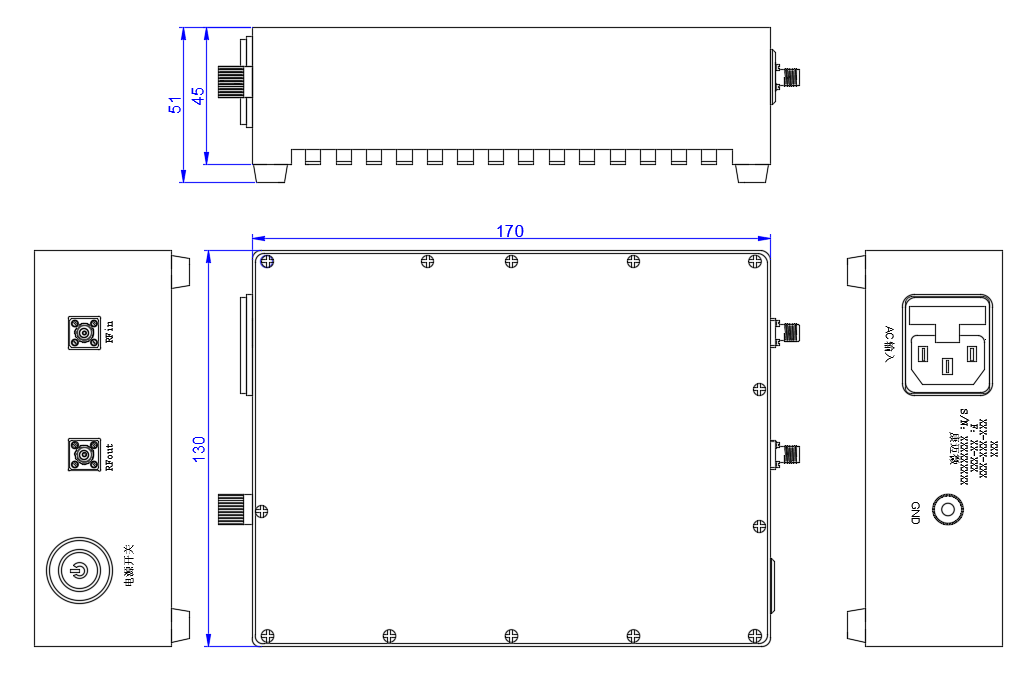

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
