Power amplifier
0.1~6000MHz, Gain30dB, Output power36dBm, SMA-F
- DPA8-0.1-6G-4050
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 0.1 | ~ | 6000 | MHz | |
| Gain | 30 | dB | Saturated gain | ||
| Flatness in band | ±5 | dB | |||
| Input VSWR | 2.2 | ||||
| Output power | 36 | 40 | dBm | ||
| Efficiency | 10 | 15 | 30 | % | |
| Harmonic Rejection | 5 | 10 | dBC | ||
| Spurious suppression | 55 | dBC | F0±400kHz | ||
| ACP | 50 | 57 | dBC |
Other parameters
| Connector | SMA-F |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 1A |
| Operation Temp. | -40~+65℃ Design assurance |
| Other | Suitable for saturated state operation, with non-linear gain |
接口定义（3.5mm-4p）
| No. | definition | Note |
| 1 | +28V | |
| 2 | GND | |
| 3 | EN | 0(OFF):0V（GND）;1(ON):+5V |
| 4 | NC | Suspended, can be used in conjunction with EN, high-level output |
Please power on in order when powering on;
Please follow the reverse order when cutting off power.
Typical test data
| F（GHz） | 0.1 | 1 | 1.8 | 2.6 | 3.4 | 4.2 | 5 | 6 |
| Pin（dBm) | 1.94 | 7.56 | 6.12 | 5.18 | 6.24 | 5.48 | 6.87 | 1.24 |
| Pout（SAT）（dBm） | 35.94 | 38.85 | 34.38 | 35.71 | 36.98 | 36.41 | 37.38 | 38.26 |
| Pout（SAT）（W） | 3.92 | 7.67 | 2.74 | 3.72 | 4.98 | 4.37 | 5.47 | 6.69 |
| Ids（A） | 0.63 | 0.95 | 0.73 | 0.70 | 1.07 | 0.92 | 0.89 | 0.79 |
| Gain（SAT）（dB） | 34.00 | 31.29 | 28.26 | 30.53 | 30.74 | 30.93 | 30.51 | 37.02 |
| ŋ（%） | 22.25 | 28.84 | 13.41 | 18.99 | 16.65 | 16.98 | 21.95 | 30.28 |
| 2次谐波抑制（dBC） | 8.70 | 11.90 | 5.60 | 10.34 | 22.70 | 14.60 | 11.90 | 20.66 |
| 3次谐波抑制（dBC） | 14.50 | 14.90 | 15.10 | 14.40 | 5.90 | 17.00 | 19.70 | 31.40 |
| 4th harmonic rejection (dBc) | 21.50 | 18.60 | 11.10 | 16.70 | 26.00 | 40.90 | 47.90 | 46.06 |
| 杂波抑制（dBC） | 52.30 | 56.50 | 55.00 | 59.40 | 63.80 | 63.00 | 65.00 | 58.10 |
| ACP（dBc） | 72.50 | 68.80 | 64.60 | 62.70 | 61.90 | 57.60 | 60.50 | 54.10 |

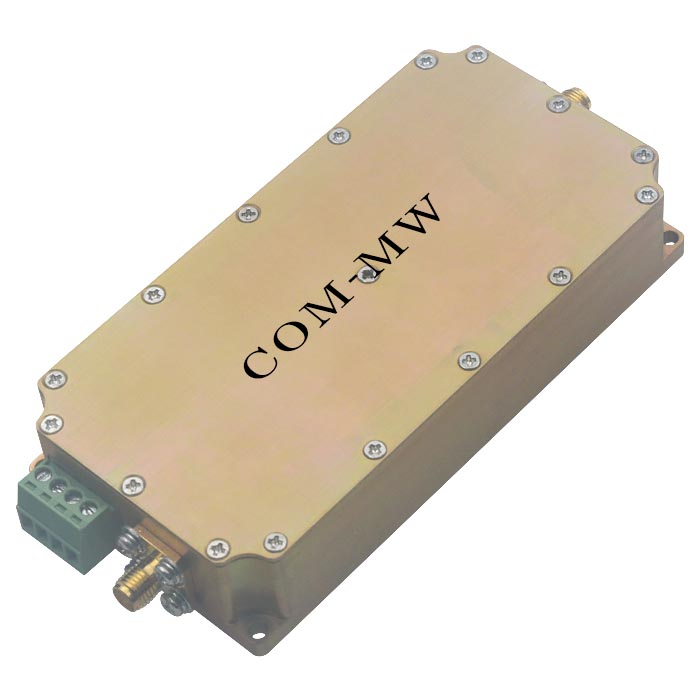

Reference picture

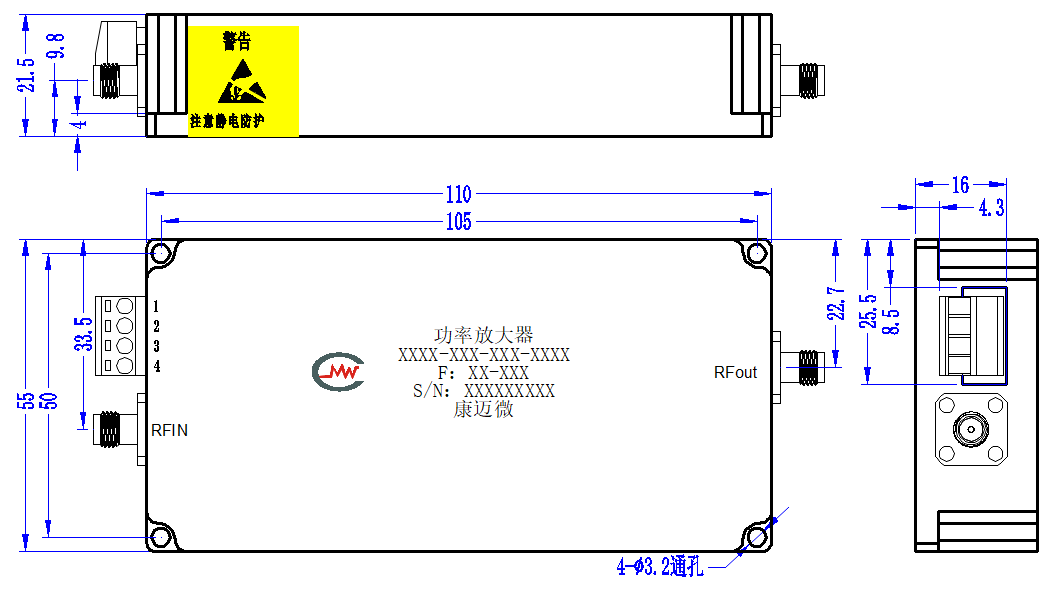

Outline structure diagram

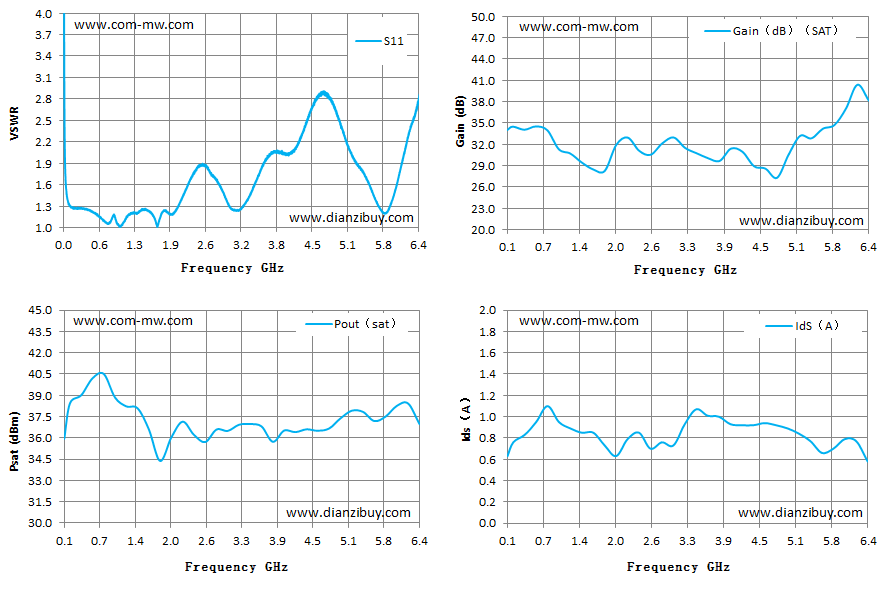

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
When powered on, it cannot be unloaded.
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
