LNA

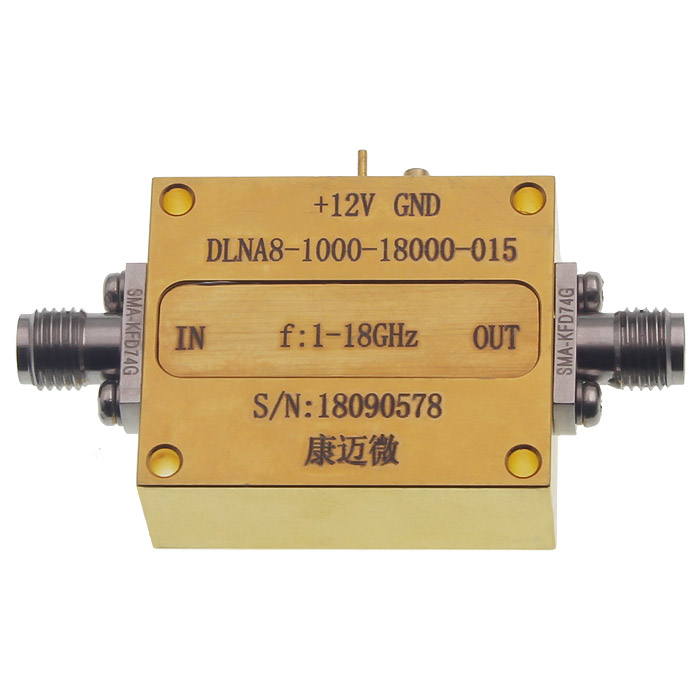

1~18GHz, Gain41dB, Noise figure2.5dB, P-1dB15dBm, SMA
- DLNA8-1000-18000-015
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 38 | 41 | dB | |
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 2.5 | 3.3 | dB | |
| VSWR | 1.8 | 2.5 | ||
| P-1dB | 10 | 15 | dBm |
Other parameters
| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 1 | 15.1 | 1.74 | 1.23 | 1.13 | 43.3 |
| 2 | 15.7 | 1.69 | 1.2 | 1.28 | 43.9 |
| 4 | 16.8 | 2.01 | 1.85 | 1.16 | 43.04 |
| 6 | 17.1 | 2.01 | 1.89 | 1.28 | 42.3 |
| 8 | 16.1 | 2.03 | 1.56 | 1.15 | 42.7 |
| 10 | 16.5 | 2.07 | 1.75 | 1.47 | 42.64 |
| 12 | 16 | 2.15 | 1.56 | 1.54 | 42.54 |
| 14 | 15.9 | 2.09 | 1.31 | 1.13 | 42.6 |
| 16 | 15.6 | 2.39 | 1.25 | 1.42 | 42.11 |
| 18 | 15.1 | 2.63 | 1.87 | 1.08 | 40.89 |
| 20 | 14.3 | 2.93 | 2.3 | 1.46 | 40.36 |
Reference picture
Configuration(mm)

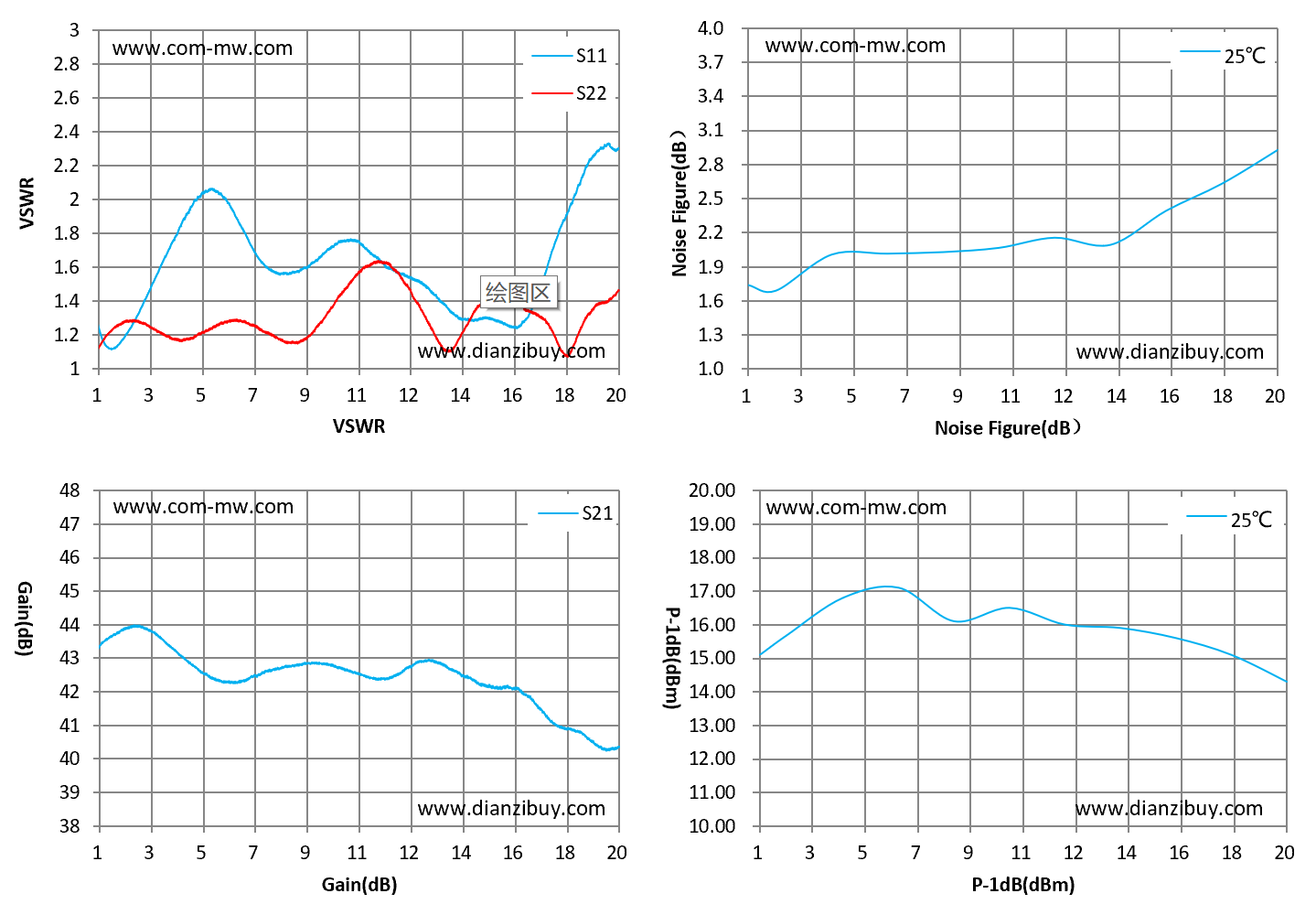

Typical test curve
Note
, When designing, consider the issue of amplifier heat dissipation.
