Power amplifier
1000~2000MHz, Gain39dB, Output power100W, Efficiency30%, SMA, N, SMA
- DPA8-1-2G-4044
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Narrowband, high power.
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 1000 | ~ | 2000 | MHz | |
| Gain | 39 | dB | Saturated gain | ||
| Flatness in band | ±3 | dB | |||
| Input VSWR | 2.5 | ||||
| Output power | 100 | W | CW signal | ||
| Efficiency | 30 | % | |||
| Harmonic Rejection | 7 | dBC | |||
| Spur reduction | 60 | dBC | |||
| ACP | 63 | dBc | |||
| Output coupling | 35 | dB |
Other parameters
| Input connector | SMA-K |
| Output port | N -K |
| Connector | SMA-K |
| Connector material | Gold-plating |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 15A |
| Operation Temp. | -40~+60℃ Design assurance |
Typical test data
| F（GHz） | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 |
| Pout（SAT）（dBm） | 48.18 | 51.15 | 50.41 | 52.07 | 50.53 | 52.22 | 50.04 |
| Pout（SAT）（W） | 65.76 | 130.31 | 109.90 | 161.06 | 112.97 | 166.72 | 100.92 |
| Ids（A） | 7.94 | 12.80 | 12.36 | 13.40 | 12.40 | 11.70 | 8.00 |
| Gain（SAT）（dB） | 35.48 | 39.82 | 41.03 | 41.67 | 39.71 | 39.62 | 40.84 |
| ŋ（%） | 29.58 | 36.36 | 31.75 | 42.92 | 32.54 | 50.89 | 45.05 |
| 2nd harmonic rejection (dBc) | 9.00 | 8.50 | 14.30 | 25.30 | 38.90 | 24.20 | 22.30 |
| 3rd harmonic rejection (dBc) | 25.70 | 32.00 | 23.60 | 24.50 | 42.80 | 35.70 | 32.70 |
| 4th harmonic rejection (dBc) | 45.90 | 31.10 | 42.90 | 32.00 | 38.00 | 40.20 | 34.50 |
| 杂散抑制（dBC） | 67.80 | 64.20 | 63.20 | 68.30 | 70.00 | 69.80 | 66.60 |
| ACP（dBc） | 71.80 | 69.40 | 69.60 | 66.90 | 67.50 | 65.70 | 63.90 |
| 耦合度（dB） | 70 | 70 | 70 | 60 | 60 | 44 | 43 |

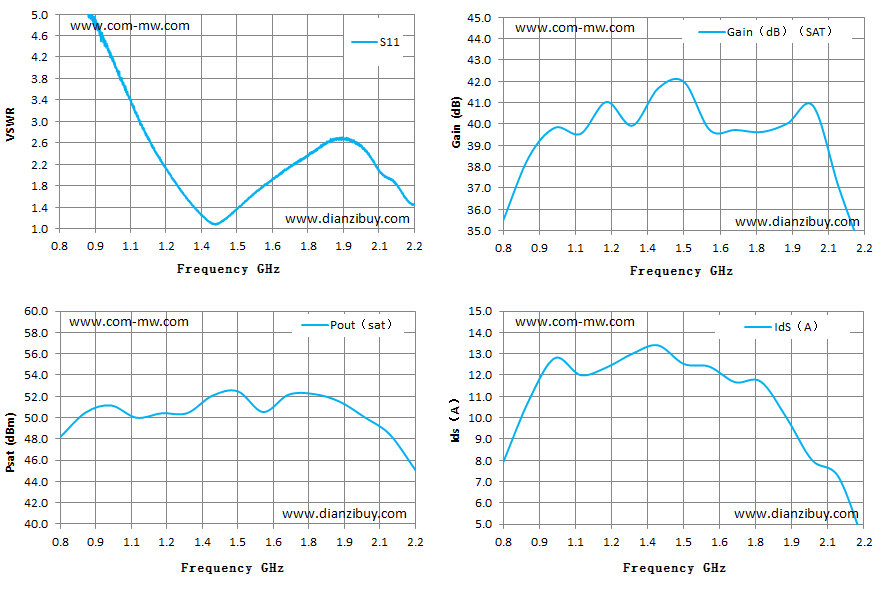

Typical test curve

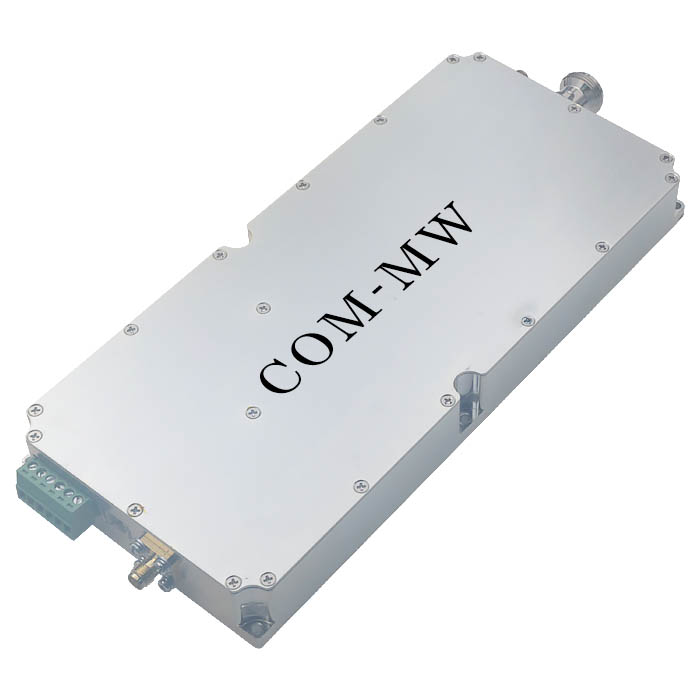

Reference picture

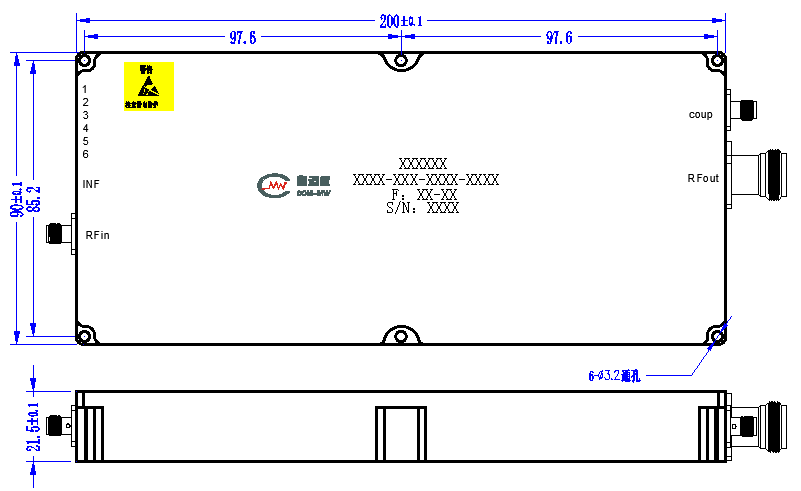

Configuration
Port Definition
控制接口（3.5mm-6p，单排）
| No. | definition | Note |
| 1 | +28V | Suggest using multi-core copper wire with an area of 1-1.5 square millimeters |
| 2 | +28V | 必须连两根线 |
| 3 | GND | |
| 4 | GND | |
| 5 | EN | Enable, 0V=off; 5V=on; Do not connect, default off |
| 6 | NC |
INF（PHD2.0mm-6P）
| No. | definition | Note |
| 1 | Reflection indication | |
| 2 | Positive indication | |
| 3 | NC | |
| 4 | Current indication | |
| 5 | GND | |
| 6 | Temperature indication |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
