Waveguide Connection

Frequency325~500GHz, Rect waveguider

  • DWG8-WR-2C36.5-2561
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, low loss.

Main specifications

ParametersMinTypicalMaxUnits
Frequency325~500GHz
IL1dB
VSWR1.3

Other parameters

Power10W Design assurance
Waveguide modelRect waveguider
Connector 1WR-2
Connector 2WR-2
Flange modelFUGP
SurfaceGold-plating
Product shell materialCopper
Work Temp.-55~+85℃ Design assurance
Storage Temp.-55~+125℃ Design assurance

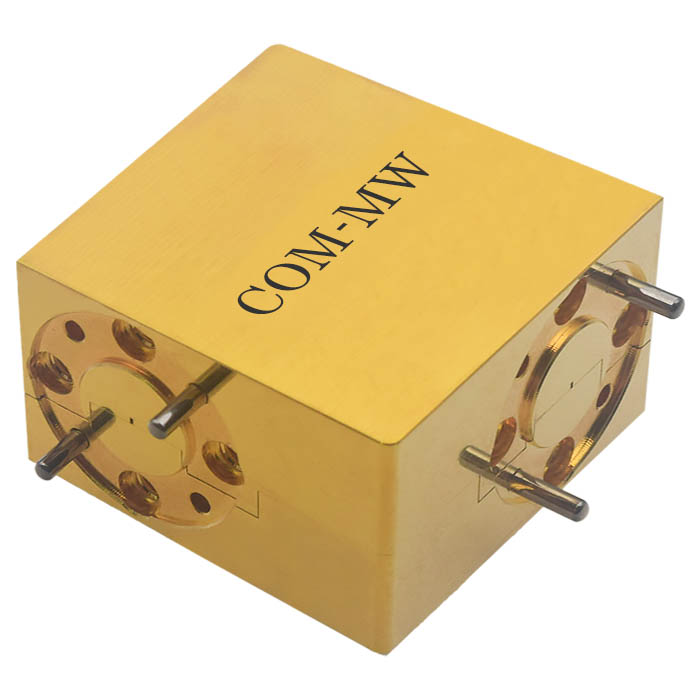

Reference picture

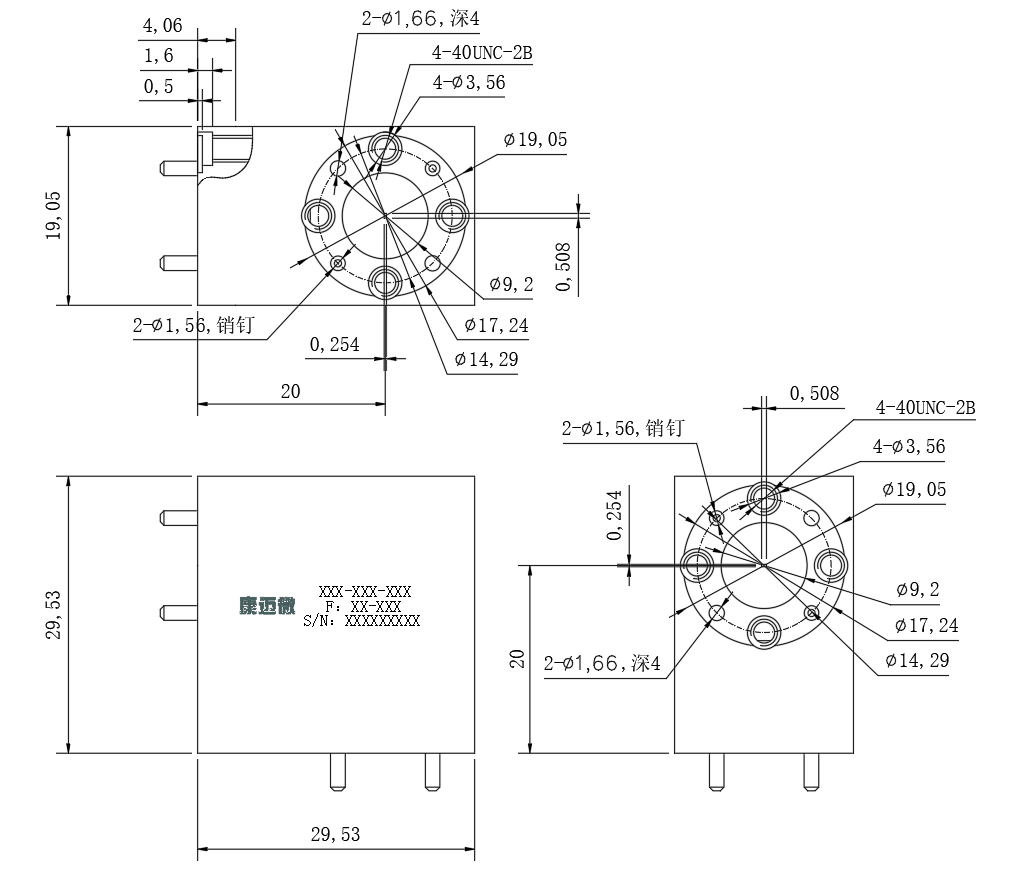

Configuration(mm)
